Main Parameters：
|
Rated Working Voltage |
230/400VAC |
|
Max.Rated Working Current |
125A |
|
Case Material |
Movable door: Ivory |
|
The movable door adopts high-quality cold-rolled steel plate material. |
|
|
The bottom box is made of cold-rolled steel plate, and the edges are bent. The surface is treated with electrostatic spray, which is strong and durable and has excellent corrosion resistance. |
|
|
Installation and Wiring |
There are knockout holes on the top and bottom for easy access of wires. |
|
There is a distance between the bottom box and the guide rail to meet the customer's wiring needs. |
|
|
Standard |
GB/T 17466.1, GB/T 17466.24 |
|
Protection Grade |
Ip30 |

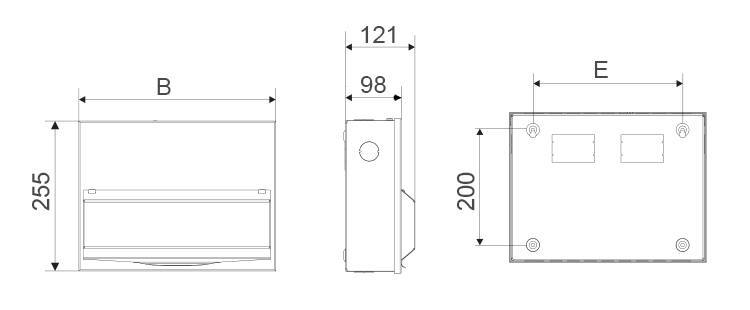

Outline Overall and Installation Dimensions (mm)：
|
Product model |
Ways |
B |
E |
|
AOX-7MT |
7P |
188 |
138 |
|
AOX-10MT |
10P |
241 |
160 |
|
AOX-13MT |
13P |
292 |
210 |
|
AOX-16MT |
16P |
343 |
260.4 |
|
AOX-21MT |
21P |
438 |
356 |
