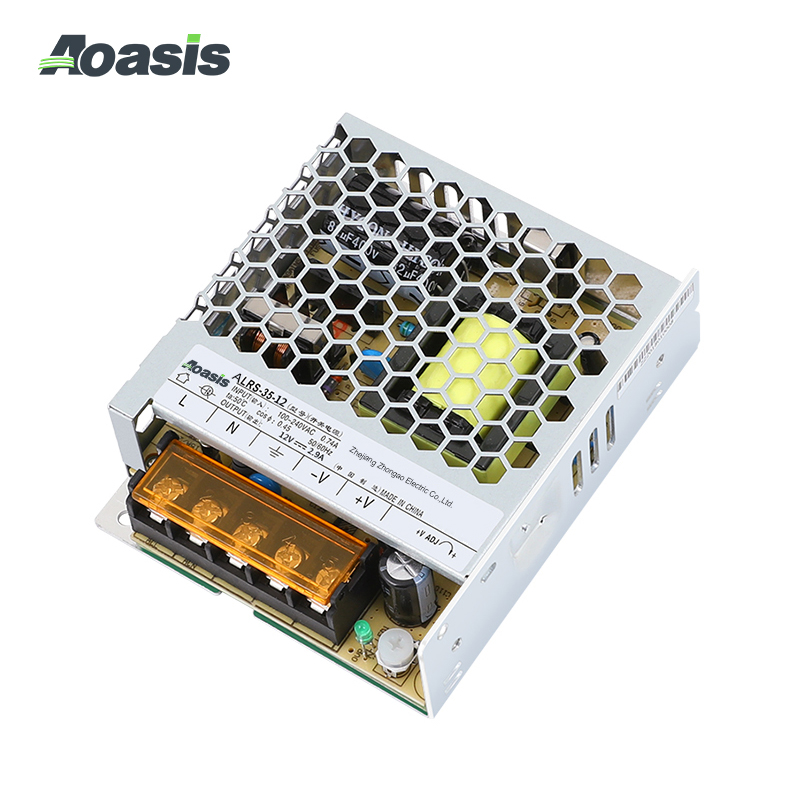

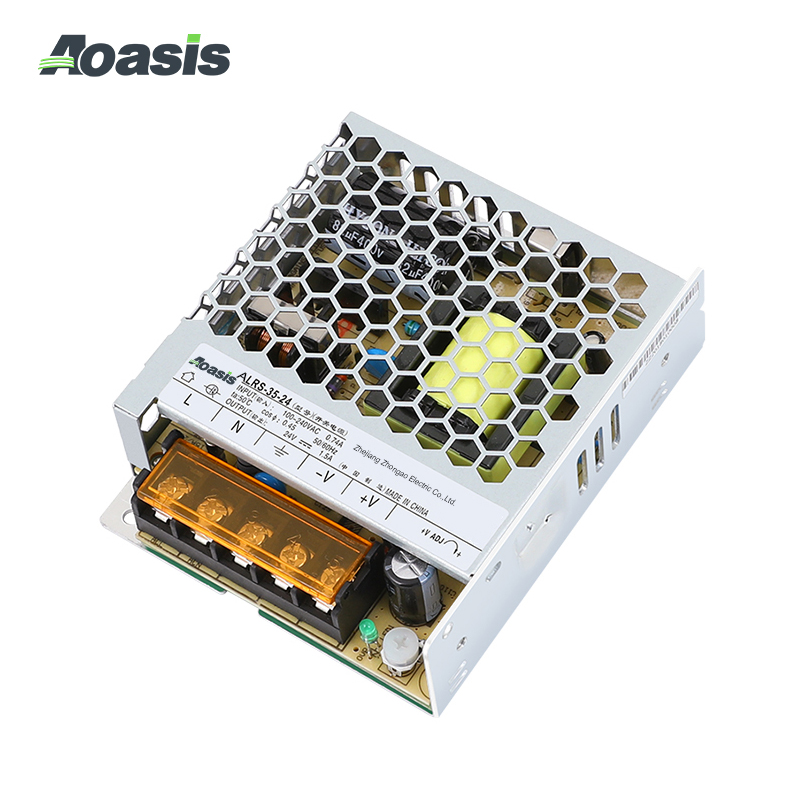

| Product model | ALRS-35 | ALRS-50 | |
| Meet a criterion | TUVEN60950，EN61558-1/-2-16，UL60950-1，GB4943 | ||
| Output | DC voltage (V) |
5V、12V、24V、36V、48V |
5V、12V、24V、36V、48V |
| Rated current (A) | 7A、3A、1.5A、1A、0.8A | 10A、4.2A、2.2A、1.45A、1.1A | |
| Rated power (W) | 35W、36W、36W、36W、38.4W | 50W、50.4W、52.8W、52.2W、52.8W | |
| Ripple and noise | 80mVp-p、120mVp-p、150mVp-p、200mVp-p、200mVp-p | ||
|
Ripple swept noise |
±10% | ||
| Voltage accuracy | 5V ±2.0% 12~48V ±1.0% | ||
| Linear adjustment rate | 5V ±2.0% 12~48V ±0.5% | ||
| Load regulation rate | 5V ±1.0% 12~48V ±0.5% | ||
| Start up time | 1000ms、30ms/230VAC 2000ms、30ms/115VAC | ||
| Keep time | 30ms/230VAC 12ms/115VAC | ||
| Import | Voltage range/frequency | 85-264VAC 120-373VDC/47Hz~63Hz | |
| Efficiency (typical) | 82% 86% 88% 88% 89% | ||
| Working current | 0.7A/115VAC 0.42A/230VAC | 0.95A/115VAC 0.56A/230VAC | |
| Shock current |
45A/230VAC |
||
| Leakage current | <0.75mA 240VAC | ||
| Protect | Overload protection | ≥110%-130% | |
| Overvoltage protection |
≥115%-145% |
||
| Environment | Working temperature and humidity | -30℃~+70℃; 20%~90RH | |
| Storage temperature and humidity | -40℃~+85℃; 10%~95RH | ||
| Safety standard | Pressure resistance |
Input-output:4KVAC Input-output(enclosure):2KVAC/1.25KVAC |
|
| Insulation impedance | Input-output(enclosure):500VDC/100MΩ | ||
|
Else |
Size | 98*82*30mm(L*W*H) | |
| Net weight/Gross weight | 230g/246g | ||
