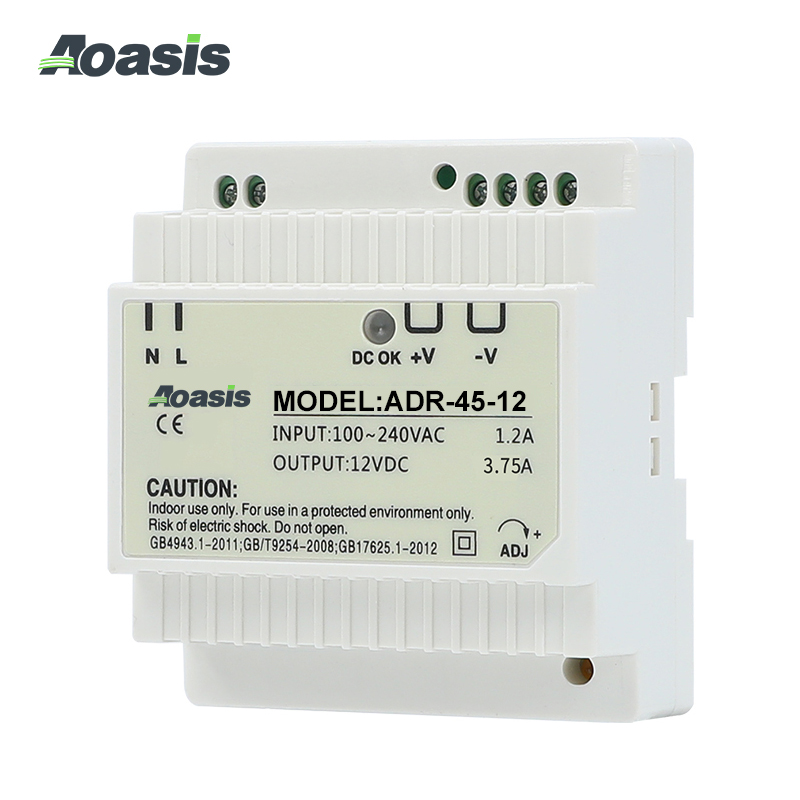

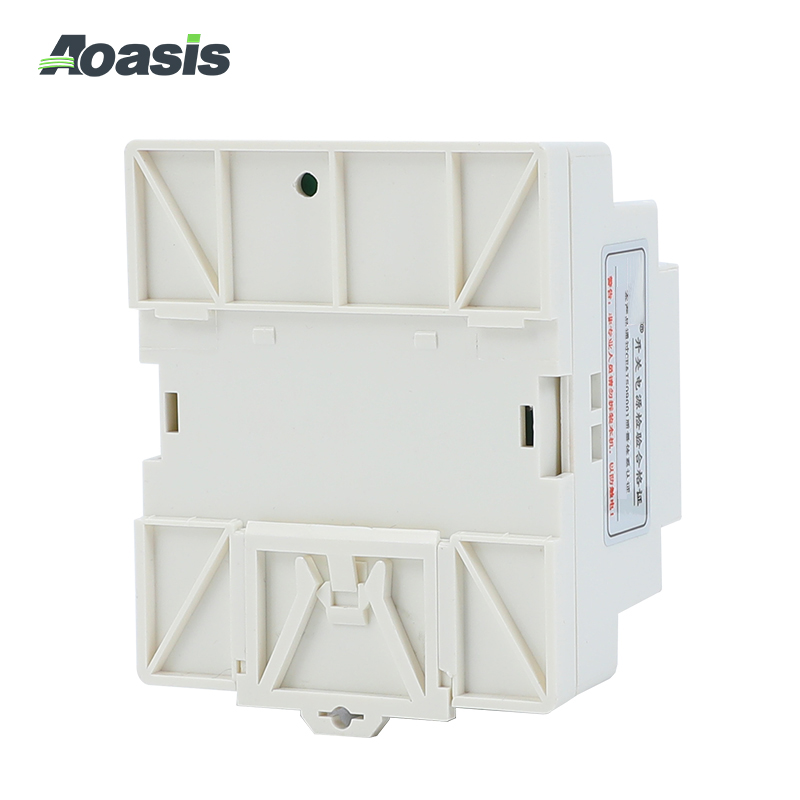

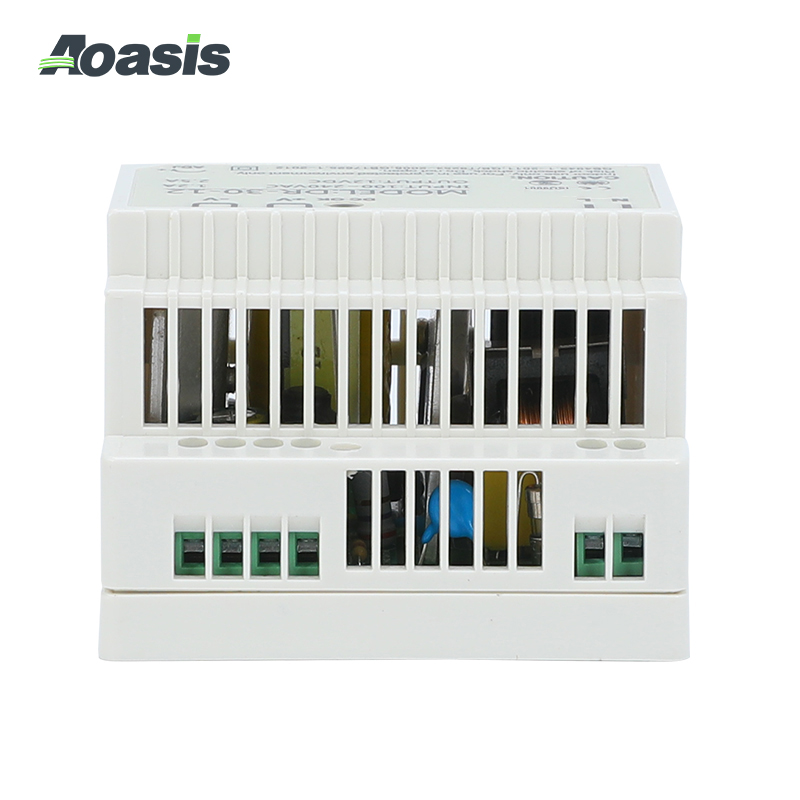

| Product model | ADR-30 | ADR-45 | ADR-60 | |
| Meet a criterion | TUVEN60950，EN61558-1/-2-16，UL60950-1，GB4943 | |||
| Output | DC voltage (V) |
5V、12V、15V、24V |
||
| Rated current (A) | 3A、2A、2A、1.5A | 5A、3.5A、2.8A、2A | 6.5A、4.5A、4A、2.5A | |
| Rated power (W) | 15W、24W、30W、36W | 25W、42W、42W、48W | 32.5W、54W、60W、60W | |
| Ripple and noise | <80mV、<120mV、<120mV、<150mV | |||
|
Ripple swept noise |
±10% | |||
| Voltage accuracy | 5V ±2% 12V~24V ±1% | |||
| Linear adjustment rate | <±1% | |||
| Load regulation rate | ±1% | |||
| Start up time | 100ms、30ms:110VAC 100ms、30ms:220VAC | |||
| Keep time | 21ms:110VAC 100ms:220VAC | |||
| Import | Voltage range/frequency | 85-264VAC 47Hz~63Hz（120VDC~370VDC） | ||
| Efficiency (typical) | >78%、81%、83%、84% | |||
| Working current | <0.8A 110VAC <0.4A 220VAC | <0.8A 110VAC <0.4A 220VAC | <1.2A 110VAC <0.8A 220VAC | |
| Shock current |
110VAC 18A 220VAC 36A |
|||
| Leakage current | 1.5KVAC时 <5mA 220KVAC时 <1mA | |||
| Protect | Overload protection | ≥105%-150% | ||
| Overvoltage protection |
+VO down to the undervoltage point to close the output |
|||
| Environment | Working temperature and humidity | -10℃~+50℃;20%~90RH | ||
| Storage temperature and humidity | -20℃~+85℃;10%~95RH | |||
| Safety standard | Pressure resistance |
Input-output:3KVAC |
||
| Insulation impedance | Input-output(enclosure):500VDC/100MΩ | |||
|
Else |
Size | 79*93*56mm(L*W*H) | ||
| Net weight/Gross weight | 270g/290g | |||
