Type and Signification:
Technical Parameters:
|
Type |
Number |
Setting range(A) |
For contactor |
|
LR9-F□□ |
5357 |
30-50 |
CJX2-F115-185 |
|
5363 |
40-80 |
CJX2-F115-185 |
|
|
5367 |
60-100 |
CJX2-F115-185 |
|
|
5369 |
90-150 |
CJX2-F115-185 |
|
|
5371 |
132-220 |
CJX2-F225-265 |
|
|
LR9-F□□ |
7375 |
200-330 |
CJX2-F225-500 |
|
7379 |
300-500 |
CJX2-F225-500 |
|
|
7381 |
380-630 |
CJX2-F225-630 |

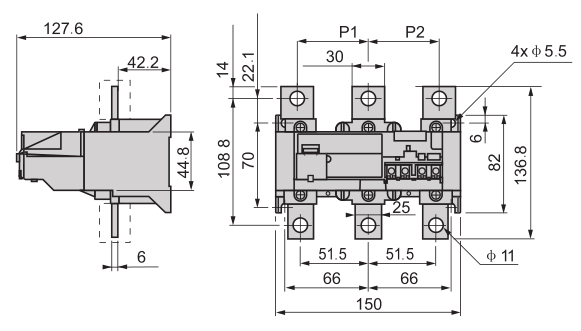

Dimensions(mm):
LR9-F5371
LR9-F5357/F5363/F5367/F5369
LR9-F7375/F7379/F7381
LR9-F7381(CJX2-F630/F800)
