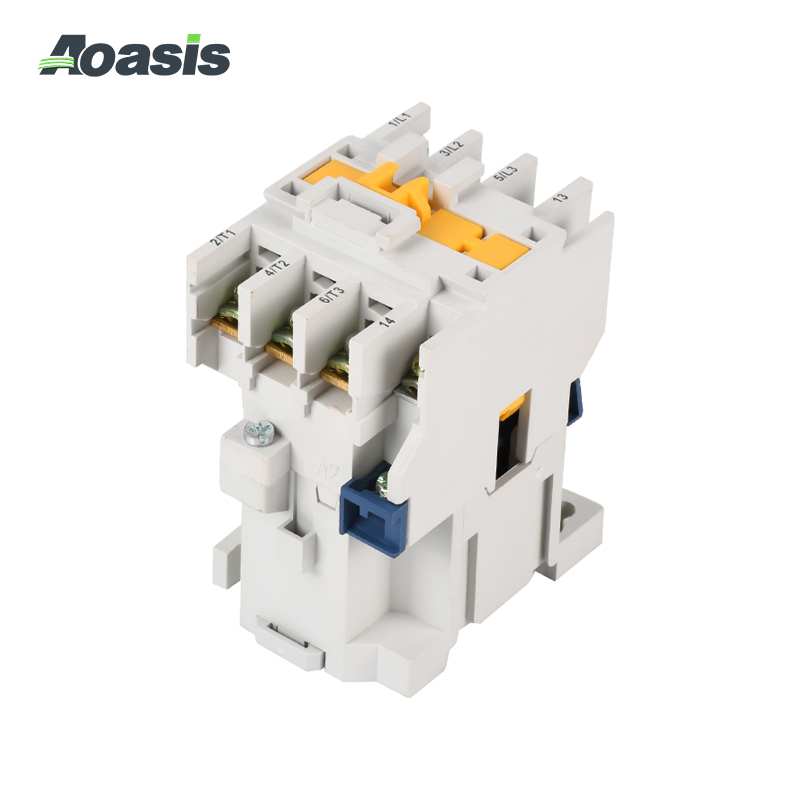

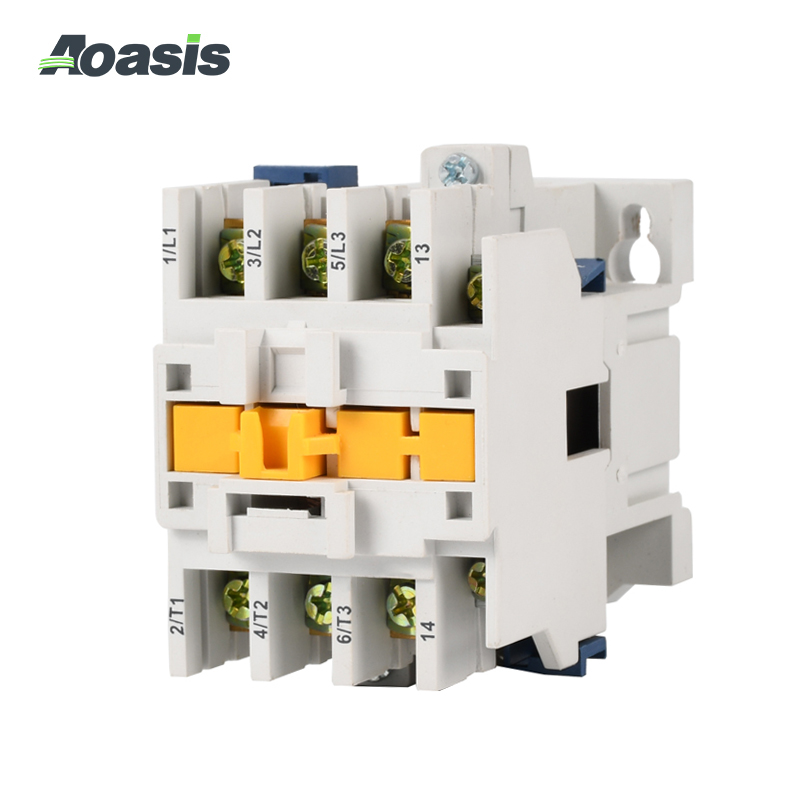

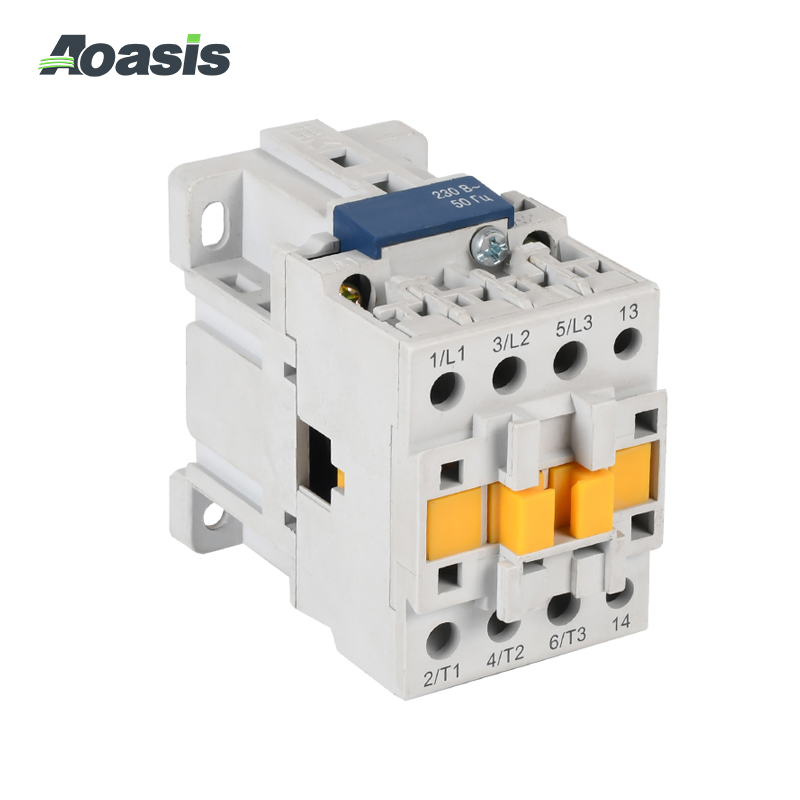

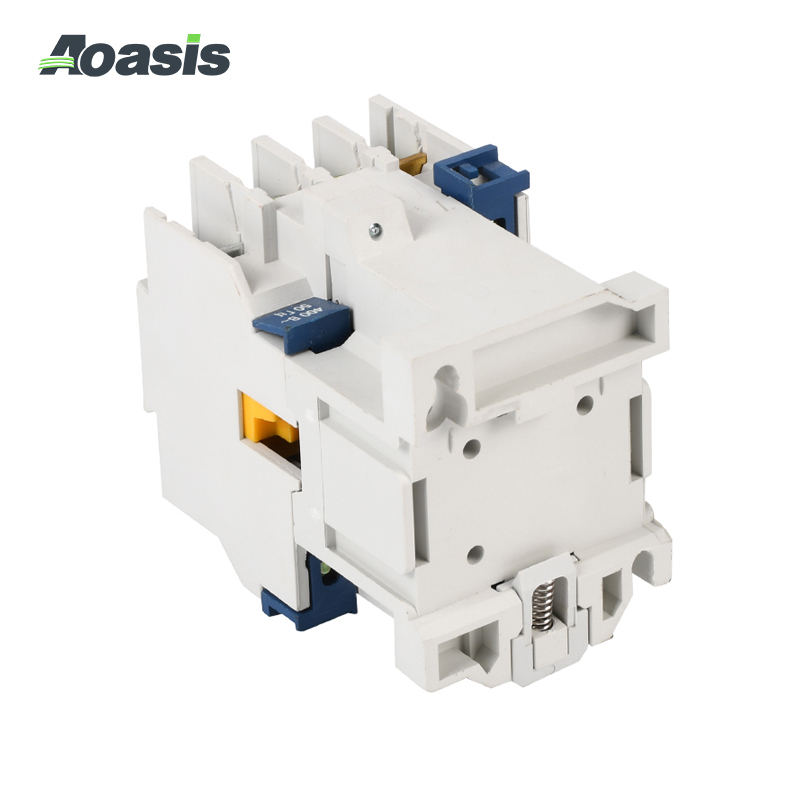

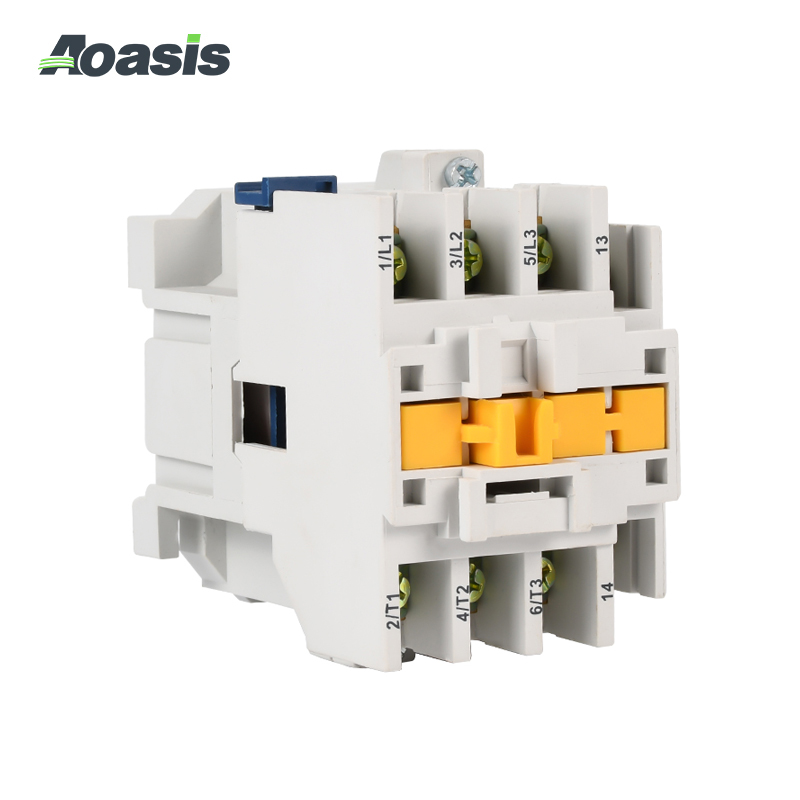

Main Technical Parameter：
|
Type |
PM12-10 |
PM12-16 |
PM12-25 |
PM12-40 |
PM12-63 |
|
|
Main Circuit |
||||||
|
Pole |
3P |
|||||
|
Rated Insulated Voltage(V) (Ui) |
660 |
|||||
|
Rated operating Voltage(V) (Ue) |
230、400、660 |
|||||
|
Stipulated Heating Current(A) (Ith) |
25 |
32 |
40 |
60 |
80 |
|
|
Rated Working Current(A) AC-3 |
10 |
16 |
25 |
40 |
63 |
|
|
Mechanical Life (10 thousand times) |
500 |
500 |
500 |
500 |
500 |
|
|
Electrical Life (10 thousand times) |
50 |
50 |
50 |
50 |
50 |
|
|
Operational Frequency(times/hour) AC-3 |
1200 |
|||||
|
Coil |
||||||
|
Rated Control Circuit Voltage (Us) V |
110、230、400 | |||||
|
Allowed Control Circuit Voltage (Us) |
Operation |
80%~110% Us | ||||
|
Release OFF |
30%~60% Us |
|||||
|
Build Auxiliary Contacts |
||||||
|
Rated Voltage (Un) V
|
660 | |||||
|
Rated Insulating Voltage (Ui) V
|
660 | |||||
|
Conventional themal Current (Ith) A |
10 | |||||
|
Min Making Capactity |
Umin A | 24 | ||||
| Imin mA | 10 | |||||
|
Overcurrent Protection A |
10 | |||||
|
Max Short-time Load (t<1sec) A |
100 | |||||
|
Insulating Resistance,mage ohm |
10 | |||||
|
Connection Capacity of Wiring Terminal |
||||||
|
Gross-section |
Min m㎡ |
1.0 |
1.5 | 2.5 | 4 | 6 |
|
Max m㎡ |
2.5 |
4.0 | 6.0 | 16 | 25 | |
|
Tightening Torque N·m |
0.5 |
1.2 | 1.2 | 2.5 | 3.5 | |
|
Pulling Force |
Min N |
35 |
40 | 50 | 60 | 80 |
|
Max N |
50 |
60 | 80 | 100 | 135 | |

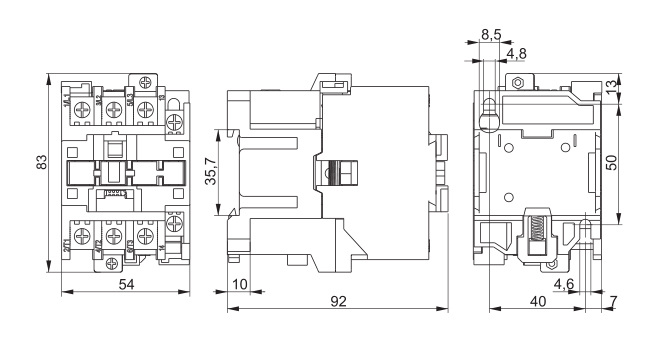

Dimensions(mm):
 |
|
PM12-25 |
