Caracteristicas

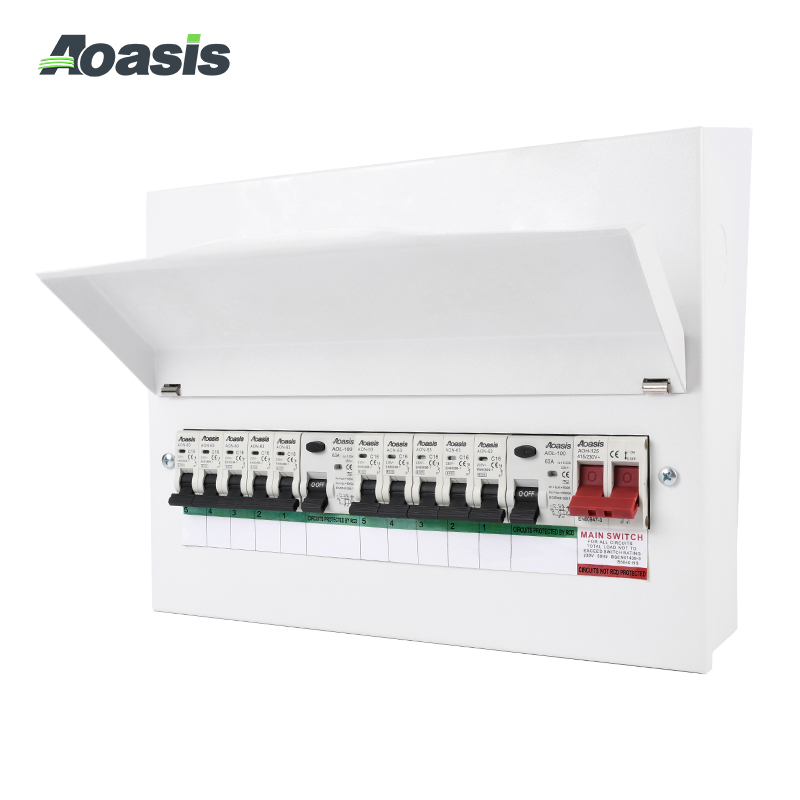

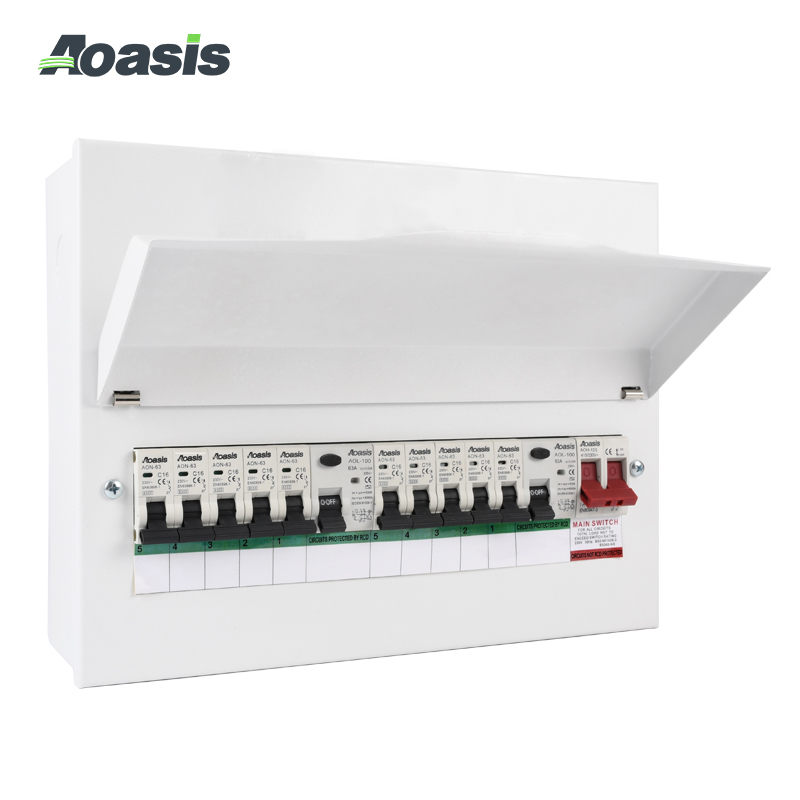

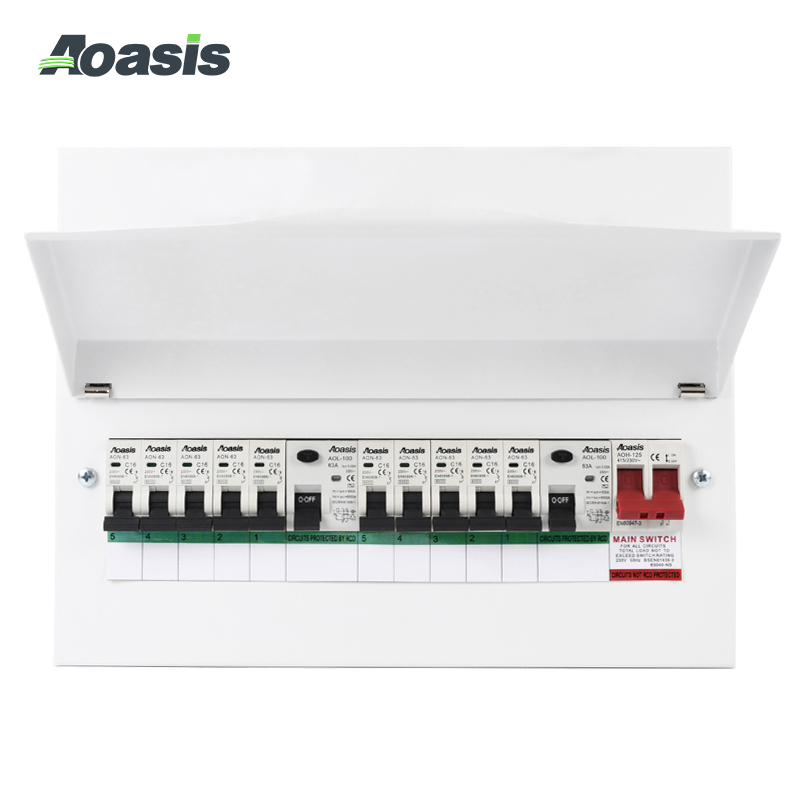

AOX Series Distribution Box is suitable for residences, apartments, villas, hotels, commercial buildings and other places. Used in conjunction with Aoasis modular low-voltage power distribution products, it provides real estate developers, electrical switchgear manufacturers, and end users with a safe, stable and complete indoor low-voltage terminal power distribution solution.

Consulta

Detalles de producto

Main Parameters：

Rated Working Voltage

230/400VAC

Max.Rated Working Current

125A

Case Material

Movable door: Ivory

The movable door adopts high-quality cold-rolled steel plate material.

The bottom box is made of cold-rolled steel plate, and the edges are bent. The surface is treated with electrostatic spray, which is strong and durable and has excellent corrosion resistance.

Installation and Wiring

There are knockout holes on the top and bottom for easy access of wires.

There is a distance between the bottom box and the guide rail to meet the customer's wiring needs.

Standard

GB/T 17466.1, GB/T 17466.24

Protection Grade

Ip30

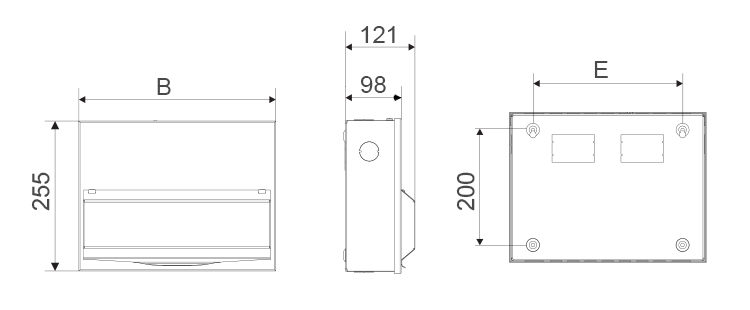

Outline Overall and Installation Dimensions (mm)：

Product model

Ways

B

E

AOX-7MT

7P

188

138

AOX-10MT

10P

241

160

AOX-13MT

13P

292

210

AOX-16MT

16P

343

260.4

AOX-21MT

21P

438

356
