AOX3-8MP

Waterproof Distribution Box

Caracteristicas

AOX3 Series Distribution Box is suitable for residences, apartments, villas, hotels,commercial buildings and other places.
Used in conjunction with Aoasis modular low-voltage power distribution products,it provides real estate developers,electrical switchgear manufacturers,and end users with a safe, stable and complete indoor low-voltage terminal power distribution solution.

Consulta

Detalles de producto

Video

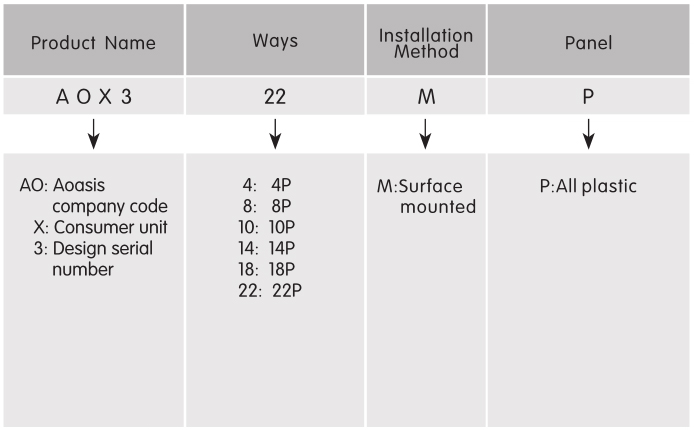

Product Selection:

Note:The width is multiple of 18mm, 1-digit width is 18mm.


Main Parameter:

Rated Working Voltage

230/400VAC

Max.Rated Working Current

125A

Case Material

Movable door: Translucence

The movable door is made of high quality PC material.

The bottom box is made of ABS flame retardant material with V-0 flame retardant grade.

Installation and Wiring

There are knockout holes on the top and bottom for easy access of wires.

There is a distance between the bottom box and the guide rail to meet the customer's wiring needs.

For easy and accurate installation, the guide rail can be fine-tuned in the vertical direction, and also can be fine-tuned up and down.

Standard

GB/T 17466.1,GB/T 17466.24

Protection Grade

Ip30

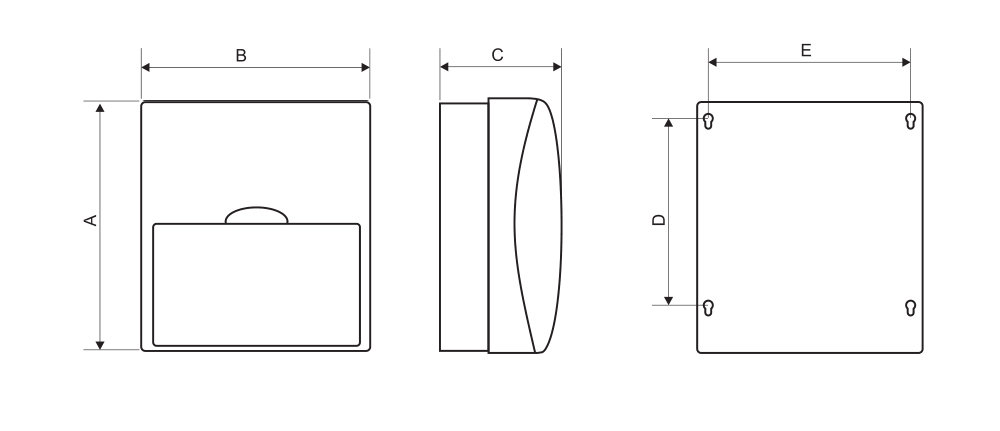

Outline Overall andInstallation Dimensions(mm):

Type

Ways

A

B

C

D

E

AOX3-4MP

4P

245

148.5

120

-

-

AOX3-8MP

8P

245

221.5

120

-

-

AOX3-10MP

10P

245

256.5

120

-



AOX3-14MP

14P

245

330.5

120

-

-

AOX3-18MP

18P

245

400.5

120

-

-

AOX3-22MP

22P

245

471.5

120

-

-
