2 RCD is given priority to switch the consumer units

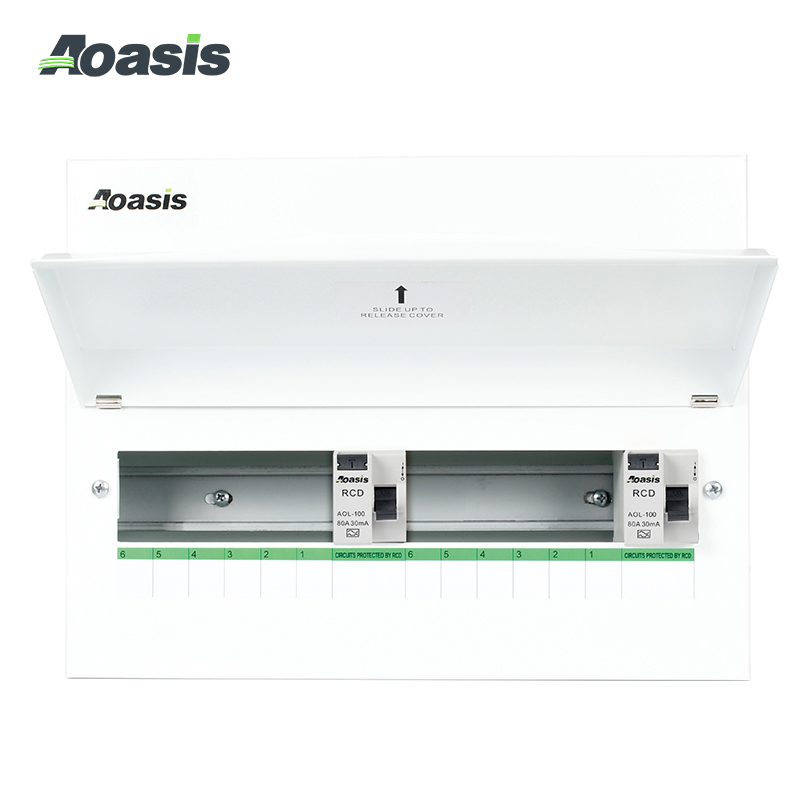

AOX1-□M/LR-2

Characteristics

AOX1-M Consumer Unit is suitable for residences, apartments,villas, hotels, commercial buildings and other places.
Used in conjunction with Aoasis modular low-voltage power distribution products, it provides a safe, stable and complete indoor low-voltage terminalpower distribution solution for the real estate developers, electrical switchgear manufacturers, and end users.

Inquiry

Product Details

Product Selection：

Technical Parameters：

Product Model

Main Switch Configuration

Available Loop Element

Residual Current Device

Quantity

AOX1-07M/LR-2

AOLR-100 80A 30mA

2

3

AOX1-10M/LR-2

AOLR-100 80A 30mA

2

6

AOX1-13M/LR-2

AOLR-100 80A 30mA

2

9

AOX1-16M/LR-2

AOLR-100 80A 30mA

2

12

AOX1-21M/LR-2

AOLR-100 80A 30mA

2

17


Optional matching line protection products:

Product Name

Product Model

Current Specifications

Miniature Switch Disconnecter (MSD)

AOH-125
 80A、100A、125A

Residual Current Device (RCD)

AOLR-100

32A、40A、63A、80A、100

Miniature Circuit Breaker (MCB)

AON1-63(6kA)

2A、4A、6A、10A、16A、20A、25A、32A、40A、50A、63A

Surge Protection Device (SPD)

AOUE2 20R 2P 275V

Max. Discharge Current:40KA

Max. Permissible Strength of Backup Fuse:125A gL/gG


Outline Overall and Installation Dimensions (mm)：

AOX1-04M

AOX1-07~21M

Product Model

Circuit Unit

Width（B）

Mounting Dimension（E）

AOX1-07M

7P

188

138

AOX1-10M

10P

241

160

AOX1-13M

13P

292

210

AOX1-16M

16P

343

260.4

AOX1-21M

21P

438

356
