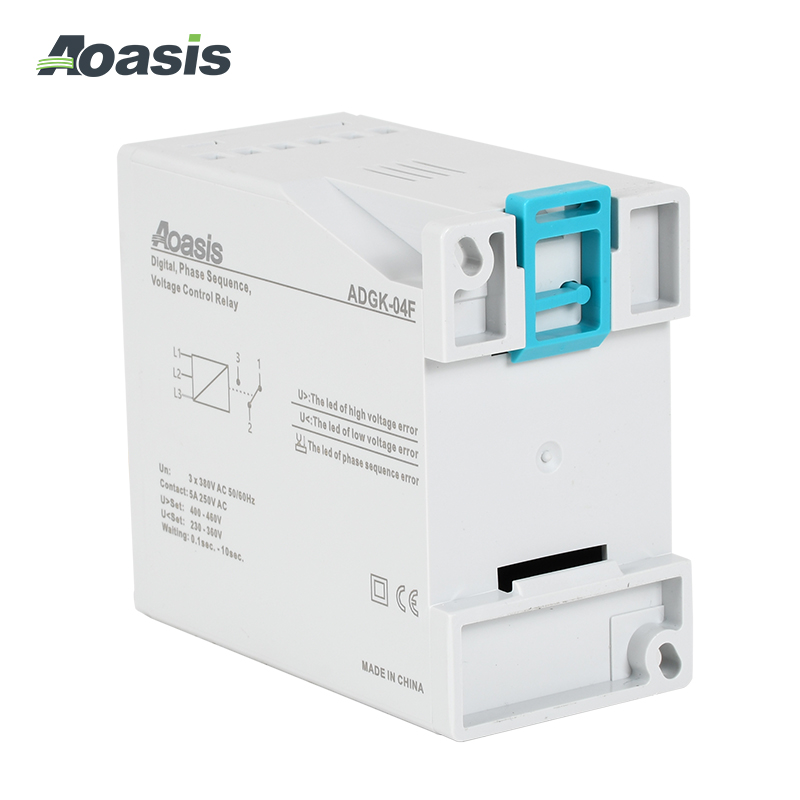

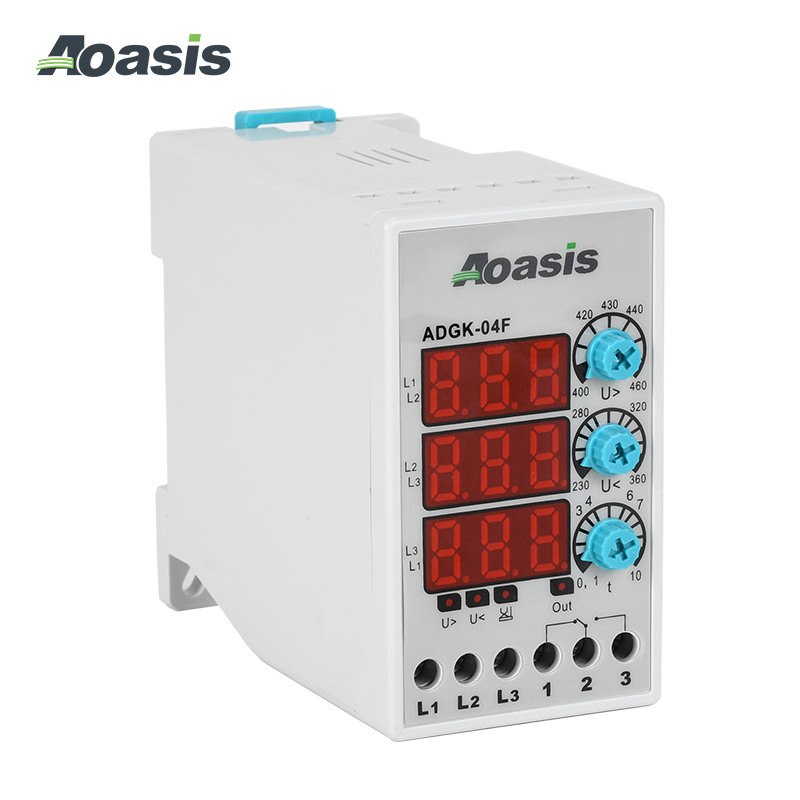

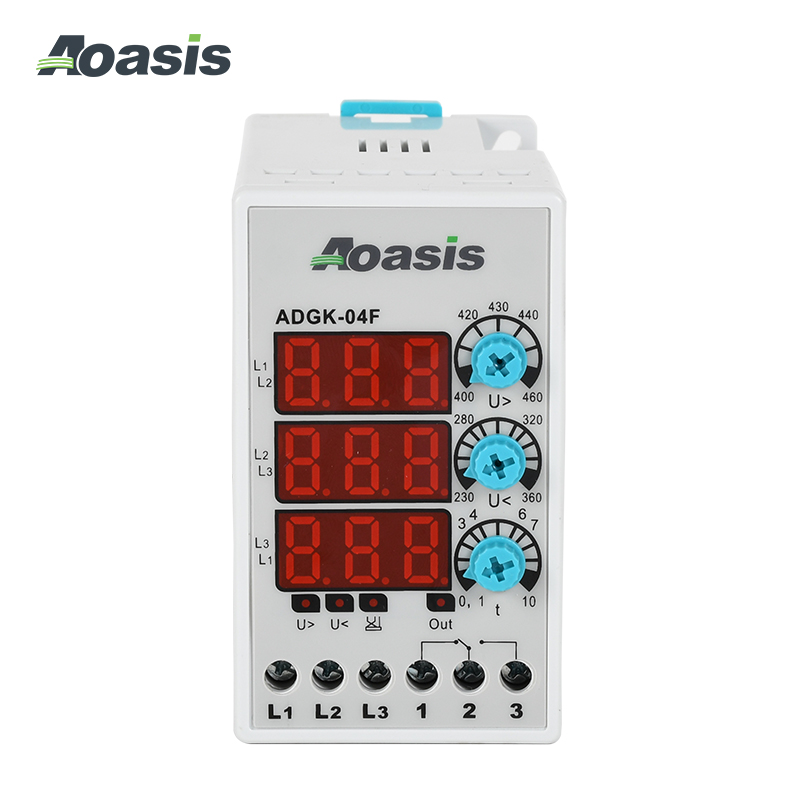

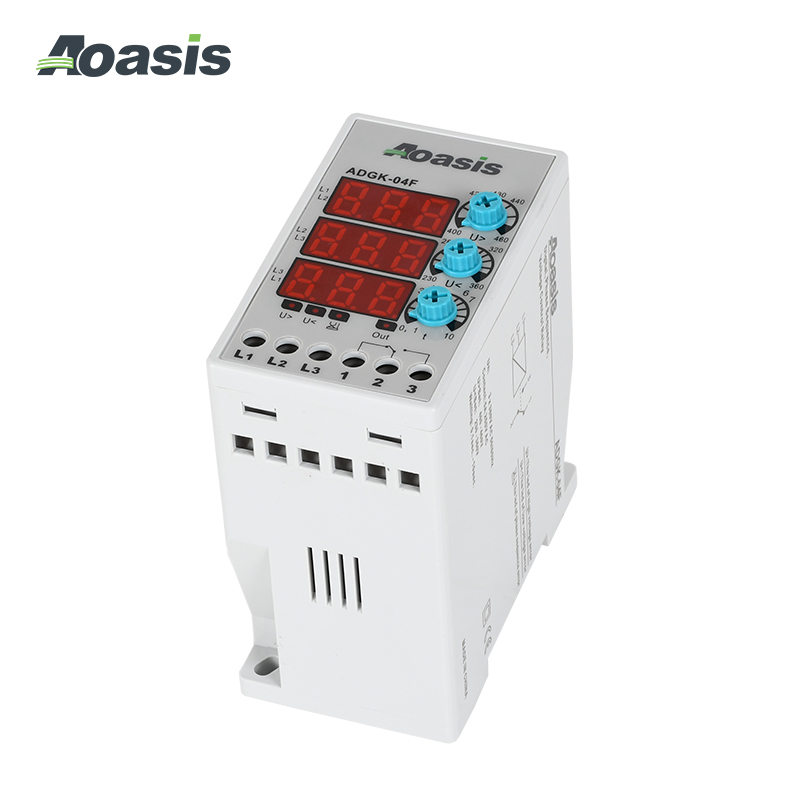

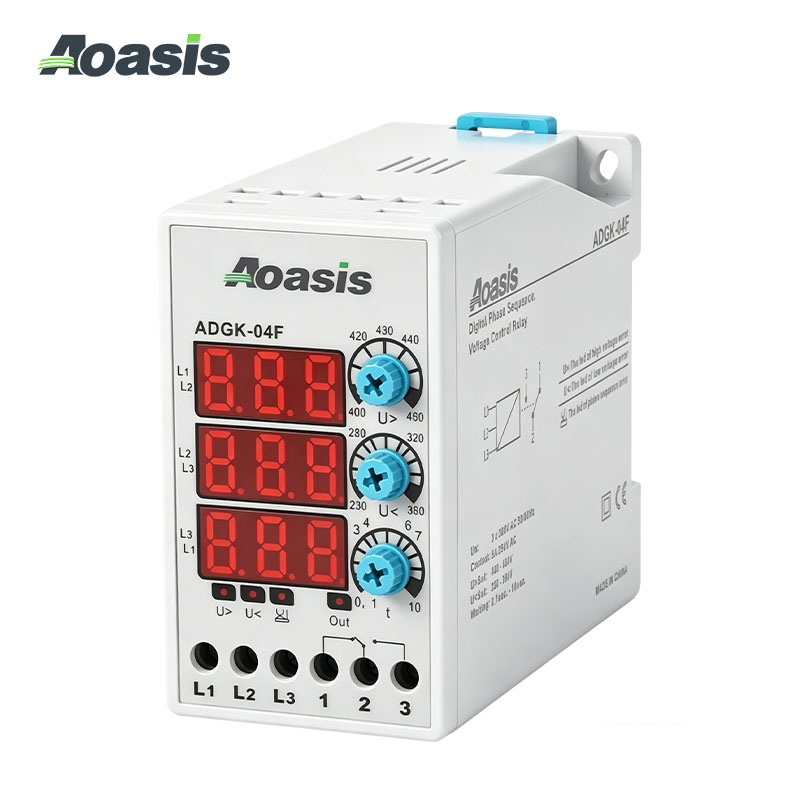

ADGK-04F Digital Display Voltage Control Relay

Digital Display Voltage Control Relay

Characteristics

Digital display voltage control relays are designed to protect single-phase or thress-phase systems from voltage changes and phase sequence failures.In order to prevent overteating and damage of three-phase moto caused by phase-loss and voltage imbalance in industrial field.

Inquiry

Product Details
Technical Parameters：
Type ADGK-01
 ADGK-03
 ADGK-04
 ADGK-04F

Operating Voltage

220VAC 380VAC

Operating Frequency

50/60Hz
Under Voltage Setting Range 150-210 VAC ---
 230-260 VAC
 230-260 VAC
Over Voltage Setting Range 230-280 VAC 400-460 VAC
 400-460 VAC
 400-460 VAC
Delay Timer 0.1-10 sec.

Ambient Conditions;Humidity

-20°C.....+ 55℃; 85%
Output 5A/250VAC (Resistive Load)
Mounting

Rail Mounting;Screw Terminals

Protection Class IP20
Weight 0.22kg 0.24kg



Production Selection Guide：
Explanation
 Type Specifications
 High Voltage Protection
 Under Voltage
Protection
 Low Voltage
Protection
 Phase Sequence

Delay time

（0.1-10sec.)

Rail Type

Pcs.Box

Single-Phase Voltage Protection Relay
 ADGK-01 ● ●

● ● 12
Three-Phase Voltage Protection Relay
 ADGK-03
 ●
● ● ● 10
ADGK-04
 ● ●
  ● ● 10
ADGK-04F
 ● ●    ● ● ● 10



Outline Dimension & Wiring Diagram:
