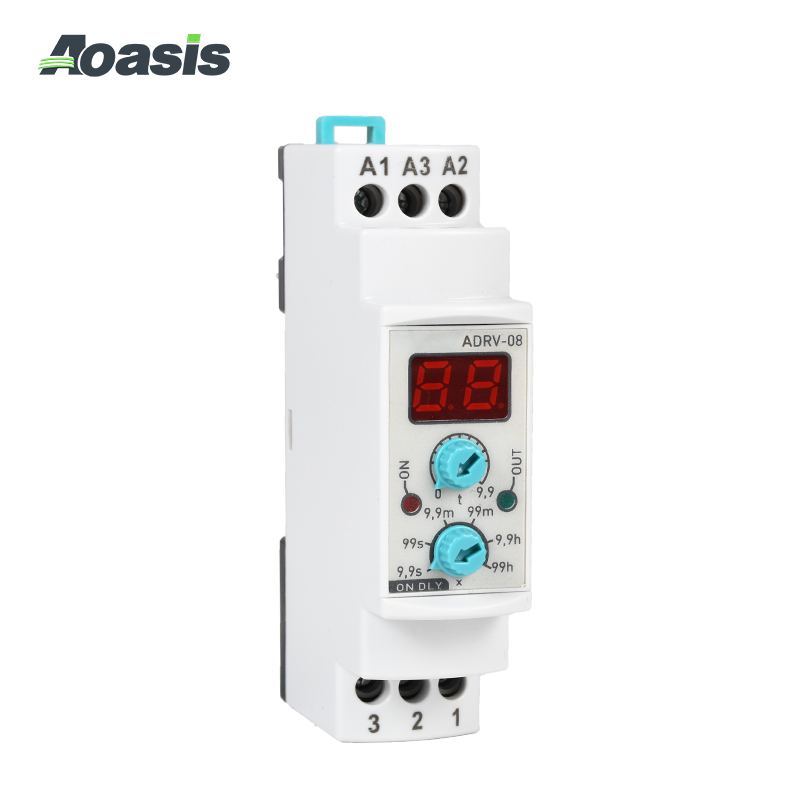

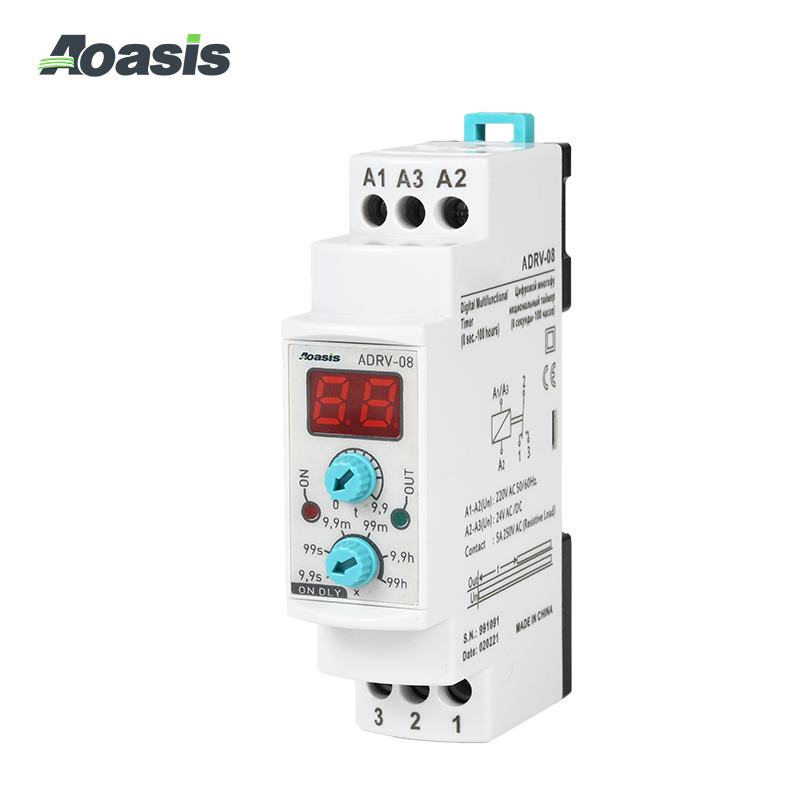

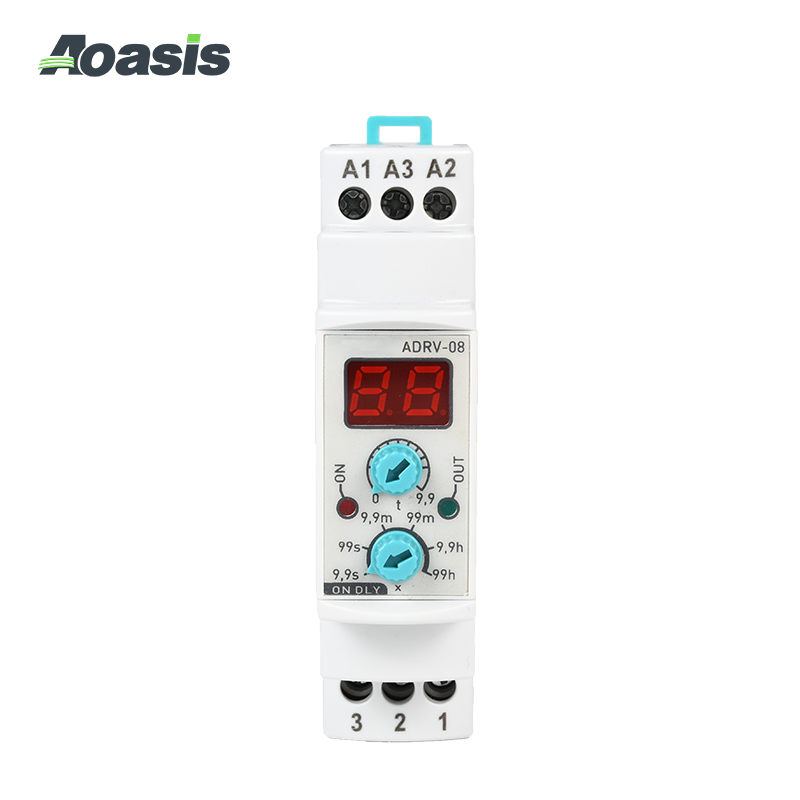

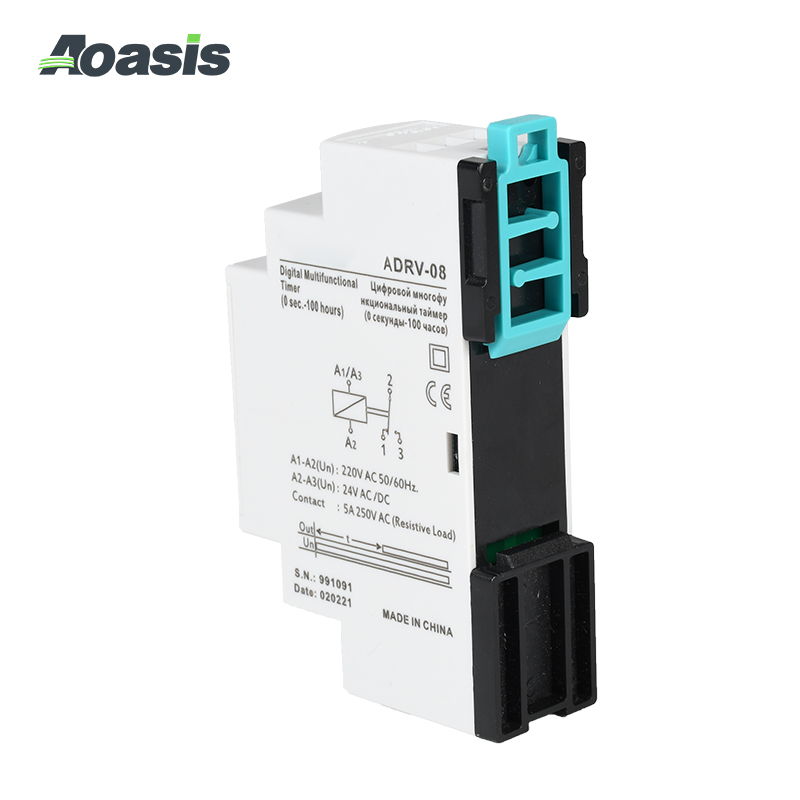

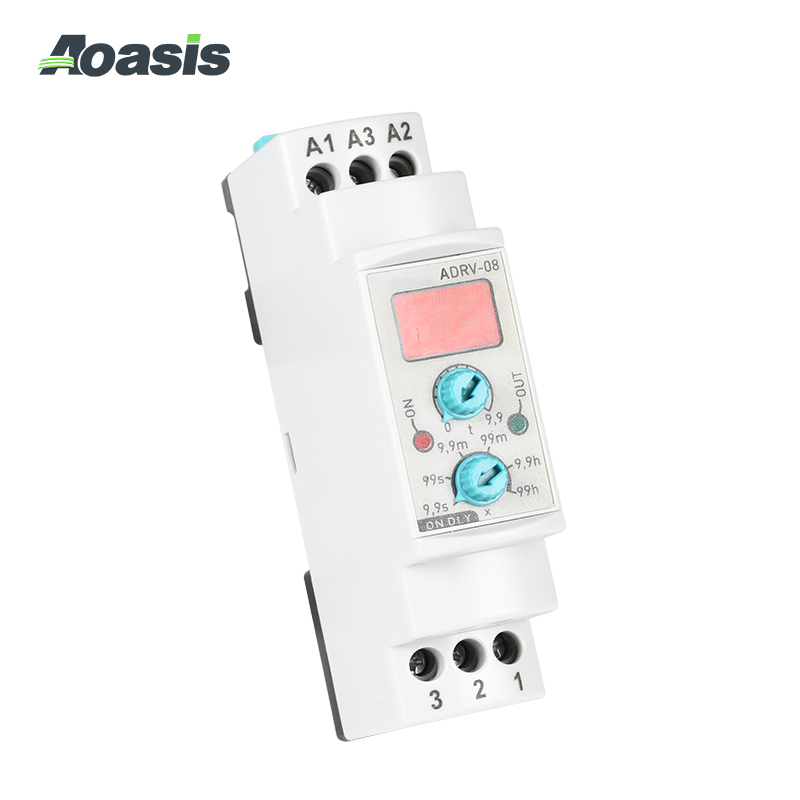

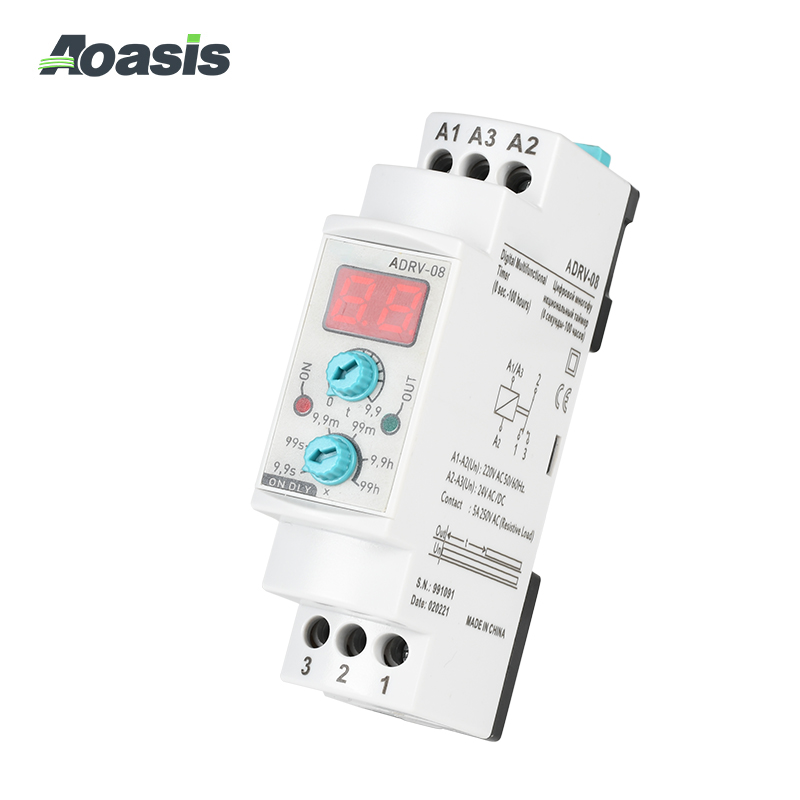

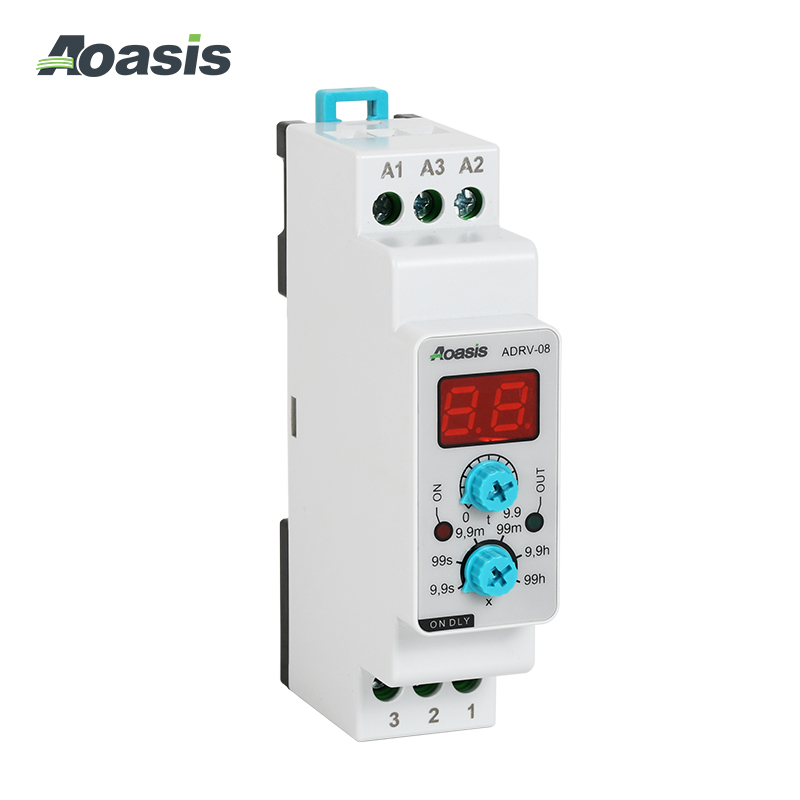

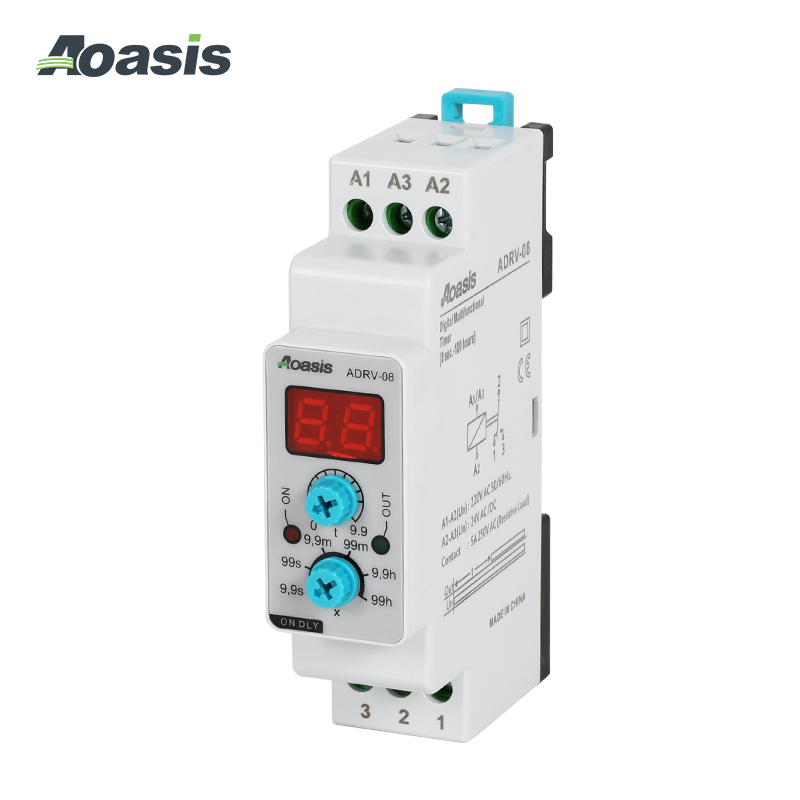

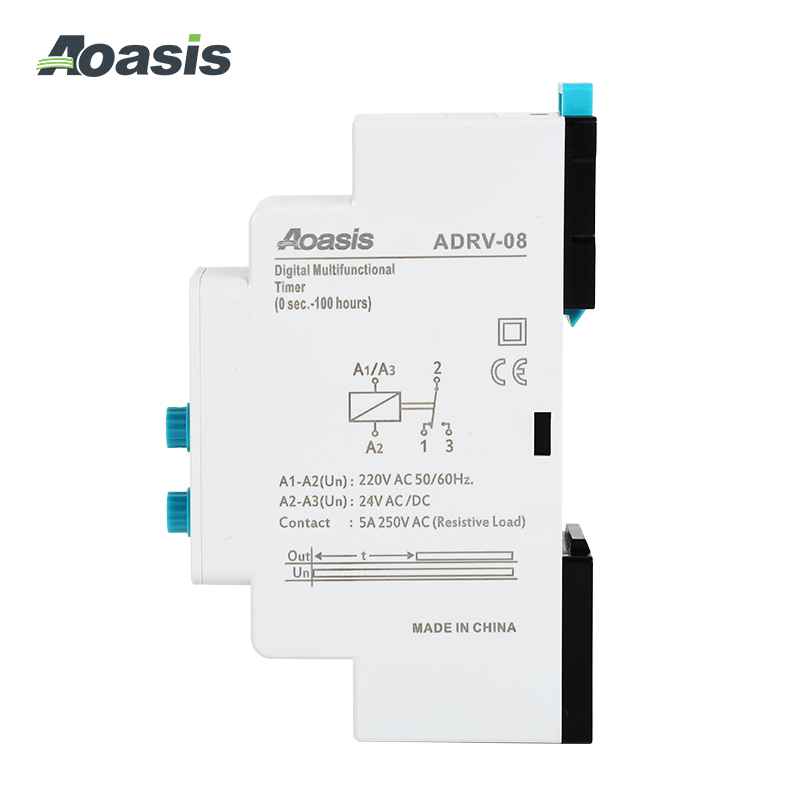

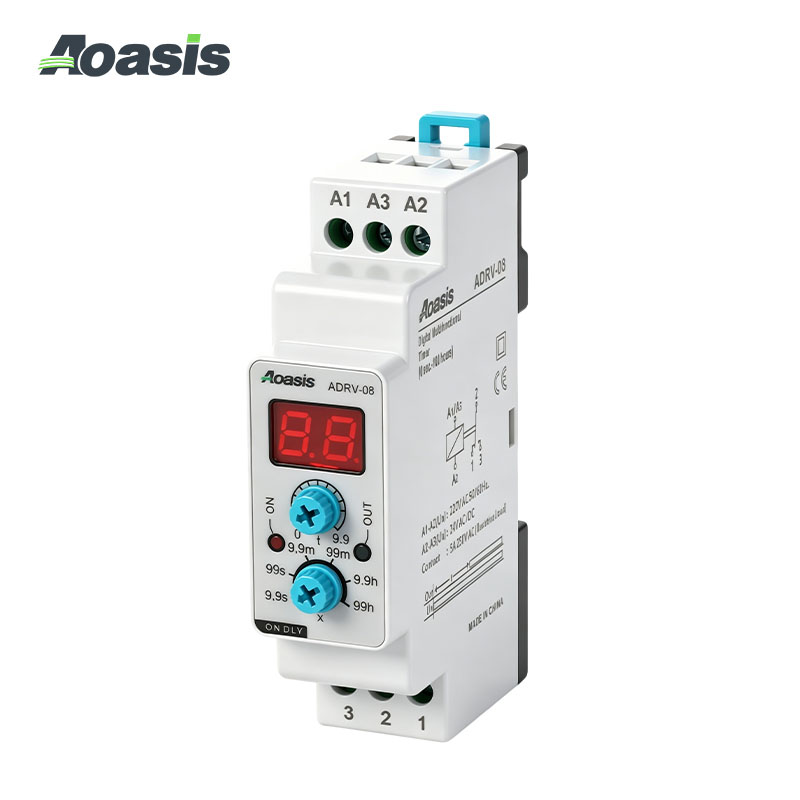

ADRV-08 digital timer is designed to be use wherever time dependent control is required.
Usage and Working Principle

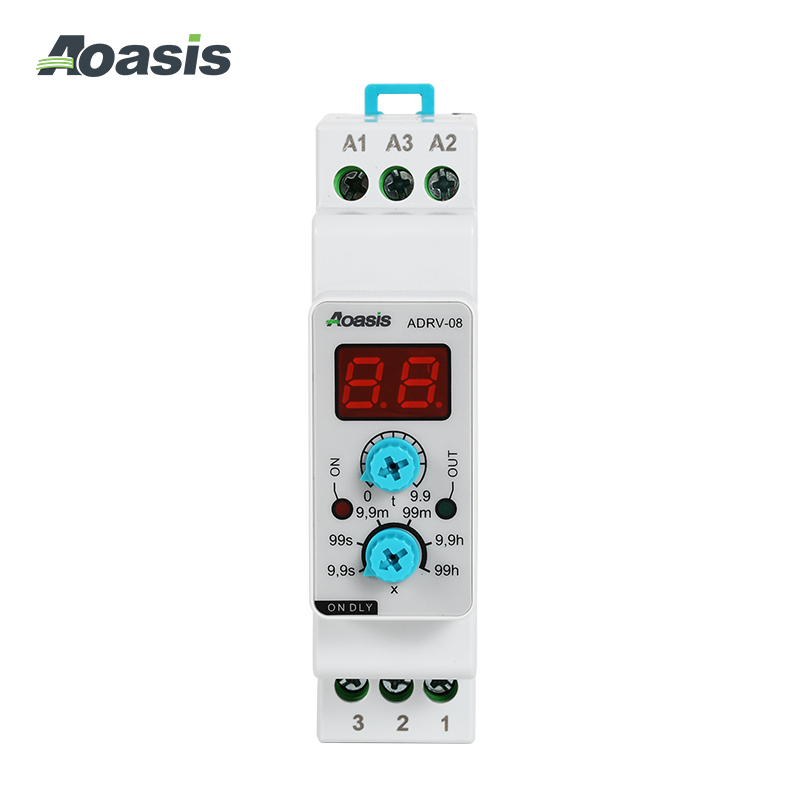

Display: Displayed here while setting the time and counting down the set time. If the operating time is set in minutes, the
rightmost point of the display flashes while the device is counting the time. t Knob: To set the working time value, move the knob
to the desired value. When setting the time, the set time is displayed on the screen. (If the time is changed while the device is
counting time, the device continues to count the new time set.) x Knob: To set the time range, move the“x" knob to the desired
value.The right side is reserved x Knob: To set the time range move the“x" knob to the desired value.9.9 sec., 99 sec., 9.9 min.,
99 min., 9.9 hors., 99 hours 6 different time periods can be set. When the time range is set while the device is powered, the
device must be de-energized and re-energized in order for the adjusted time range to be valid.
Maintenance
Switch off the device and release from connections. Clean the trunk of device with a swab. Don’t use any conductor or chemical
might damage the device. Make sure device works after cleaning
Warnings
Please use the device according to the manual. Don’t use the device in wet. Include a switch and circuit breaker in the assembly.
Put the switch and circuit breaker nearby the device, operator can reach easily. Mark the switch and circuit breaker as releasing connection for device.
Technical Parameters:
Type
ADRV-08
ADRV-10
Operating Voltage
150V-260VAC 24V DC,or110VAC 24V DC
110Vor230VAC(A1-A2)or24VAC/DC(A2-A3
Function
ON Delay
ON Delay or OFF Delay
Operating Frequency
50/60Hz
Operating Power
<4VA
<6VA
20……+55℃
Time
0.1(sec)~99(min)
Display
Output contact
5A/250VAC (Resistive Load)
Mounting
Assembld on the din rail
Operating Altitude
< 2000 meter
Weigh
79g
Cable Diameter
2.5m㎡

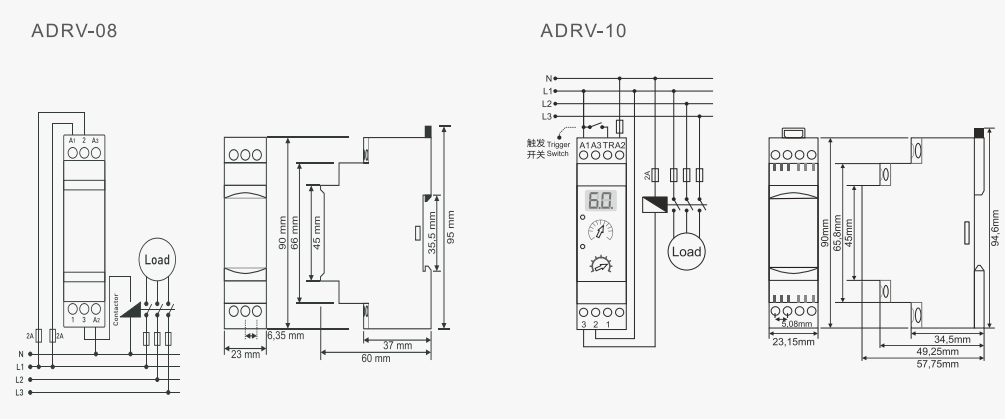

Installation dimensions and wiring requirements
