ADS18-ZN Single Phase Multi-Function Energy Meter,Products,ZHEJIANG ZHONGAO ELECTRIC CO.,LTD.

· LCD display with backlight, Keypad for LCD display step by step

· Bi-directional total active energy measurement, reverse active energy measure in the total active energy

· The meter also display real voltage, current, active power, power factor, frequency, import a ctive energy, export active energy

· Reset energy function (the reset energy kWh display is dependent with the total energy display, this reset will not affect the total energy)

· RS485 communication port, MODBUS-RTU protocol

· Pulse LED indicates working of meter, Pulse output with optical coupling isolation

· Energy data can store in memory chip more than 15 years after power off

· 35mm din rail installation

Rate Voltage AC	110V, 120V, 220V, 230V, 240V (0.8~1.2Un)
Rate Current /Frequency	5(32)A /50Hz or 60Hz ±10%
Communication Port	Rs485 port, baud rate 1200~9600 bps, default is 9600bps,address 1~247, None parity, stop bits 1, data bits 8
Connection Mode	Direct Type	Accuracy Class	1% or 0.5%
Power Consumption	<2W/10VA	Start Current	0.004lb
AC Voltage Withstand	4000V/25mA for 60s	Over Current Withstand	30Imax for 0.01s
IP Grade	IP20	Executive Standard	DIN 43880
Work Temperature	-25°C ~70°C	Pulse Output	Passive pulse, 80±5 ms

Wire connection:

Outline dimension：

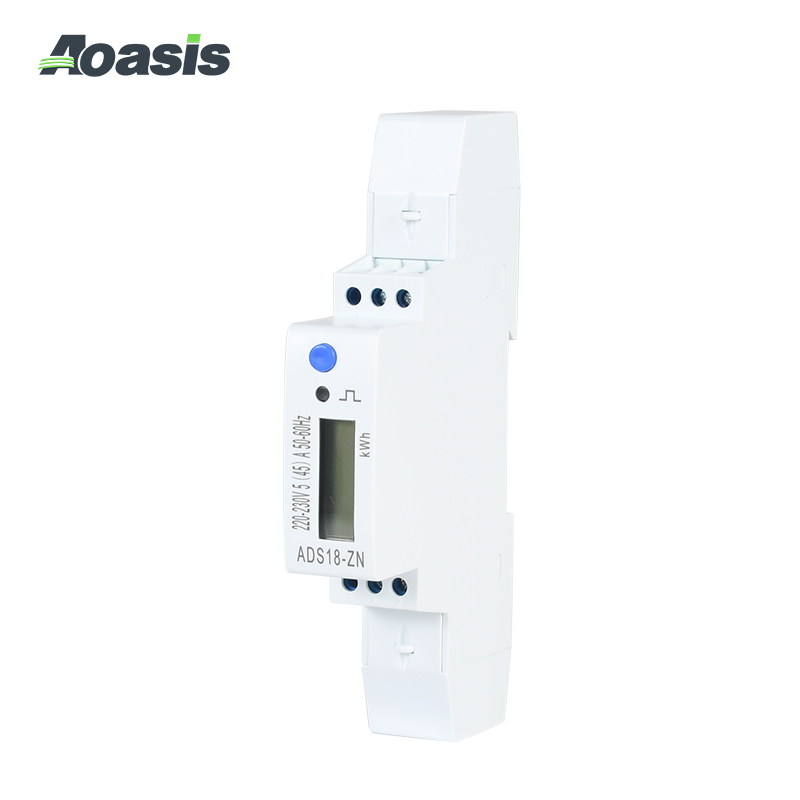

ADS18-ZN Single Phase Multi-Function Energy Meter
