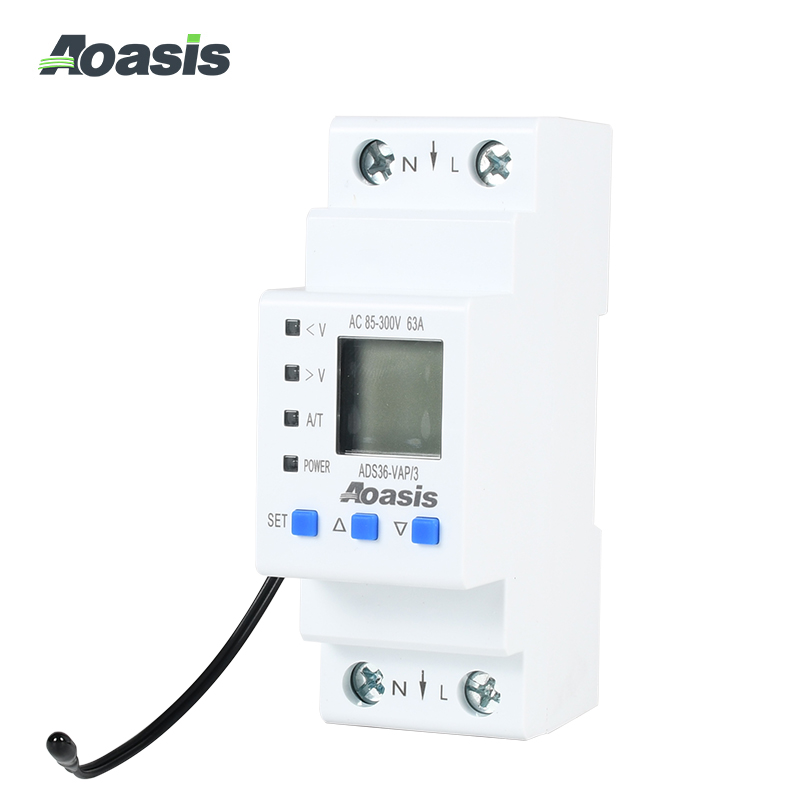

ADS36-VAP/3 Single Phase Voltage/ Current/ Temperature Protective Energy Meter

Basic Function:

· LCD display with backlight, can display total active energy (kWh), real time current (A) , voltage(V), active power (W).
· Product self-design has function of lighting protection
· Overvoltage protection, under voltage protection and over-current protection can select auto-Reclosing mode or manual-Reclosing mode
· Automatic lower and upper temperature protection and recovery
· In case of over-voltage fault, under-voltage fault or over current fault in single phase line, the product can power off the line and can automatically restore connecting the line over a time delay after voltage of the lien is recovered to normal condition
· In case of transient over voltage in line, the product can protect the equipment from false operation
· In case that the line subjects to unstable voltage or sudden power-off and power-on due to loosened connection and other fault, the product will disconnect the line.
· When fault voltage of the line reaches the peak, the product itself will not be damaged.
· Under over-current protection mode, you also can select Malignant load protection (Pure Resistive Load limit) which is used for Apartments and Student Dormitories electric safety
· You can select the circuit output cycle switch on/off mode
· Led indication of over-voltage protection, under voltage protection and over-current protection
· Diversified design for the protection, you can closed any one of over-voltage protection, under-voltage protection and over-current protection in any time
· 35mm din rail installation

Technical Data:

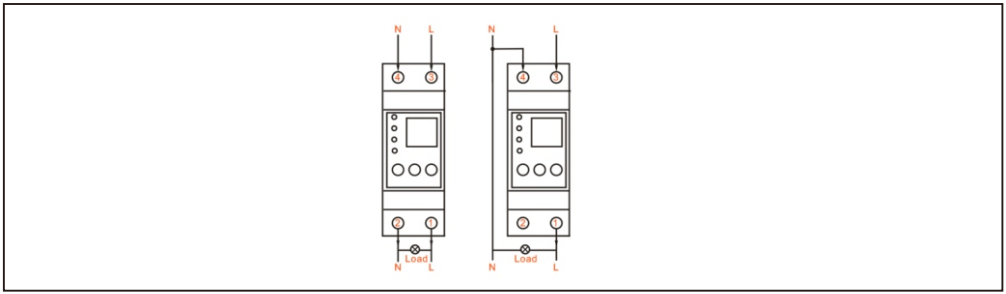

Wire connection：

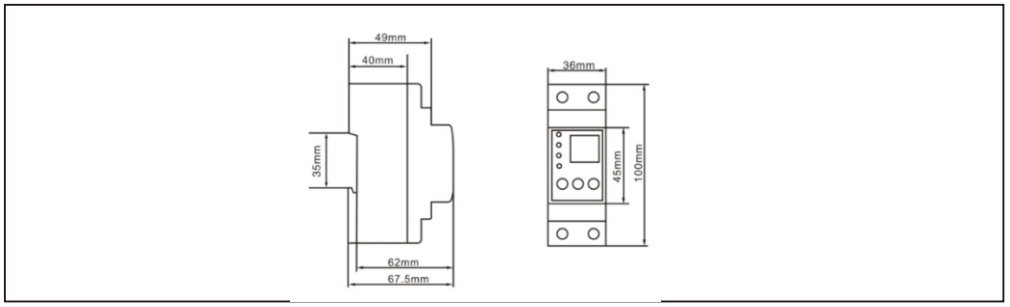

Outline dimension：
