Production Selection Guide：
|
Explanation |
Type |
Time Range |
On Delay |
220V AC |
24V AC/DC |
DIN-Rail |
Pcs.Box |
|
Time Relays
|
AERV-03 |
0,1-3.sec |
● |
● |
● |
● |
20 |
|
AERV-06 |
0,1-6.sec |
● |
● |
● |
● |
20 |
|
|
AERV-12 |
0,1-12.sec |
● |
● |
● |
● |
20 |
|
|
AERV-30 |
0,1-30.sec |
● |
● |
● |
● |
20 |
|
|
AERV-60 |
0,1-60.sec |
● |
● |
● |
● |
20 |
|
|
AERV-03D |
0,1-3.min |
● |
● |
● |
● |
20 |
|
|

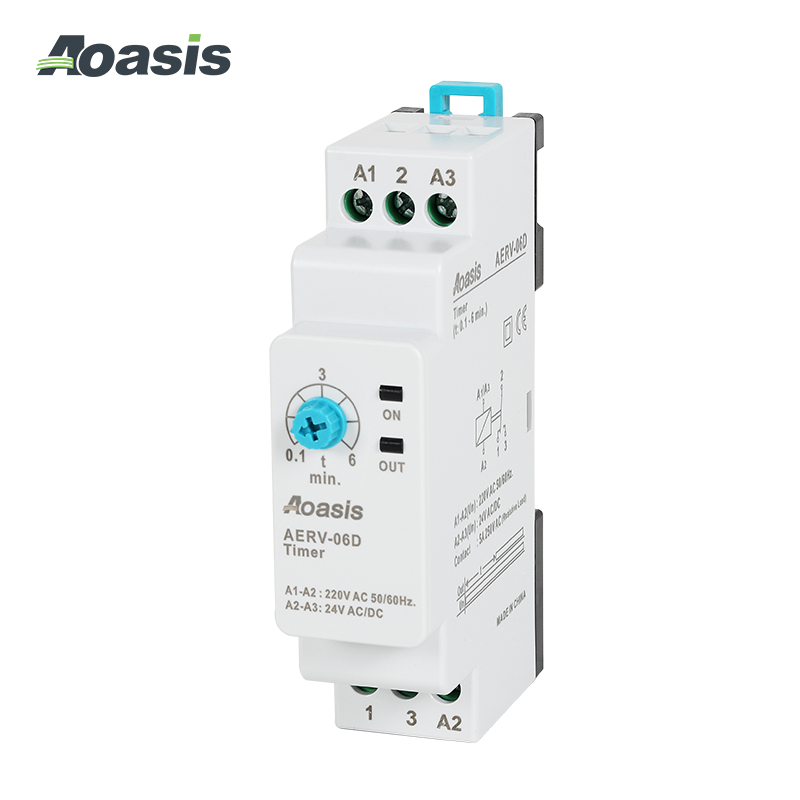

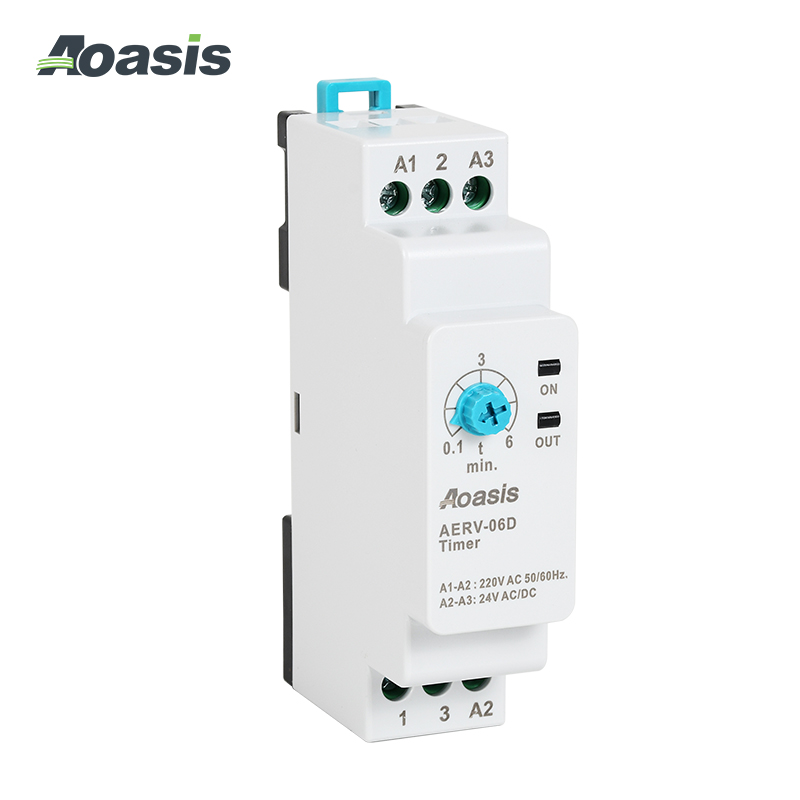

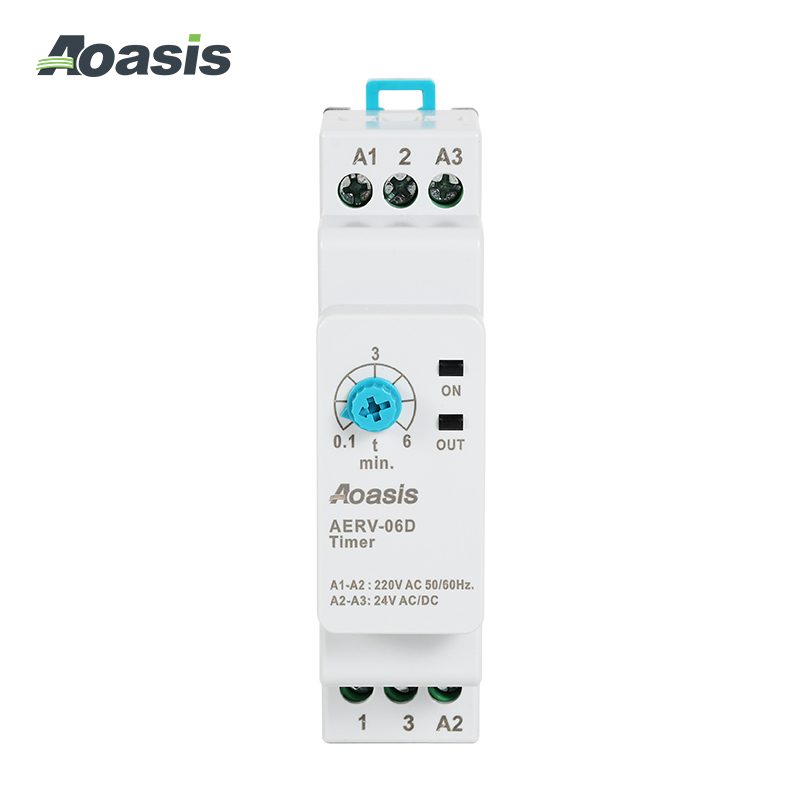

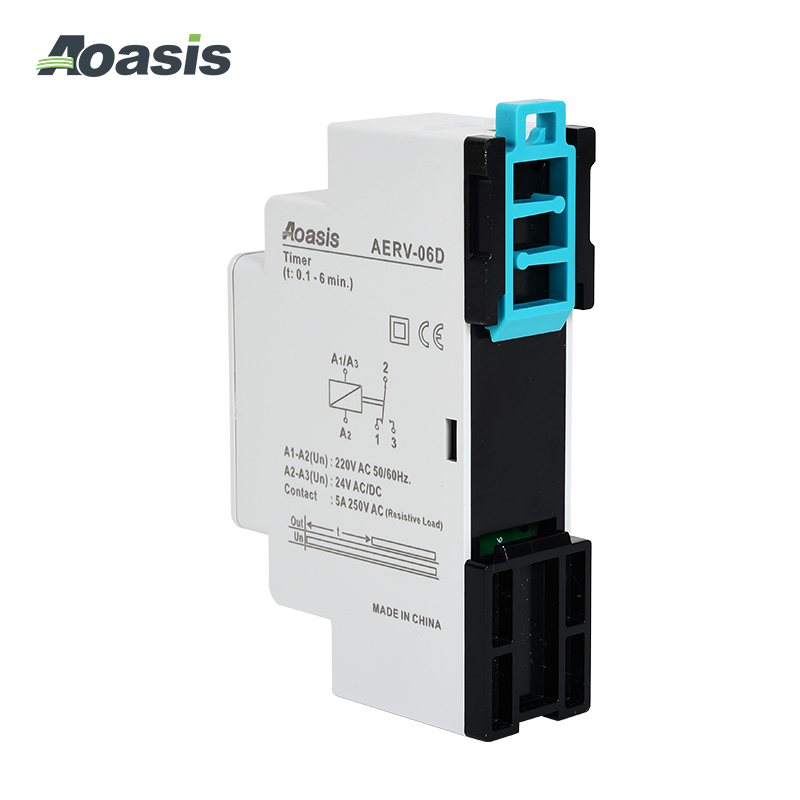

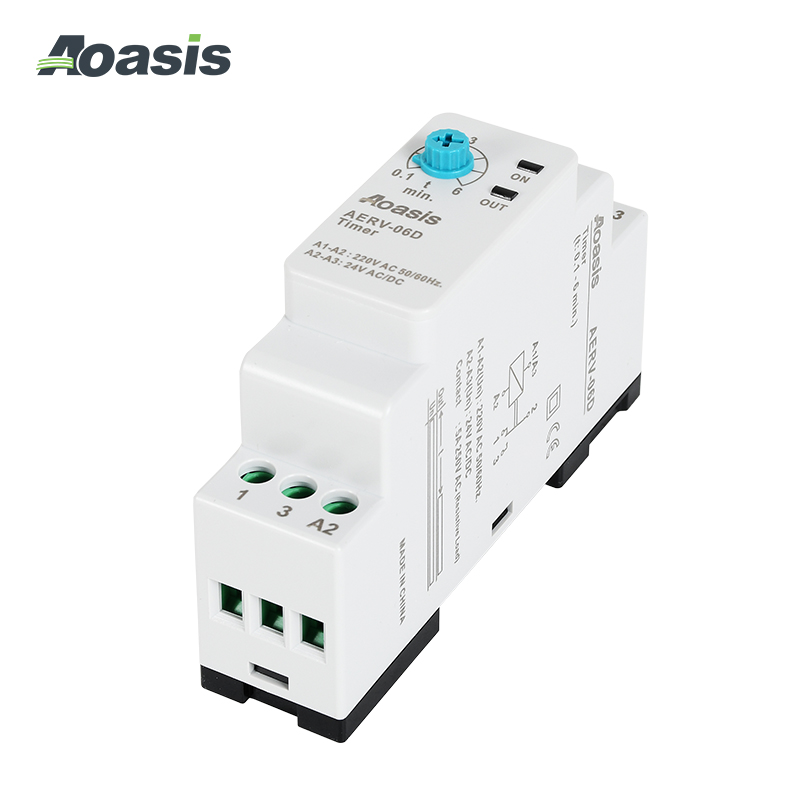

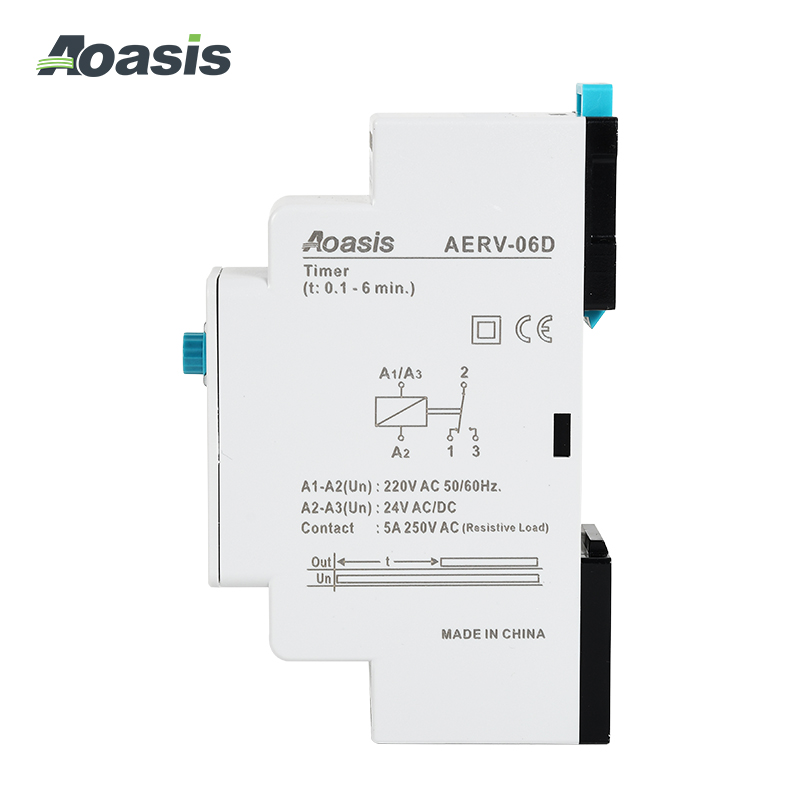

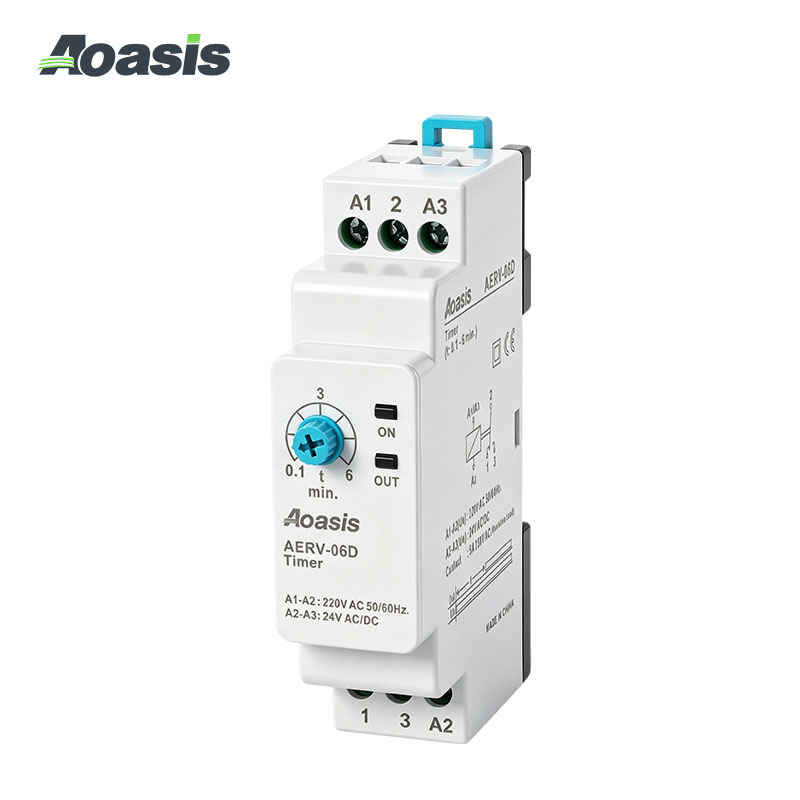

AERV-06D |
0,1-6.min |
● |
● |
● |
● |
20 |
|
|
AERV-12D |
0,1-12.min |
● |
● |
● |
● |
20 |
|
|
AERV-30D |
0,1-30.min |
● |
● |
● |
● |
20 |
|
|
AERV-60D |
0,1-60.min |
● |
● |
● |
● |
20 |
|
|
Multifunctional Timer |
AERV-08 |
0,1-100.hour |
● |
● |
● |
● |
20 |
|
Star-Delay Timer
|
AERV-YU |
0.1-30 sec.(Y) 10-500ms(Y→△) |
● |
● |
● |
● |
20 |
Technical Parameters：
|
Type |
AERV-03 AERV-03D |
AERV-06 AERV-06D |
AERV-12 AERV-12D |
AERV-30 AERV-30D |
AERV-60 AERV-60D |
AERV-08 |
AERV-YU |
|
Dimensions |
23mm |
||||||
|
Protection Class |
IP20 |
||||||
|
Weight |
65g/Pcs |
75g/Pcs |
|||||
|
Operating Voltage |
220VAC/24VDC |
||||||
|
Operating Range
|
150-260VAC, 24VDC±10% (Other customizable) |
||||||
|
Power Consumption |
<4VA |
||||||
|
Output Contact |
5A/250V AC (Resistive Load) |
||||||
|
Ambient Conditons/Humidity |
-20℃.....+55℃；85% |
||||||
|
Mounting |
DIN-Rail Mounting/Screw Terminals |
||||||
Outline dimension&WiringDiagram：
