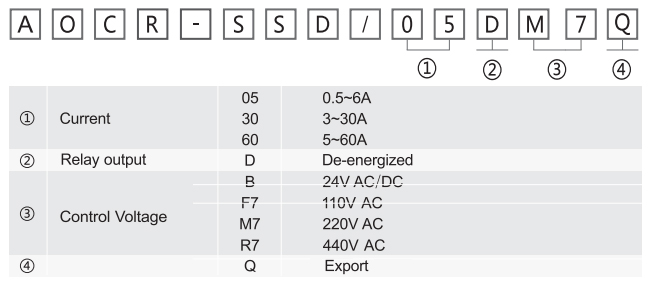

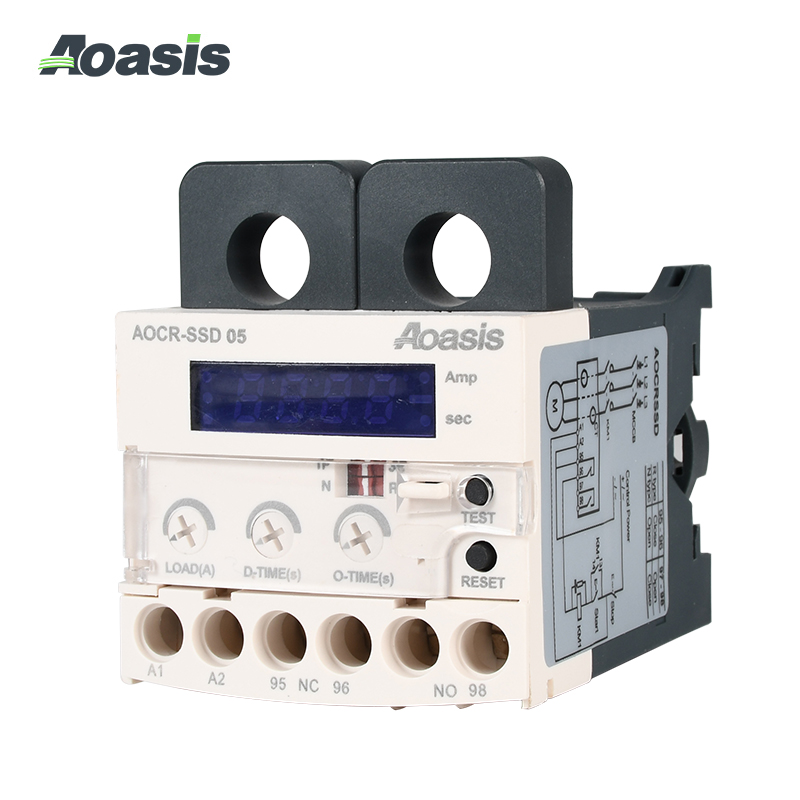

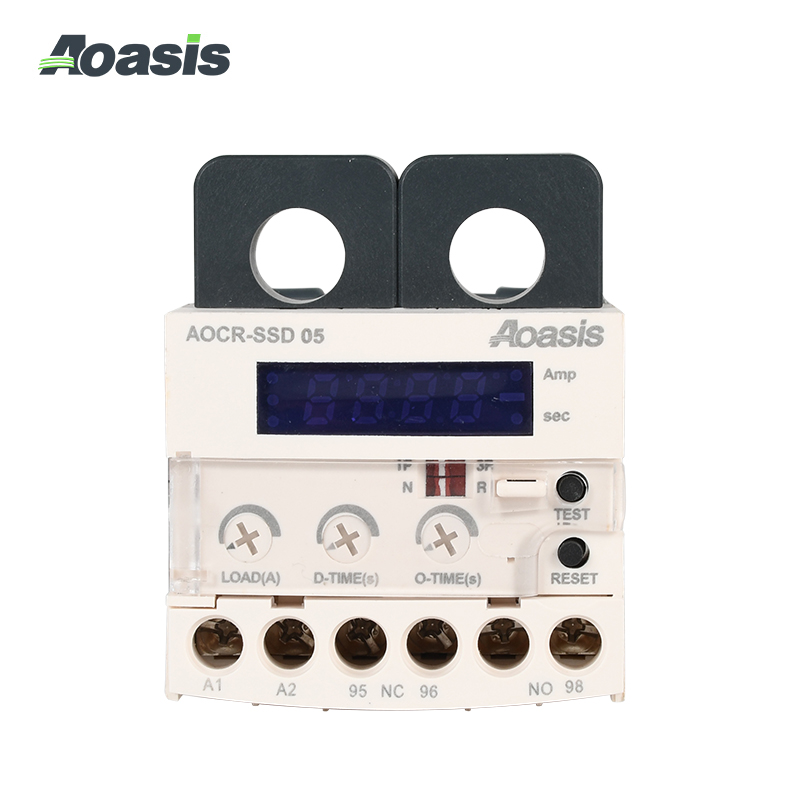

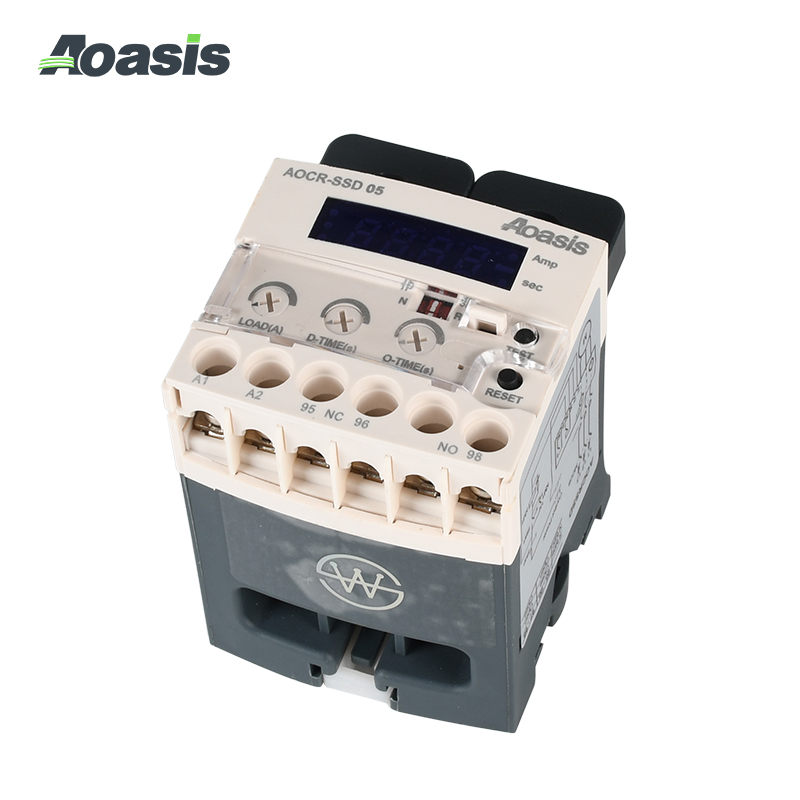

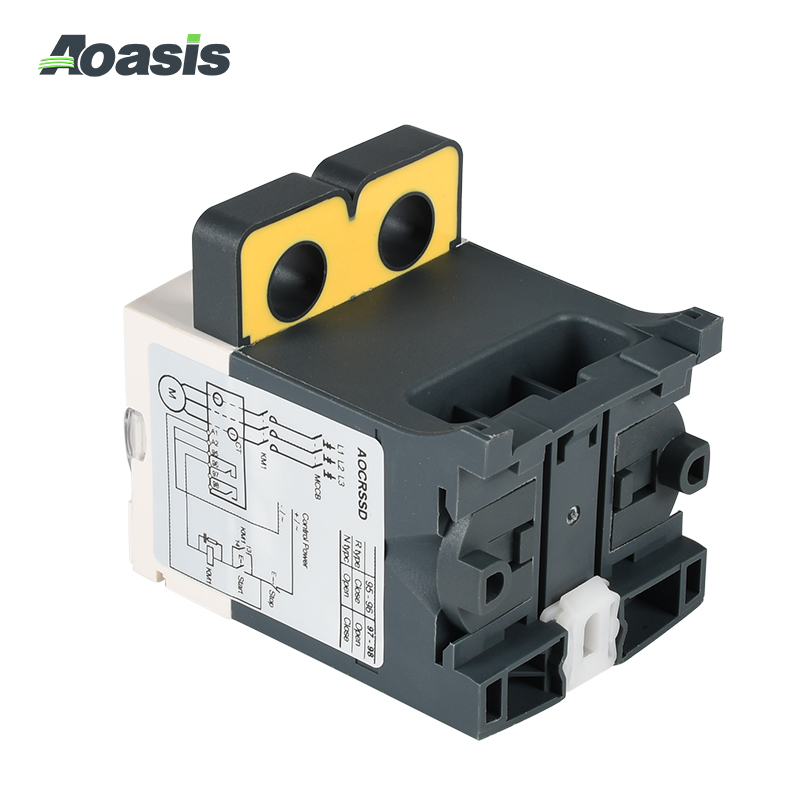

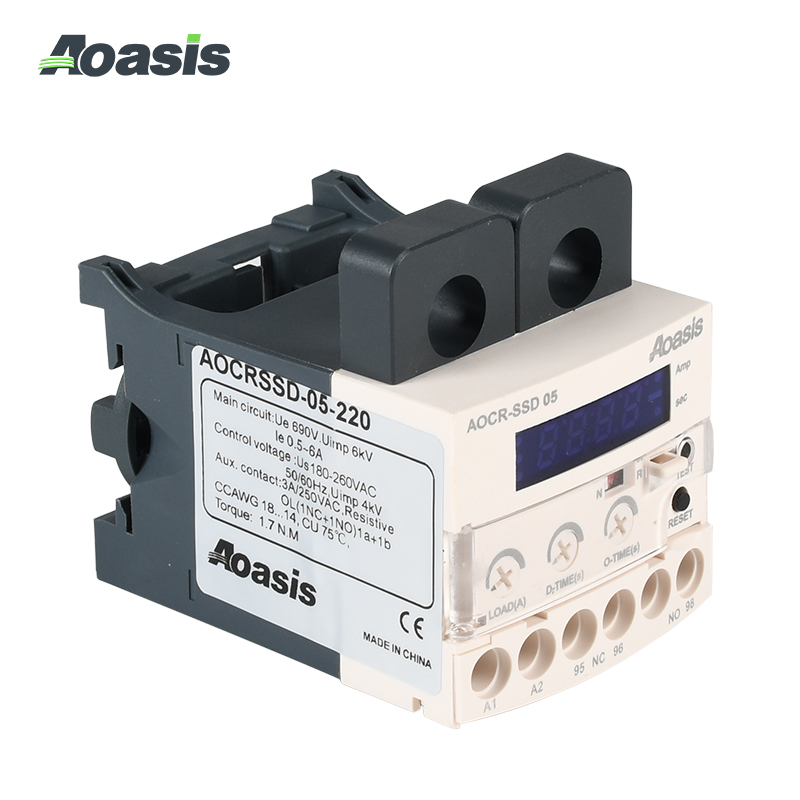

Ordering requirements:
1、Real Time Processing/Higher Preceision
2、Current Setting Renge-05Type:0.5~6A/30Type:3~30A/60Type:10~60A
3、Digital display : trip cause / easy troubleshooting
4、Reset: Manual (instantaneous) /Electrical(remote)
5、Load selection by DIP switch:Single phase(1P)/Three phase(3P)
6、Fail safe(N)/ Non-fail safe(R)
Protection：
| Protective ltem | Trip Time | Description |
|
Over-current |
O-TIME |
ls<In |
|
Phase Loss |
3sec |
[(MAX-MIN)/MAX] x100 >90 |
|
Locked Rotor |
0.5sec after elapse dt |
≥3times OC setting value |
Technical Parameters:
|
Current Setting
|
Type
|
Range
|
|
|
05 |
0.5~6A |
||
|
30 |
3~30A |
||
|
60 |
5～60A |
||
|
120 |
10~120A |
||
|
Starting |
D-TIME
|
0.2～30 sec |
|
|
Time
|
Operation
|
O-TIME
|
0.2-10sec |
|
Rese |
Manual /Electric Reset |
||
|
Operating t-c characteristic
|
Overurrent
|
Definite
|
|
|
Accuracy |
Current
|
K1A:±0.05A,I≥1A:±5% |
|
|
Time
|
t≤3S:±0.2s,t>3s:±5% |
||
|
Control Voltage |
Voltage Range |
110 |
110VAC±15%,50/60Hz |
|
220 440 |
220VAC±15%,50/60Hz 440VAC±15%,50/60Hz |
||
|
24 |
24VAC/DC,50/60Hz |
||
|
Output |
Contact |
2-SPDT (1a1b) |
|
|
Condition |
N Type
|
When powered,95+F96 Open,97-F98 Close
|
|
|
R Type
|
When powered,95++96 Close,97-H98 Open
|
||
|
Contacts |
5A/250VAC Resistive |
||
|
Insulation
|
Between Case &Circuit
|
Over 100MΩ with 500VDC Megger
|
|
|
Dielectric Strength |
Between Case &Circuit
|
2.0kV,50/60HZ,1 min |
|
|
Between Contacts
|
1.0kV,50/60Hz,1 min |
||
|
Between Circuit
|
2.0kV,50/60Hz,1 min |
||
|
Environment |
Temperature |
Storage
Operation
|
-30～80℃ 20～60℃ |
|
Humiditv
|
30～85%RH,Not-condensate
|
||

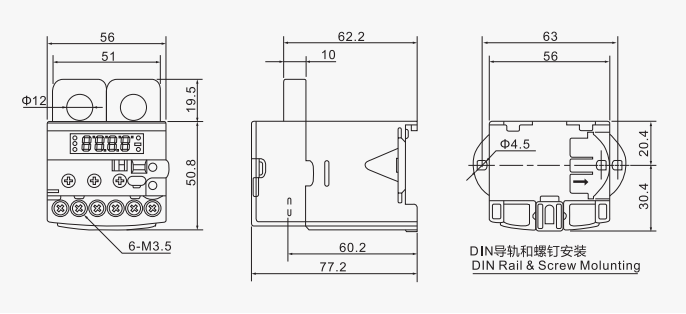

Outline and Installation Dimensions：
