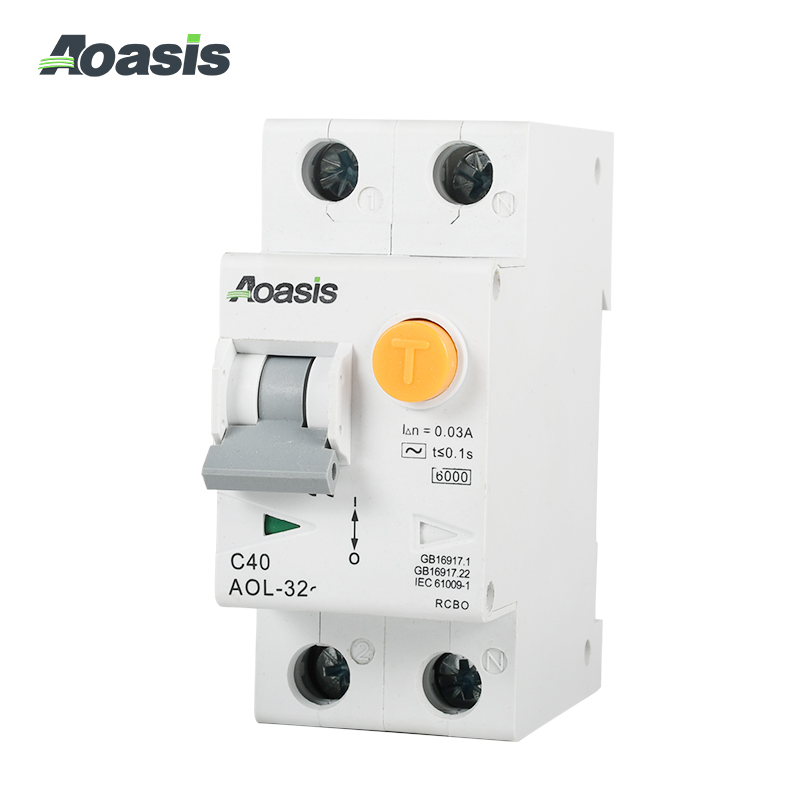

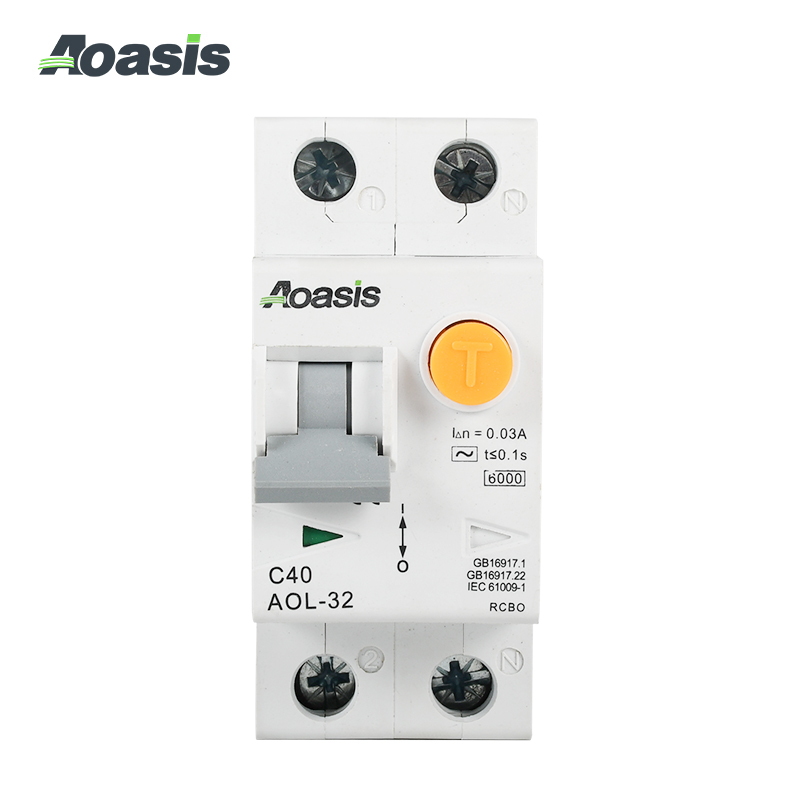

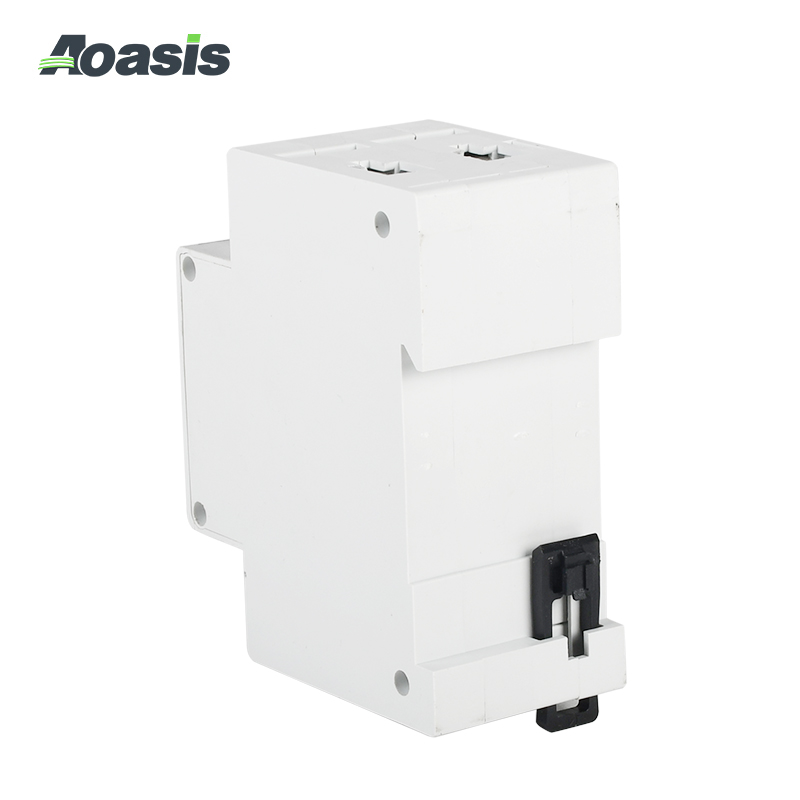

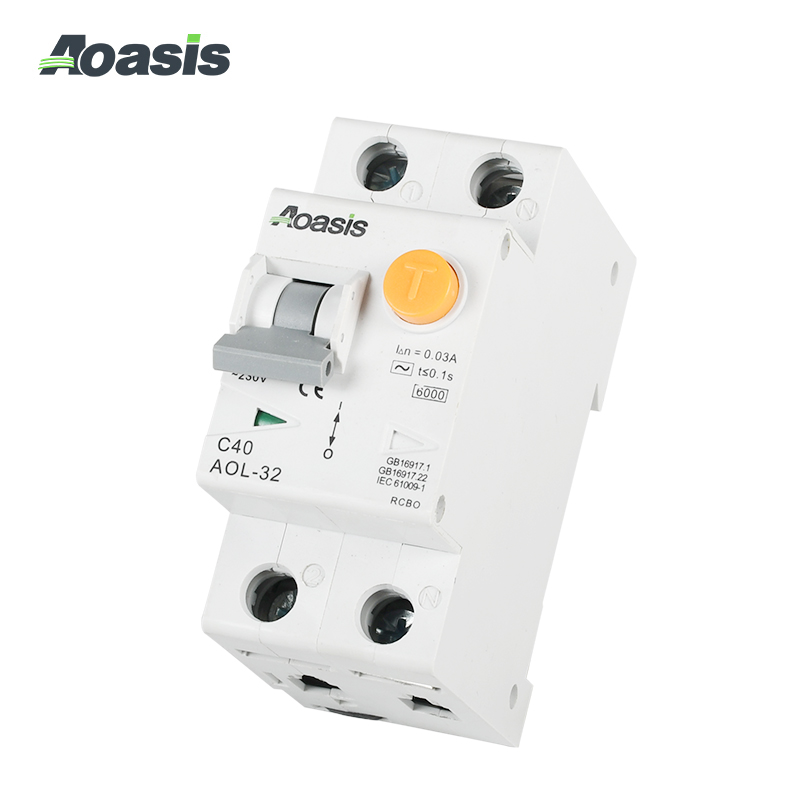

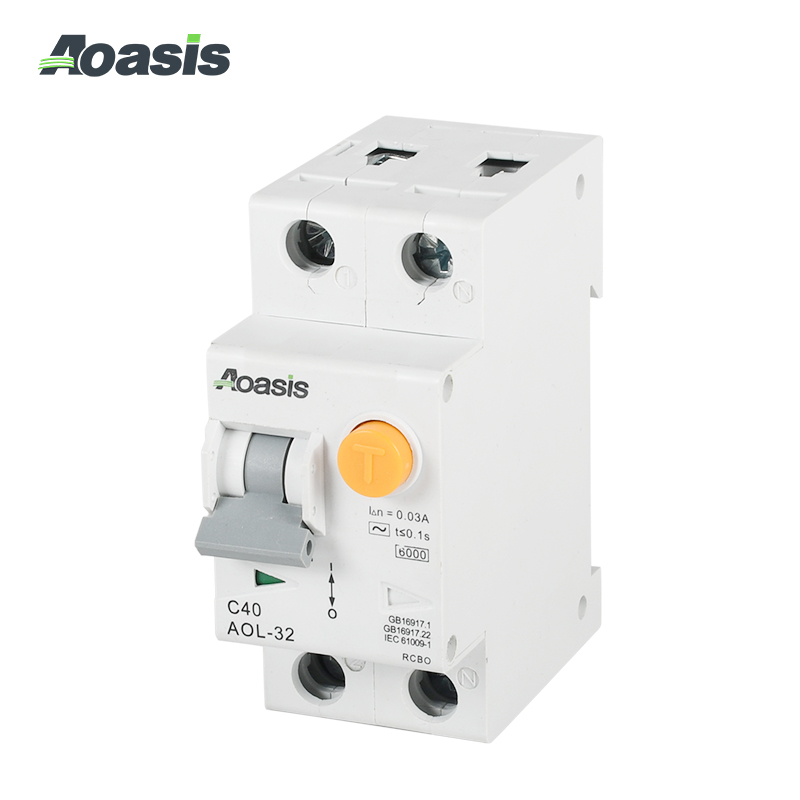

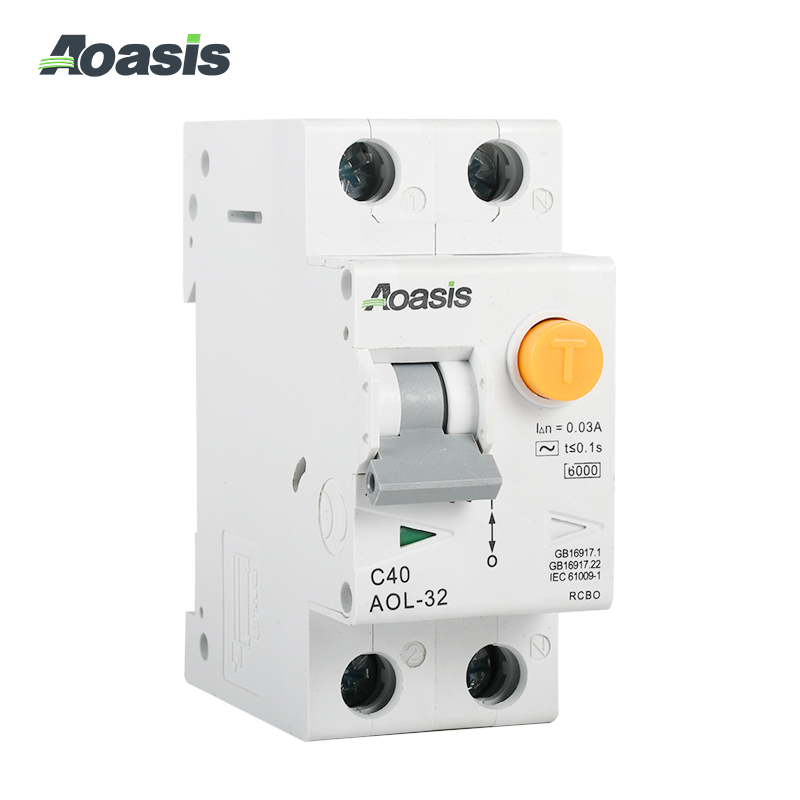

Product Selection：
Technical Parameters：
|
Type
|
AOL-32 |
|
Standard |
GB16917.1, IEC61009-1 |
|
Functions |
Short-circuit protection, Overload protection, Leakage Protection, Isolation function |
|
Frame current(A) |
32 |
|
Pole |
1P+N |
|
Rated current(A) |
6、10、16、20、25、32、40 |
|
Rated voltage(V) |
AC230 |
|
Rated insulated voltage(V) |
AC500 |
|
Rated impulse withstand voltage(kV) |
4 |
|
Rated residual working current(mA) |
10、30、100 |
|
Residual current characteristics |
A Type |
|
Rated short-circuit breaking |
6kA |
|
Rated ultimate short-circuit breaking |
6kA |
|
Rated operating short-circuit breaking |
6kA |
|
Trip curve |
B(3In~5In) |
|
Release Form |
Thermomagnetic release |
|
Electrical life |
4000 |
|
Mechanical life |
10000 |
|
Polluticn grade |
2 |
|
Protection level |
IP20 |
|
Temperature |
-35'C ~ +70°C |
|
Altfude |
Do not exceed 2000m |
|
Wiring terminal |
Screw crimping |
|
Max. connection capacity (mm) |
25 |
|
Max. utimate torque (Nm) |
2.5 |
|
Istallation category |
II,III |
|
Installation method |
TH37-7.5 type DIN rail |
|
Incoming Wirng method |
Install the wire at the top |
Outline Overall and Installation Dimensions (mm)：
