Humidity：

Need to meet during normal work:

● When the ambient air temperature is +40 °C, the relative humidity of the atmosphere cannot exceed 50%. If the temperature is lower, it can be used under higher relative humidity.
● The average monthly relative humidity of the wettest month is 90%.
● Need to consider the effect of condensation on the product's performance.
Reliable contact indication with isolation function：
● AOMEY series molded case circuit breakers are in line with the isolation defined in IEC60947-2.
● The isolation position corresponds to the O (OFF) position.
● Only when the contact is really opened, the operating handle can indicate the "OFF" position.
● After testing, the isolation function is safe and reliable.
Protection level：
● Circuit breaker body: IP protection grade is IP20.

Product selection guide：

Product name	Display method	Frame current	Breaking capacity	Set current	Pole	Tripping type	Product accessories
AO	MEY	250	H	250	3	3	00
↓	↓	↓	↓	↓	↓	↓	↓
Corporate Code	Electronic liquid crystal	250:250A 400:400A 630:630A 800:800A	M: M type H: H type	250:250A 400:400A 630:630A 800:800A	3:3P 4:4P(No tripping device, N pole through)	3：Electronic trip	00：No accessories

Main performance indexes：

Model		AOMEY-250		AOMEY-400	AOMEY-630	AOMEY-800
Rated voltage (V)		400		400	400	400
Rated insulation voltage (V)		1000		1000	1000	1000
Rated impulse withstand voltage Uimp(KV)		8		8	8	8
Rated frequency (HZ)		50		50	50	50
Rated current (A)		250		400	630	800
Pole number		3P, 4P		3P, 4P	3P, 4P	3P, 4P
Use category		B		B	B	B
Breaking capacity degree		M	H	H	H	H
Breaking capacity	Icu (kA) AC 400	50	65	70	70	65
	Ics (kA) AC 400	35	65	70	70	50
	Icw (kA) AC 400（1s）	10		10	10	20
Mechanical life	Maintained	40000		20000	20000	10000
	Without maintained	20000		10000	10000	5000
Electrical life	AC 400	10000		8000	8000	2500
Communication protocol		DL/T 645
Communication baud rate		600bps、1200bps、2400bps、4800bps、9600bps、19200bps

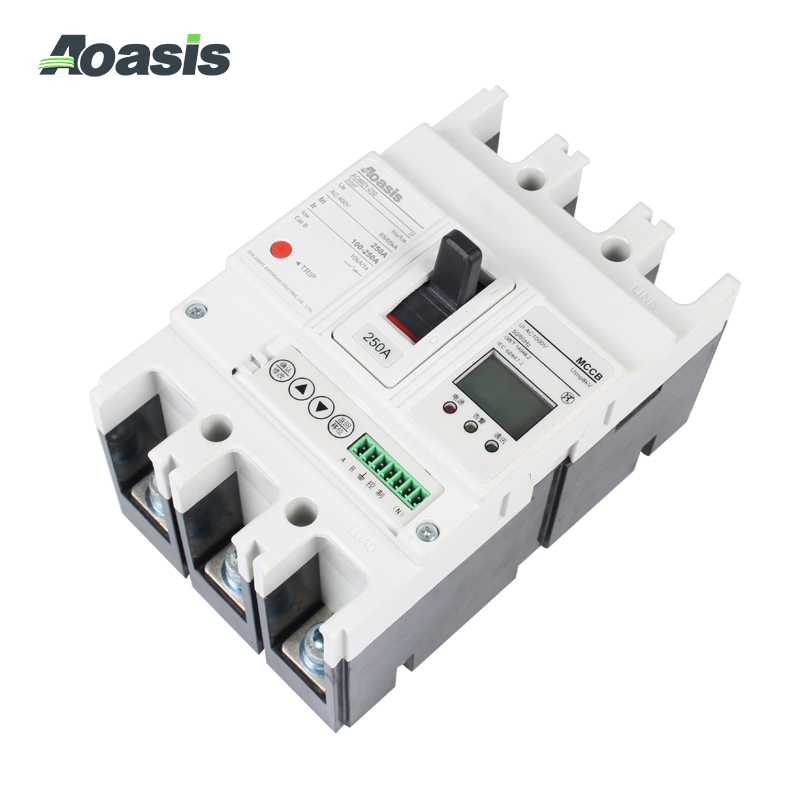

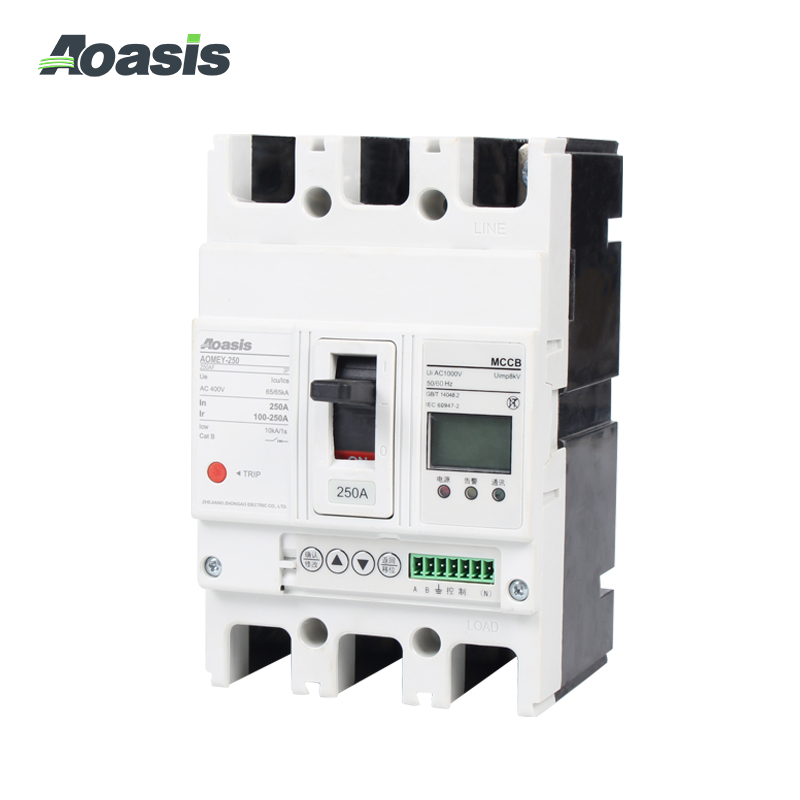

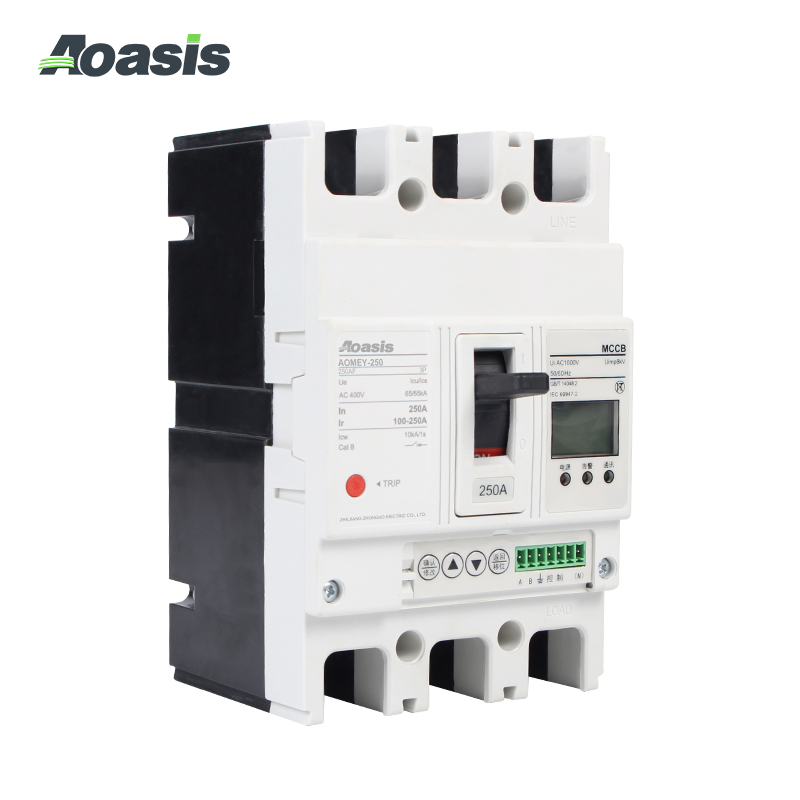

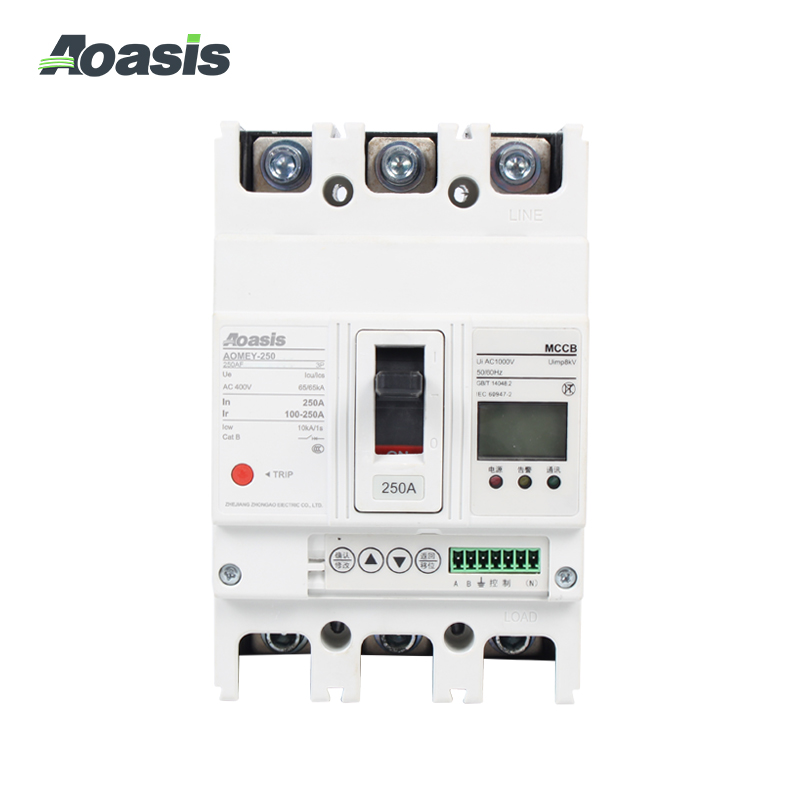

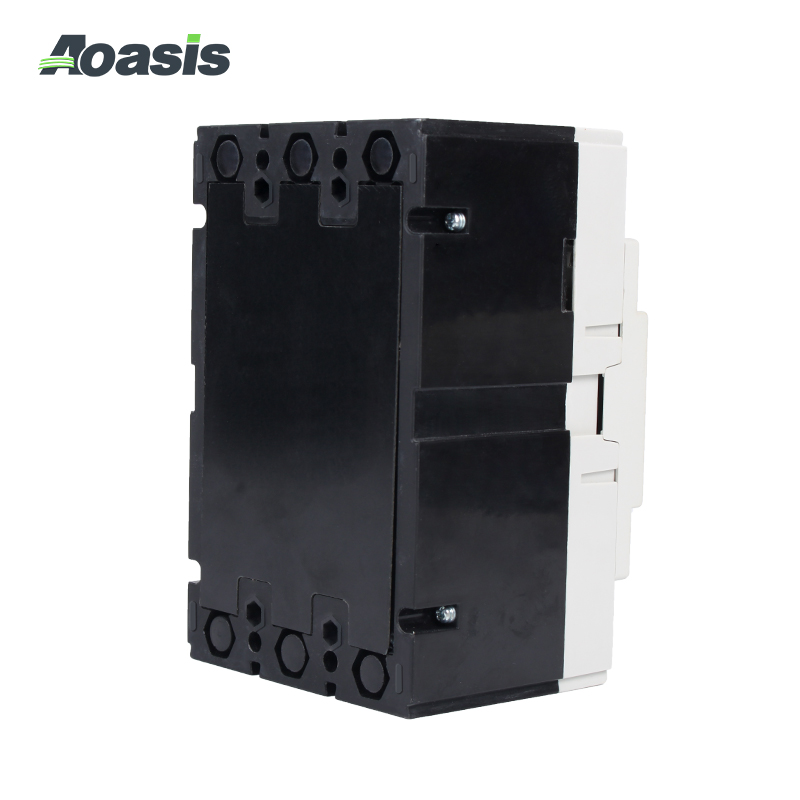

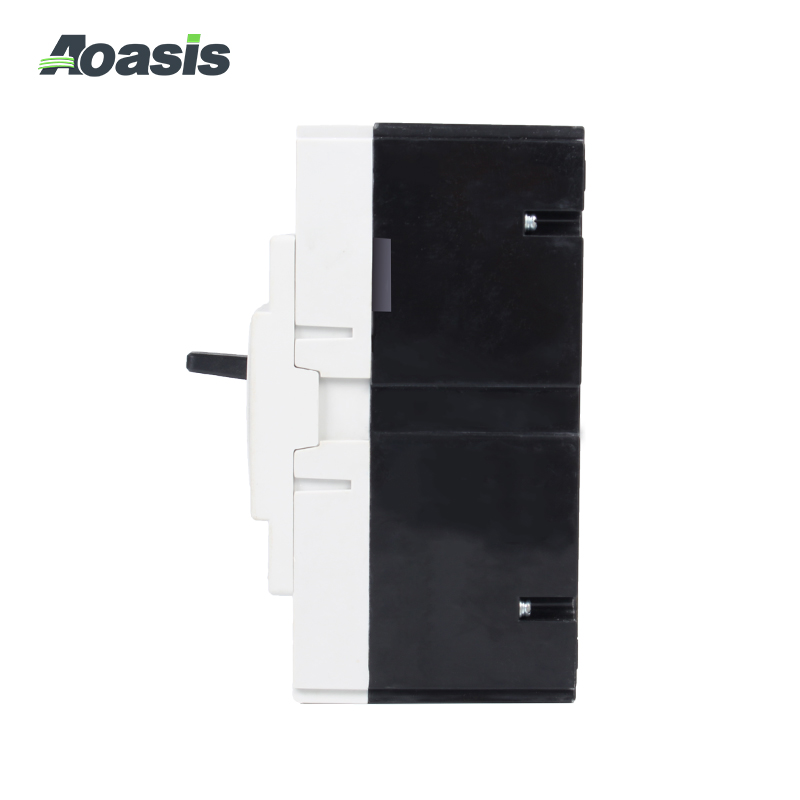

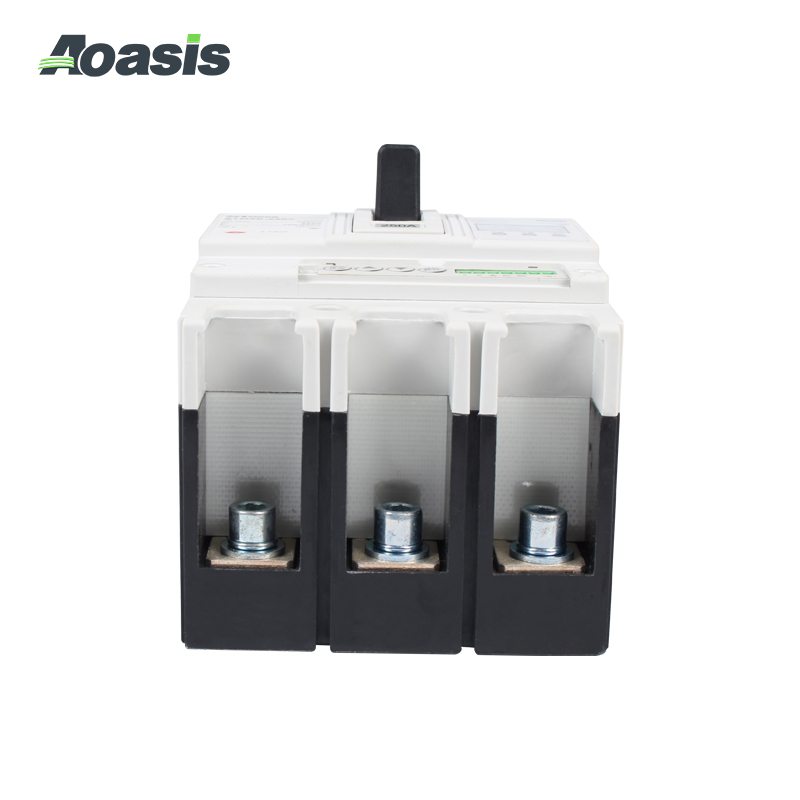

Product structure：

1	Mounting holes	7	Rated voltage	13	Technical parameter
2	Manufacturer's trademark	8	Rated current	14	Don’t correspond to the IT system
3	Product model	9	Current setting range	15	Standards compliant
4	Number of poles	10	Circuit breaker with isolation function	16	Description of Indicator function
5	Frame grade	11	Trip button	17	Closing, tripping, opening
6	Breaking capacity	12	Moulded Case Circuit Breaker	18	Controller operation instructions

Outline and installation dimensions（mm）：

Temperature	AOMEY-250		AOMEY-400		AOMEY-630		AOMEY-800
Model	3P	4P	3P	4P	3P	4P	3P	4P
L	165		257		275.5		275.5
W	105	140	140	184	210	280	210	280
A	35		43.5		70		70
B	144		230		243.5		243.5
C	24		31		45		45
D	21		29		30		30
E	22.5		31.5		24		26
F	116		155		155		155
a	126		194		243		243
b	35		44		70		70
Φd	4×Φ4.5		4×Φ7		4×Φ8		4×Φ8
