Product Selection：
Technical Parameters：
|
Type |

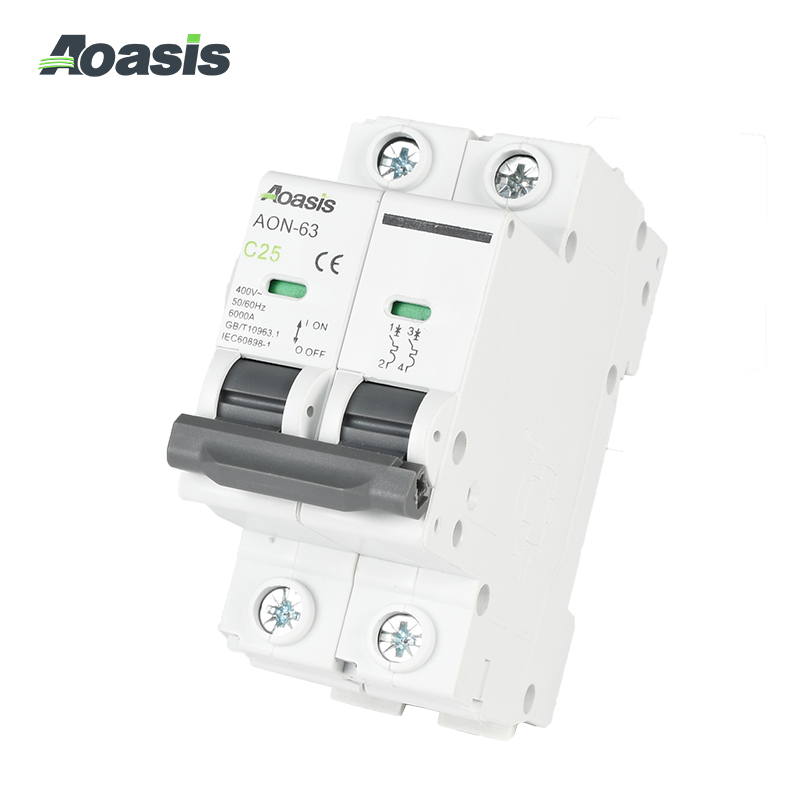

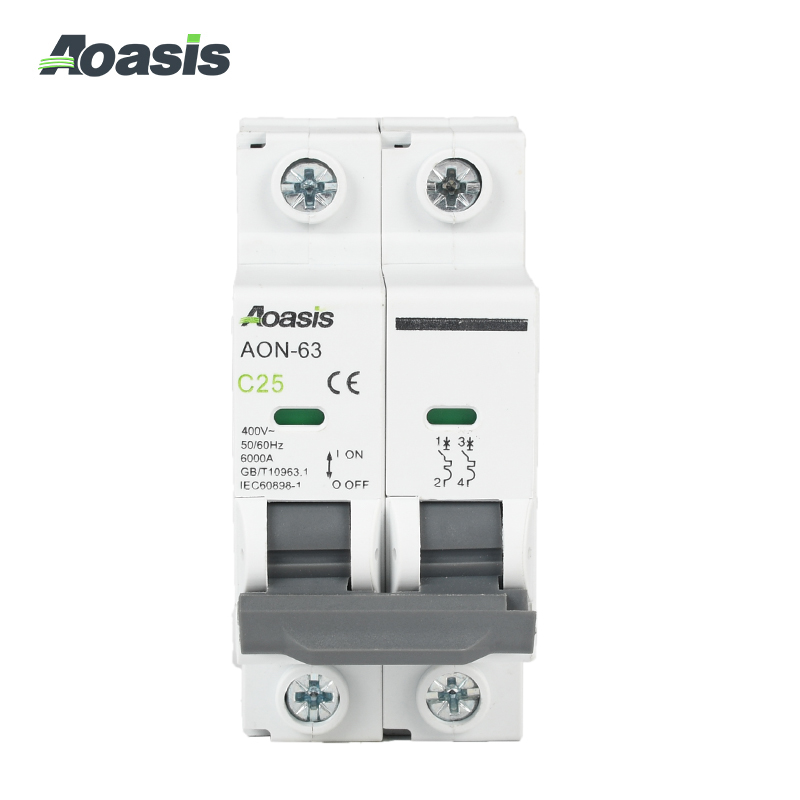

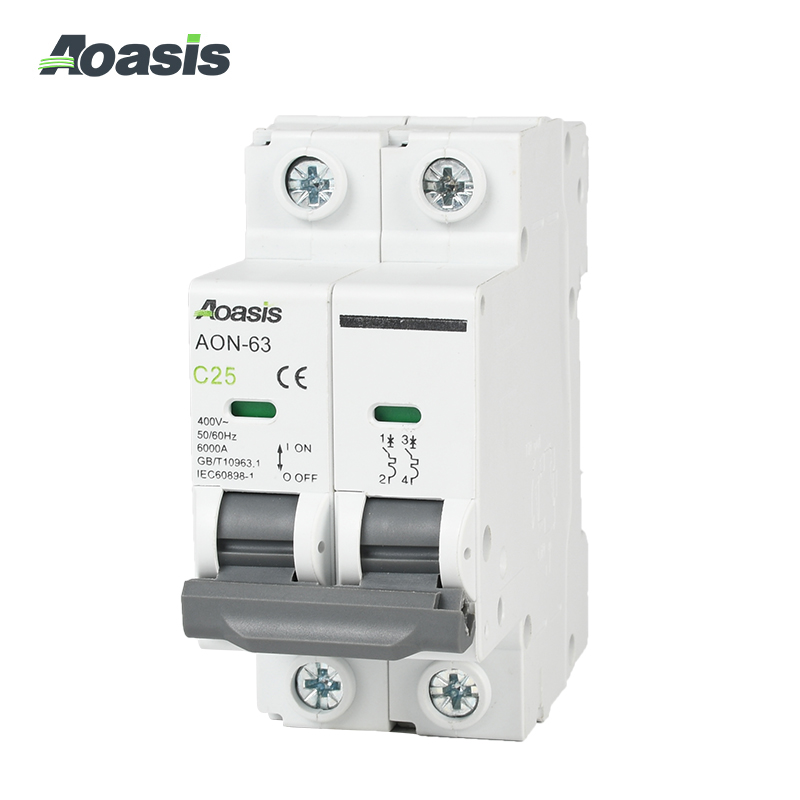

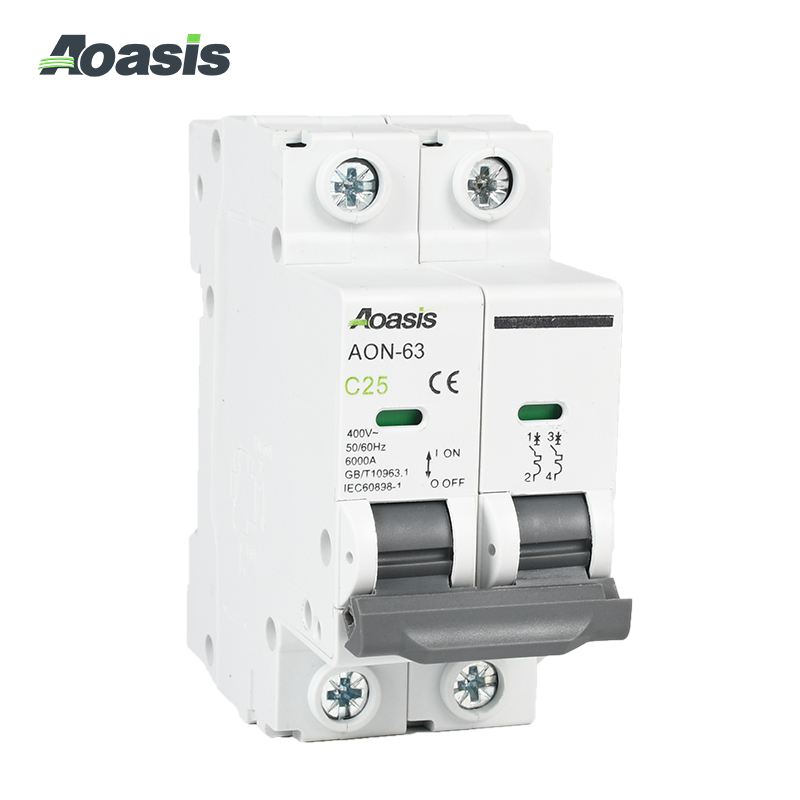

AON-63 |
|
Standard |
IEC60898-1,GB10963.1 |
|
Functions |
Short-Circuit Protection、Overload Protection、Isolation Function |
|
Frame Current(A) |
63 |
|
Pole |
1P、2P、3P、4P |
|
Rated Current(A) |
2、4、6、10、16、20、25、32、40、50、63 |
|
Rated Voltage(V) |
AC230(1P)、AC230/400(2P、3P、4P) |
|
Rated Insulation Voltage |
AC 500 |
|
Rated Impulse Withstand Voltage(KV) |
4 |
|
Rated Short-Circuit Breaking Capacity |
4.5KA、6KA |
|
Rated Ultimate Short-Circuit Breaking Capacity |
4.5KA、6KA |
|
Rated Opetating Short-Circuit Breaking Capacity |
4.5KA、6KA |
|
Trip Curve |
B(3In~5In) |
|
C(5In~10In) |
|
|
D(10In~14In) |
|
|
Release Form |
Thermomagnetic Release |
|
Electrical Life |
10000 |
|
Mechanical Life |
20000 |
|
Pollution Grade |
2 |
|
Protection Level |
IP20 |
|
Temperature |
-35℃~ +70℃ |
|
Altitude |
Do not Exceed 2000m |
|
Wiring Terminal |
Screw Crimping |
|
Max. Connection Capacity (m㎡) |
25 |
|
Max.Ultimate Torque (Nm) |
2.5 |
|
Installation Category |
II、III |
|
Installation Method |
TH35-7.5 Standard DIN rail |
|
lncoming Wiring Method |
Can Be Installed Up or Down |
Outline Overall and Installation Dimensions (mm)：
