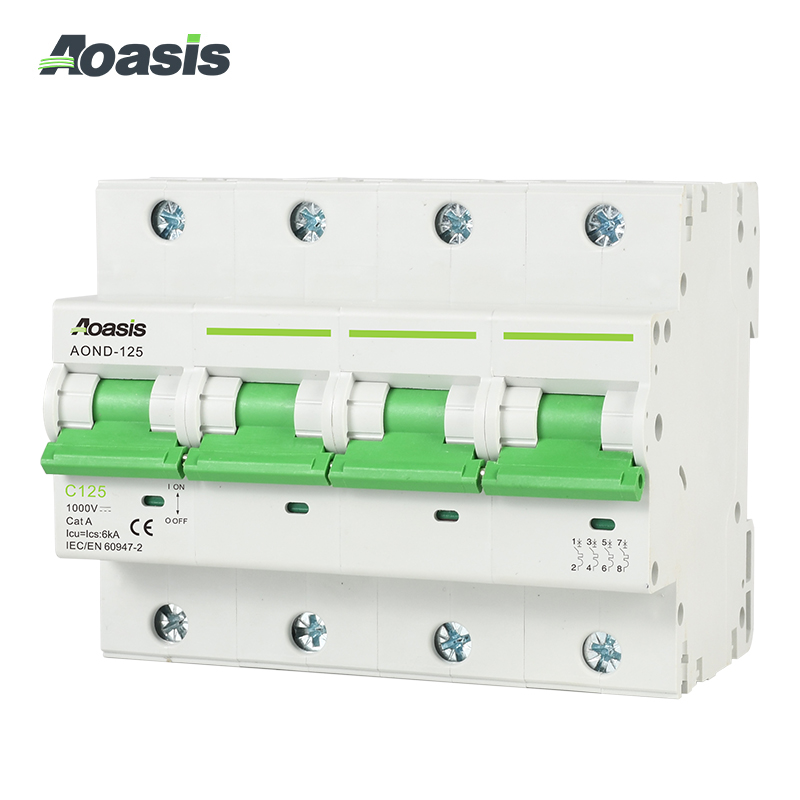

AOND-125 4P DC Miniature Circuit Breaker (MCB)

DC Miniature Circuit Breaker (DC MCB)

Characteristics

AOND series DC miniature circuit breaker is suitable for overload and short circuit protection in rated voltage DC 250-1000V, rated current up to 125A. The circuit breaker can quickly disconnect the fault current of the DC distribution system, in order to protect the photovoltaic module from the harm of high DC reverse current and AC feedback current caused by the fault of the inverter, and ensure the reliable operation of the solar photovoltaic power generation system.

Inquiry

Product Details

Product Selection：



Technical Parameters：

Model
 AOND-63
 AOND-125
Rated current (A)
 6、10、16、20、25、32、40、50、63
 63、80、100、125
Pole number
 1P、2P、3P、4P
Rated voltage (V)
 1P:DC250V    2P:DC500V    3P:DC750V    4P:DC1000V
Rated short-circuit capacity
 6
Instantaneous trip form
 Distribution protection
Rated impulse withstand voltage
 4
Rated insulation voltage
 1200
Life span
 Electrical life: 10000 times,Mechanical life:20000 times
Usage environment
 Ambient temperature:-25℃ to +40℃
Maximum connection capacity
 25mm2
Meet the standard
 IEC 60947-1GB14048-2IEC60898-2 GB14048-1
Pollution
 2
Protection level
 IP20
Temperature
 -35℃~+70℃
Altitude
 Do not exceed 2000m
Wiring terminal
 Screw crimping
Max.ultimate torque(Nm)
 2.5
Installation category
 II、III
Installation method
 TH37-7.5 type DIN rail
Incoming wiring method
 Can be installed up or down


Dimensions (mm)：
