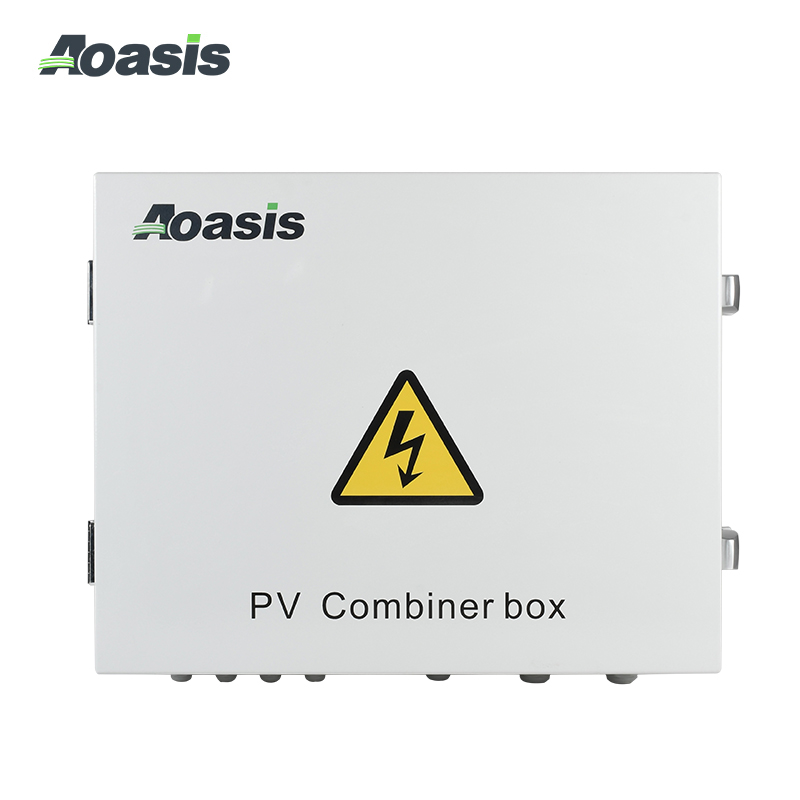

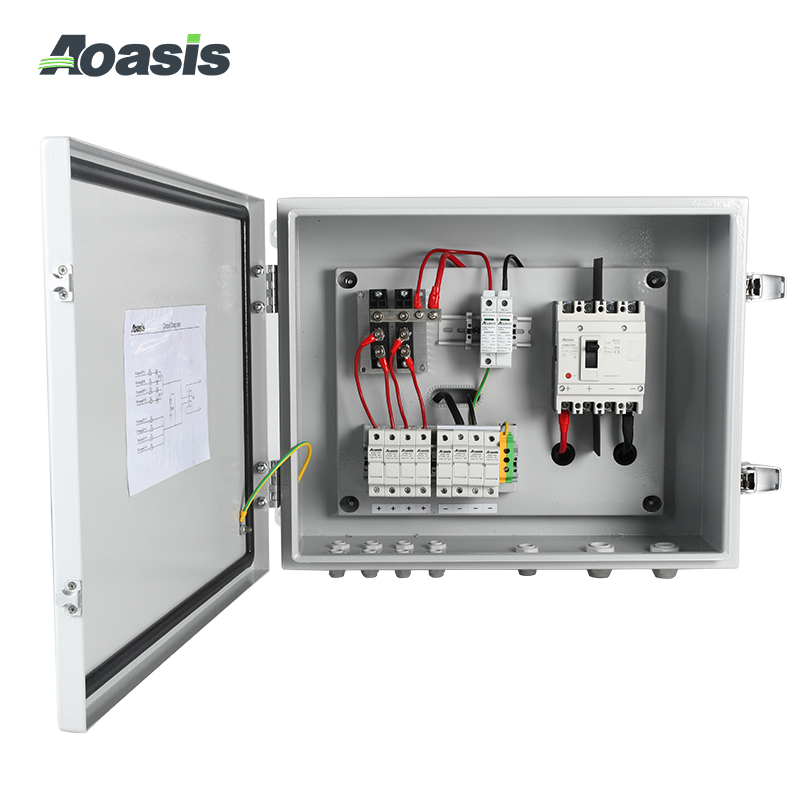

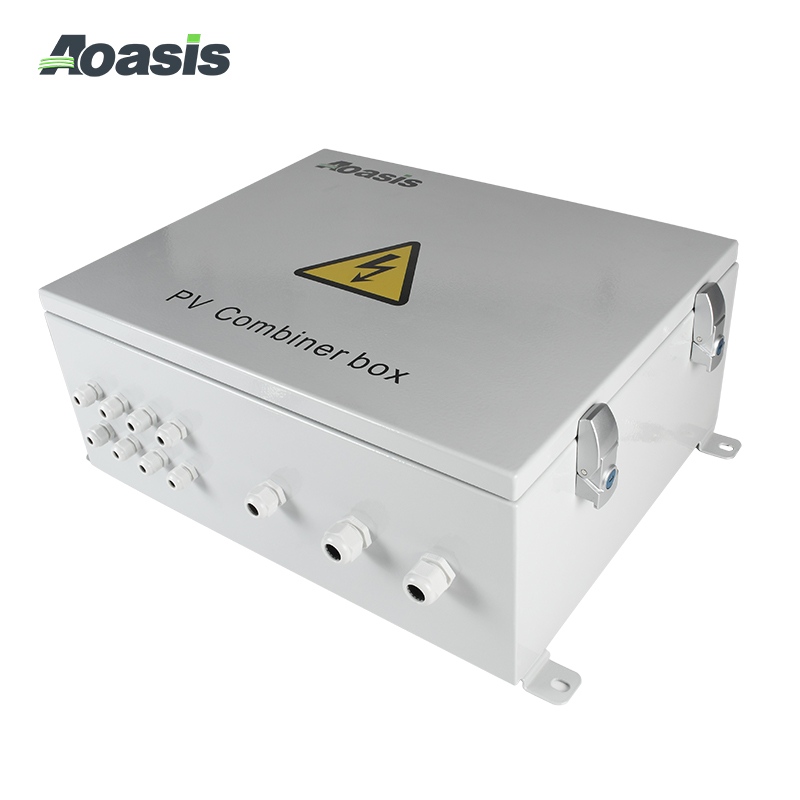

AOPV-M Solar DC PV Combiner Box

PV Combiner Box

Characteristics

AOPV series PV Combiner box means that the user can connect a certain number of photovoltaic cells with the same specifications in series to form a photovoltaic series, and then a number ofphotovoltaic series and parallel access to the PV Combiner box, in the PV Combiner box. After the convergence in the PV Combiner box, it can be used through the controller, DC distribution cabinet, photovoltaic inverter and AC distribution cabinet to form a complete photovoltaic power generation system.

Inquiry

Product Details


Product Characteristics:

1、The metal box is made of hot-dip galvanized steel, and the plastic box is made of ABS
2、The product can be connected to up to 24 ways photovoltaic arrays at the same time, with the functions of lightning protection, salt-fog protection,short circuit protection, overcurrent protection.etc.
3、Protection grade lP65
4、Foaming rubber sealing strips are affixed to the box door to prevent dust andrain infiltration
5、Safe, reliable, stable and durable, easy to install

6、Protect the personal safety of users to the maximum extent


Product Selection




Technical Parameter:

Model(AOPV-M) 2/1 3/1 4/1 6/1 8/1 10/1 12/1 1/16 1/20 1/24
DC inputgroup series 2 3 4 6 8 10 12 16 20 24
DC output group series 1 1 1 1 1 1 1       1 1 1
Maximum  input  voltage  (DC) 1000V                                 1000V/1500V
Maximum DC short circuit current 15A/20A/String(Optional)
Maximum DC output current(DC) 80A 80A 100A 100A 125A 160A 180A 250A 315A 400A
Cabinetmaterial Metal
Anti-UV(PC/ABS) Yes
Protection class IP65
Collision  protection  class IK10
Body size Customization
DCinputport M16/(Φ4-8mm)
DC output port M18~M63(selectable)
Grounding port M20(Φ6.7-12mm)
DC circuit breaker
Rated insulation voltage (DC) 1000V 1000V/1500V
Rated current (DC) 80A      80A 100A      100A 125A      160A 180A 250A 315A     400A
Execution standard IEC60947-1,GB14048.2,IEC60898.2,GB14048.1
DC surge protector
Maximum  operating  voltage  (DC) 1000V 1000V/1500V
Maximum  discharge  current  (DC) 40kA
Standard EN50539-11 Type2
DC FUSE
Rated operating voltage 1000V 1000V/1500V
额定电流Rated current 15/20A(Optional
尺寸Size(mm Φ10*38 Φ10*38/Φ10*85
Environmental parameters
Working temperature -20°℃~+60℃
Working humidity 99%(Without condensation)
The altitude 2000m(Load reduction above 2000m)
Installation Wall mounting
Optional functior
ntelligent DC monitoring unit Optiona
Antireversing diode Optional
