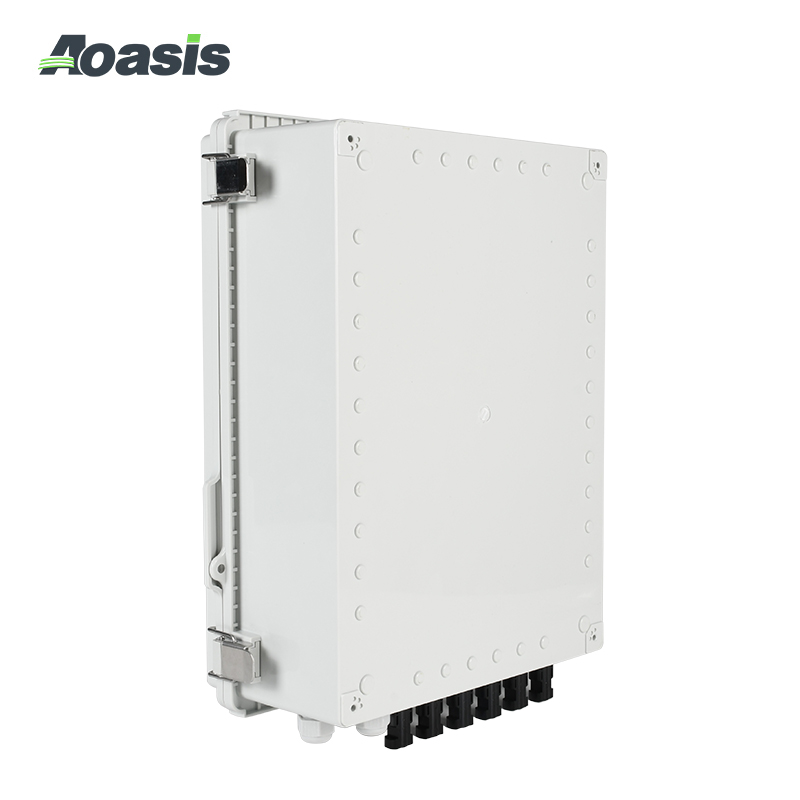

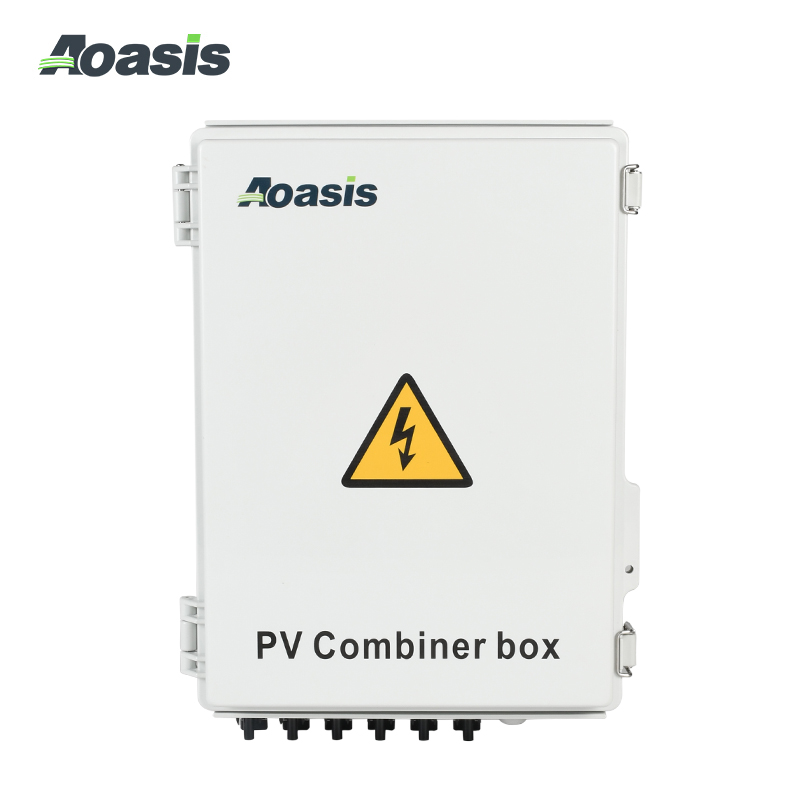

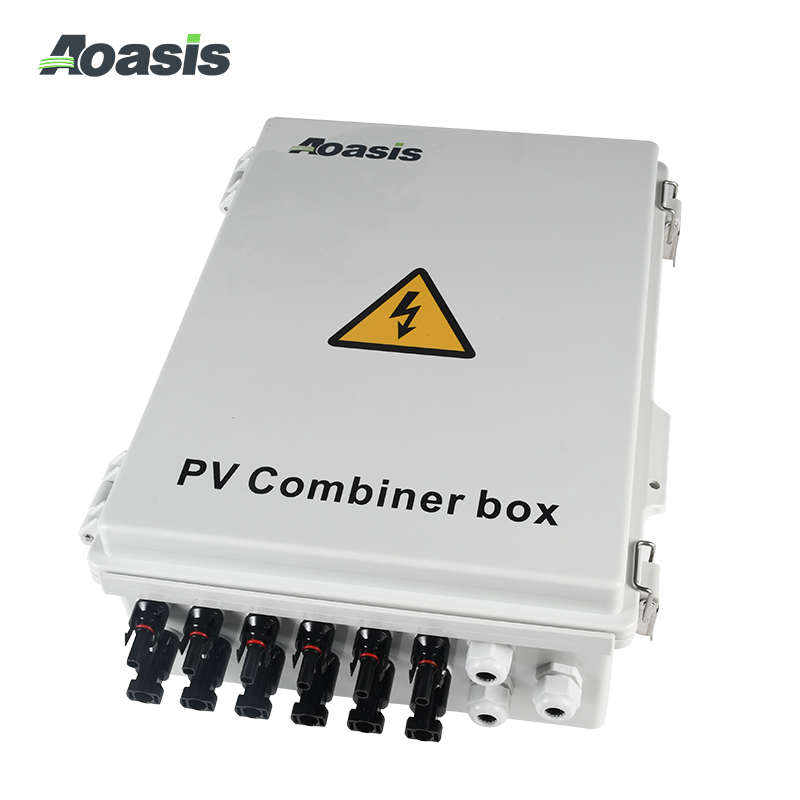

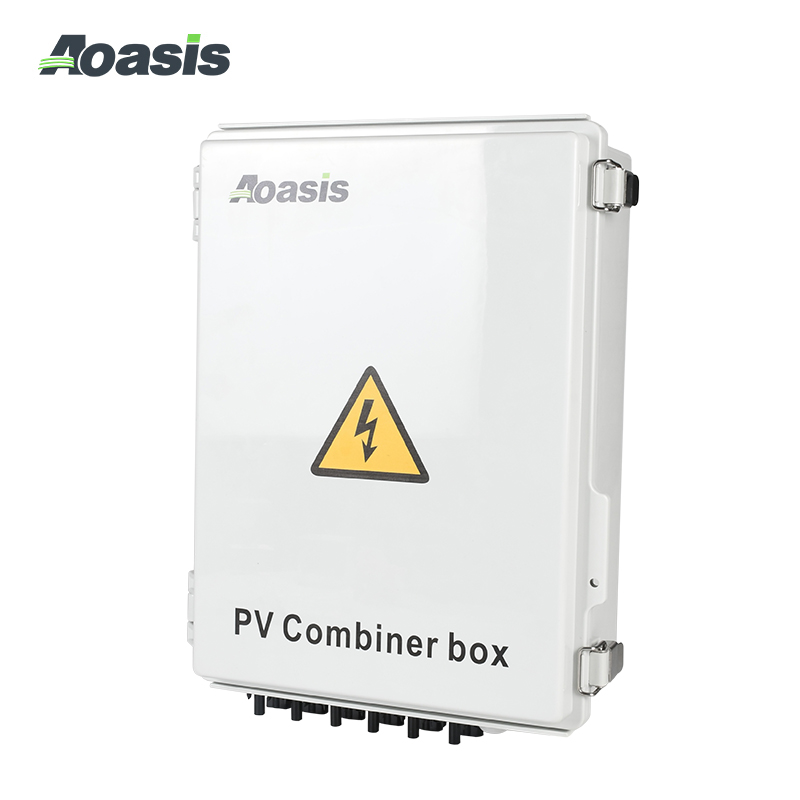

AOPV-P Solar DC PV Combiner Box

PV Combiner Box

Characteristics

AOPV series PV Combiner box means that the user can connect a certain number of photovoltaic cells with the same specifications in series to form a photovoltaic series, and then a number ofphotovoltaic series and parallel access to the PV Combiner box, in the PV Combiner box. After the convergence in the PV Combiner box, it can be used through the controller, DC distribution cabinet, photovoltaic inverter and AC distribution cabinet to form a complete photovoltaic power generation system.

Inquiry

Product Details


Product Characteristics:

1、The metal box is made of hot-dip galvanized steel, and the plastic box is made of ABS
2、The product can be connected to up to 24 ways photovoltaic arrays at the same time, with the functions of lightning protection, salt-fog protection,short circuit protection, overcurrent protection.etc.
3、Protection grade lP65
4、Foaming rubber sealing strips are affixed to the box door to prevent dust andrain infiltration
5、Safe, reliable, stable and durable, easy to install

6、Protect the personal safety of users to the maximum extent


Product Selection




Technical Parameter:

Model(AOPV-□□P 2/1 3/1 4/1 6/1 8/1
DC inputgroup series 2 3 4 6 8
DC output group series 1 1 1 1 1
Maximum input voltage (DC)
1000V
Maximum DC short circuit current
15A/20A/String(Optional)
Maximum DC output current(DC)
80A 80A 100A 100A 125A
Cabinet materia Plastic
Anti-UV(PC/ABS Yes
Protection class IP65
Body size Customization
DC input port M16/(φ4-8mm)
DC output port M18~M40(selectable)
Grounding port M20(φ6.7-12mm
MC4  Photovoltaic  connector

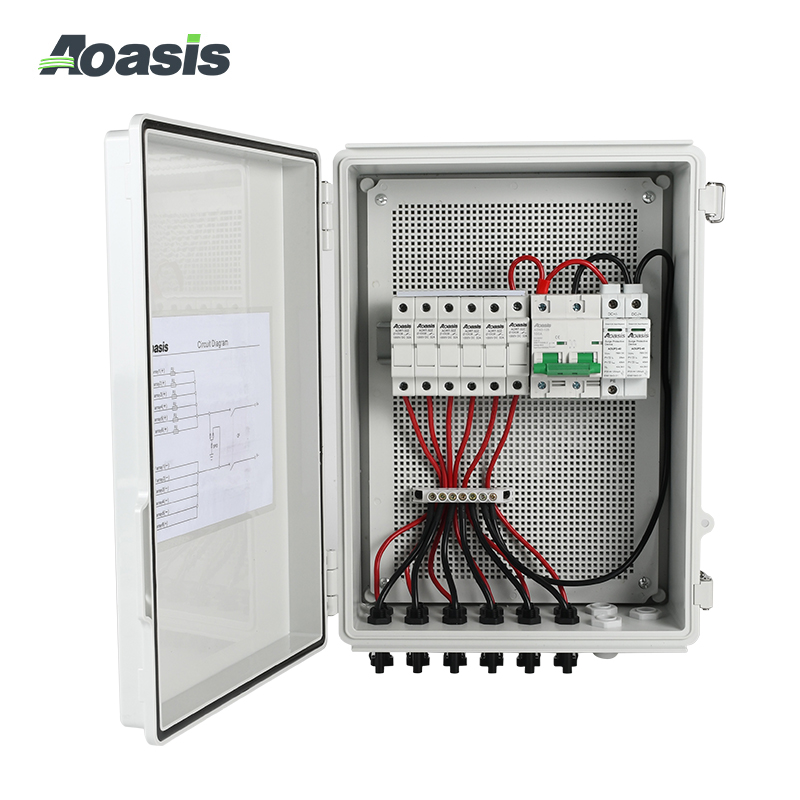

Standard configuration
DC circuit breaker
Rated insulation voltage (DC
1000V
Rated current (DC) 80A 80A 100A 100A 125A
Execution standard IEC60947-1,GB14048.2,IEC60898.2,GB14048.1
DC surge protector
Maximum  operating  voltage  (DC)
1000V
Maximum discharge current (DC)
40kA
Standard EN50539-11 Type2
DC fuse
Rated operating voltage
1000V
Rated current 15/20A(Optional)
Size(mm φ10*38
Environmental parameters
Working temperature -20°℃~+60℃
Working humidity 99%(Without condensation
The altitude 2000m(Load reduction above 2000m
Installation Wall mounting
