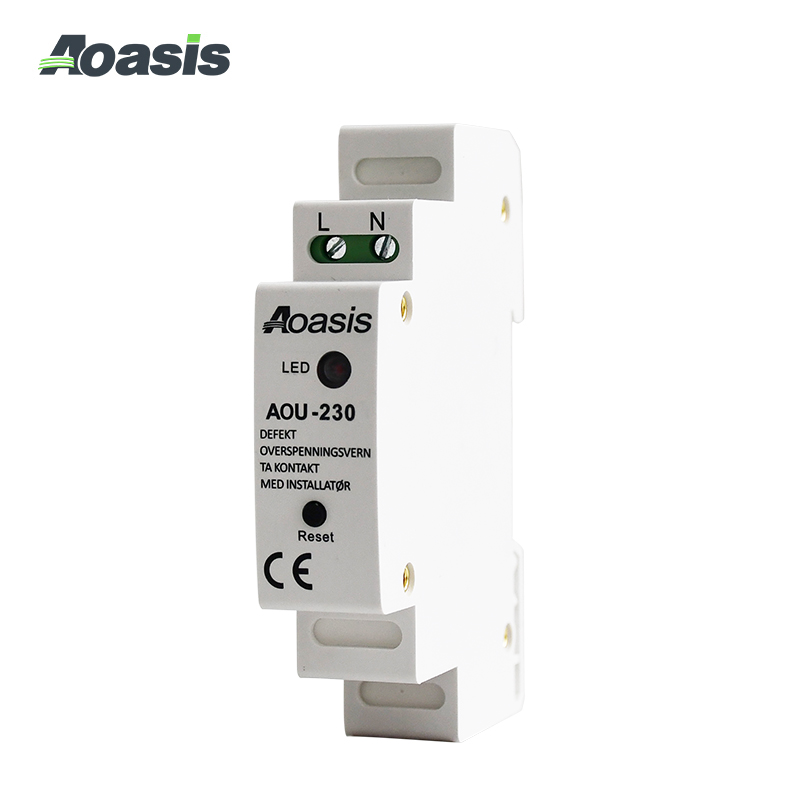

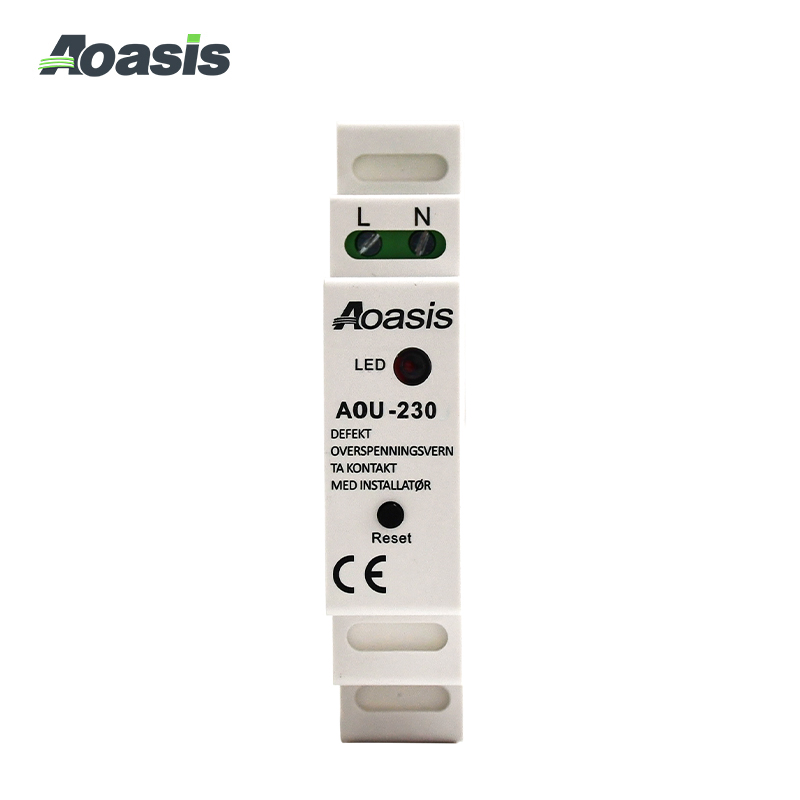

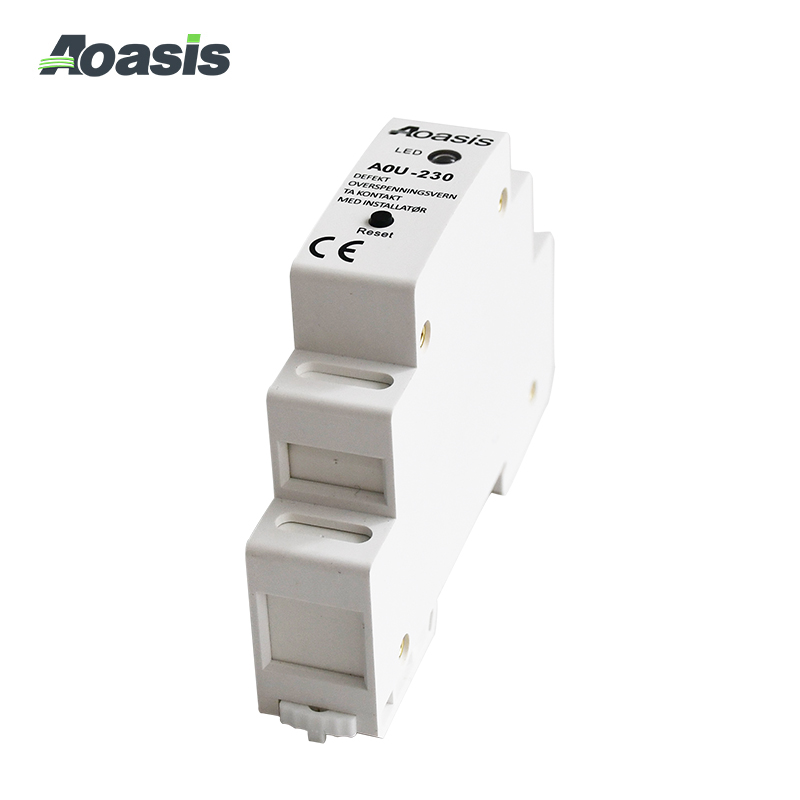

AOU-230 Modules for the remote display and operation of protective and switching devices. Display and indicator panel is provided for the remote optical and audible presentation of the switching status of protective and monitoring device s with signaling contacts.
Electrical parameters：
| Type | AOU-230 |
| Standards | IEC 60947-1-2007 + A1-2010 + A2-2014 |
| Rated operational voltage (AC) | 230V(195.5...253V) |
| Current consumption (AC) | 0.03A |
| Operating frequency | 50Hz |
| Number of ports | 1 |
| Type Category | LED(red) |
| Clamping area | 0.4mm2 ~2.5mm2 |
| Tightening torque | Max.0.6Nm |
| Duty cycle | Continuous operation |
| Operating position | Optional |
| Installation type | 35mm DIN-rail, in accordance with :EN 50022/DIN46277-3 |
| Housing protection level | IP20 |
