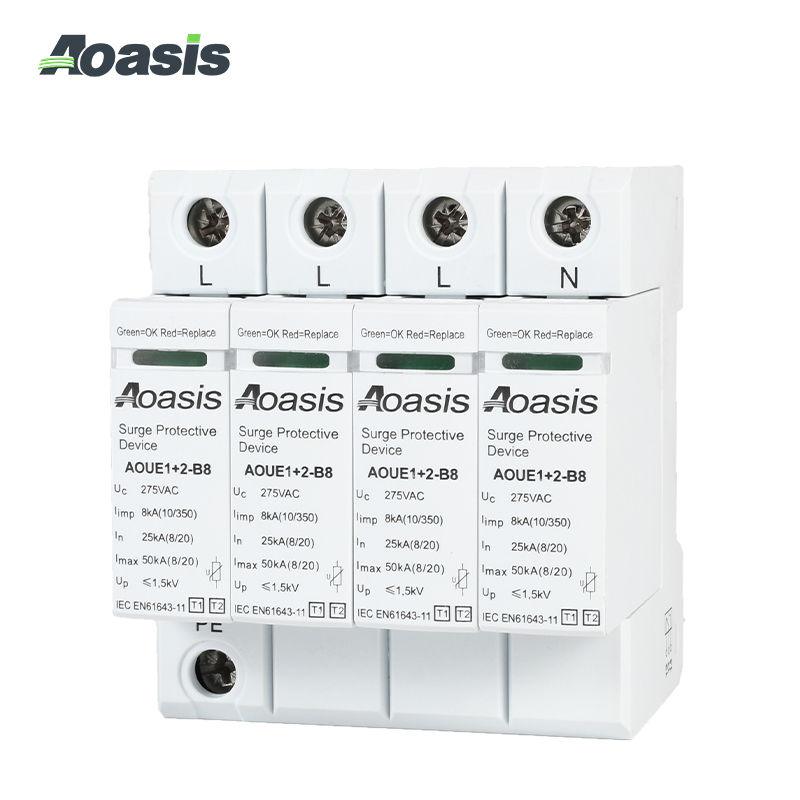

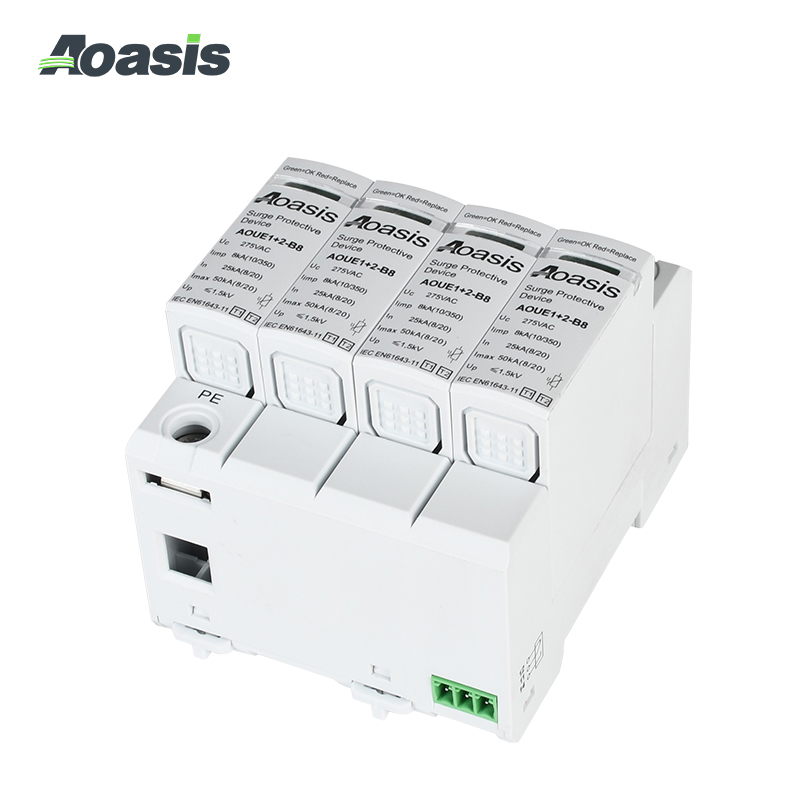

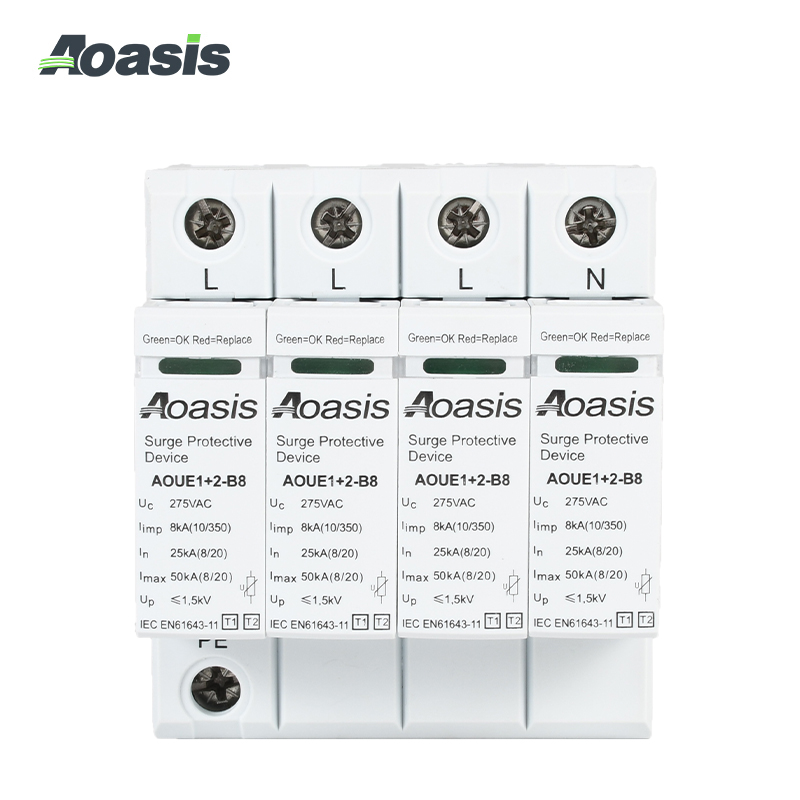

AOUE1+2-B8 4P AC Surge Protective Device

AOUE Type 1+2

Characteristics

The AOUE1+2 line is a group of Class I+II Surge Protective Devices. They are intended as a protecti-on against indirect and low intensity direct hits of lightning strokes. In standard three phase TN-C grid, they provides protection to LPL III, IV requirements given in EN 62305 with total lightning current introduced into electrical installation of 37.5 kAand totallightning stroke current 75 or 100kA based on physical conguration and mutual position of grounding point of lightning rod, grounding point of the electrical installation and place of SPD installation.

Inquiry

Product Details

Electrical parameters：

Poles 1+0、2+0、3+0、4+0、1+1、3+1 1+1、3+1
(L-N/PE/PEN) (X+1 NPE)
Standards EN 61643-11
Category lEC/VDE Type1+2(Classl+ll,B+C,T1+T2)
Technology MOV (Varistor) GDT(Spark-gap)
Reference test voltage 250VAC
Max.continuous operating voltage 275VAC 255VAC
Nominal frequency 50/60Hz
Nominal discharge current（8/20） In 25 kA per pole 50 kA per pole
Max.discharge current（8/20） Imax 50 kA per pole
Lightning impulse current（10/350） limp 8 kA per pole 12.5 kA per pole 50 kA per pole
Voltage protection level @In <1.5kV
Response time <100 ns
FN-PE follow current interrupting rating - 100A
Max.Permissible Strength of Backup Fuse 160A gL/gG -
Mechanical parameters：

Operating temperature range
 -40℃~+80℃
Cross-section of connection wire
 Single-strand:35mm2;multi-strand:25mm2
Torque applied by the screws
 2.0-2.5 Nm
Installation
 35mm Installation DIN-rail, in accordance with:EN 50022/DIN46277-3
Enclosure material
 thermoplastic (UL94 V-0)
Housing protection level
 IP20
Installation width
 4 modules ,DIN 43880
Thermal disconnector
 Yes
Remote alarm contact
 Yes
Additional data for Remote Alarm Contacts
 1.5mm²/0.5Nm, max
Remote alarm contact type
 isolation C
Switching capability Un/In
 AC:250V/0.5A DC:250V/0.1A;125V/0.2A;75V/0.5A
Max. Size of connecting wire
 Max.1.5mm2(or# 16 AWG)

Dimensions（mm）：
