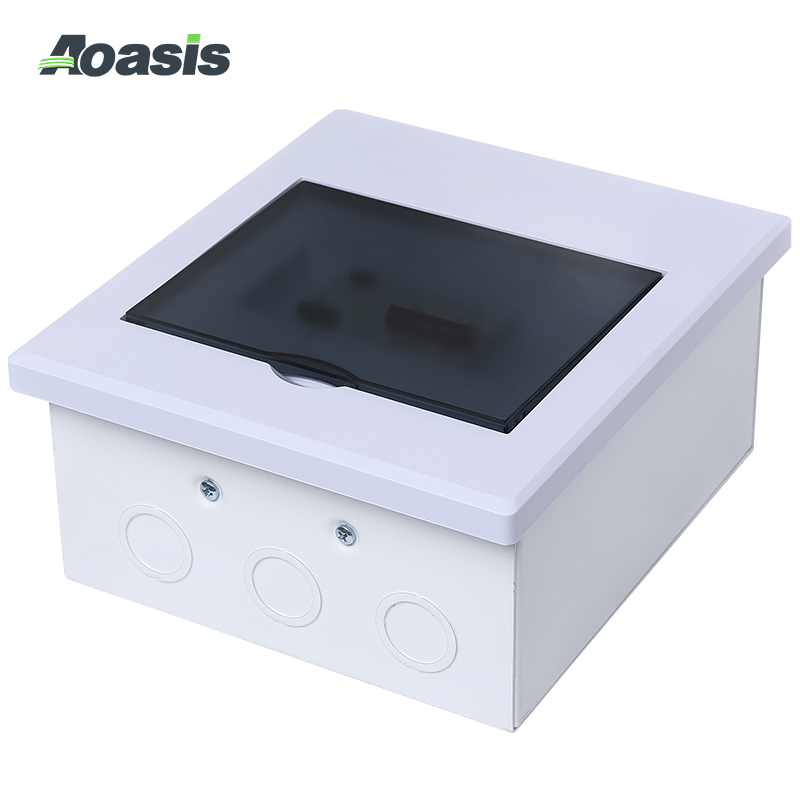

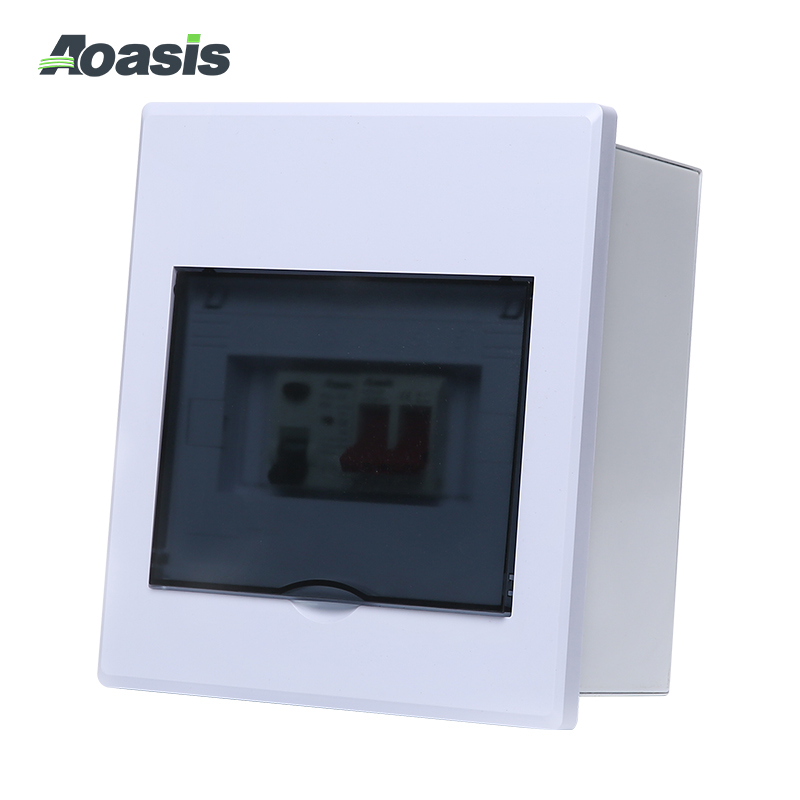

AOX-4RJ

Plastic Distribution Box

Characteristics

AOX Series Distribution Box is suitable for residences, apartments, villas, hotels,commercial buildings and other places.
Used in conjunction with Aoasis modular low-voltage power distribution products,it provides real estate developers, electrical switchgear manufacturers,and end users with a safe, stable and complete indoor low-voltage terminal power distribution solution.

Inquiry

Product Details

Video

Product Selection：


Note: The width is multiple of 18mm, 1-digit width is 18mm.


Main Parameter：

Rated Working Voltage

230/400VAC

Max.Rated Working Current

125A

Case Material

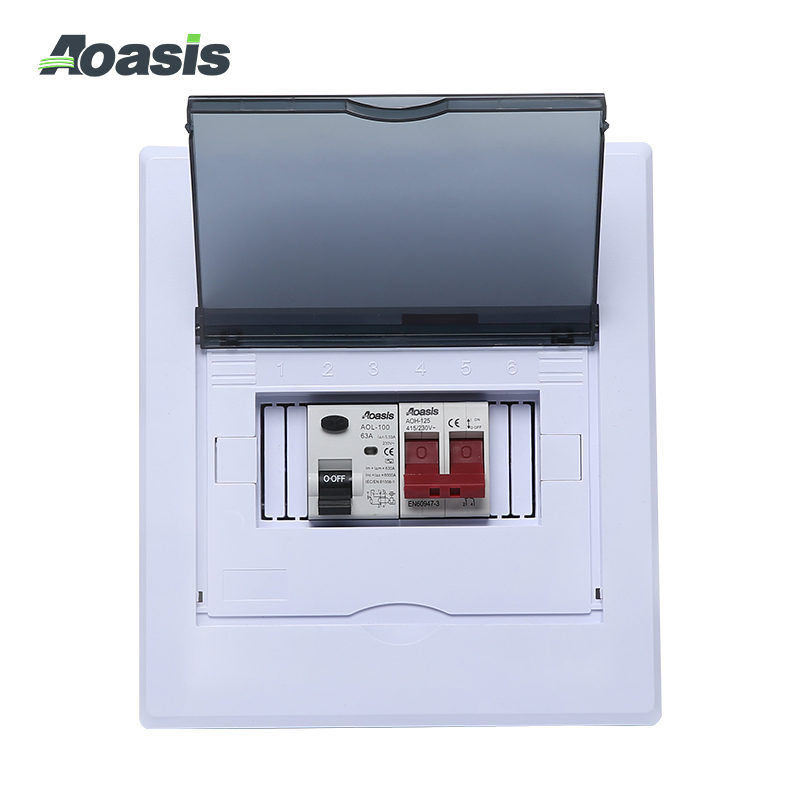

Movable door: Translucence,Panel: Ivory

The movable door is made of high quality PC material.The panel is made of ABS flame retardant material with V-0 flame retardant grade.

The bottom box is made of cold-rolled steel plate, and the edges are bent.The surface is treated with electrostatic spray, which is strong and durable and has excellent corrosion resistance.

Installation and Wiring

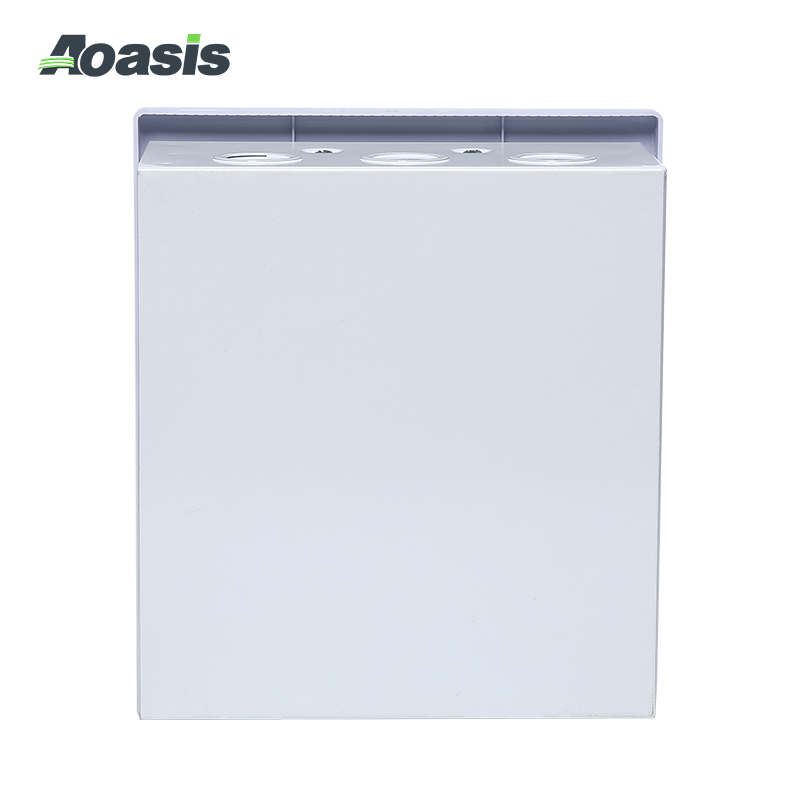

There are knockout holes on the top and bottom for easy access of wires.

There is a distance between the bottom box and the guide rail to meet the customer's wiring needs.

For easy and accurate installation, the guide rail can be fine-tuned in the vertical direction,and also can be fine-tuned up and down.

Standard

GB/T 17466.1,GB/T 17466.24

Protection Grade

Ip30



Outline Overall andInstallation Dimensions（mm）：

Type

Ways

A

B

C

D

E

F

AOX-6RJ

6P

222

237

102

205

189

90

AOX-9RJ

9P

222

250

102

205

243

90

AOX-12RJ

12P

222

305

102

205

297

90

AOX-15RJ

15P

242

360

102

225

350

90

AOX-18RJ

18P

242

416

102

225

404

90

AOX-21RJ

21P

242

470

102

225

458

90

AOX-24RJ

24P Single row

402

312

102

375

297

90
