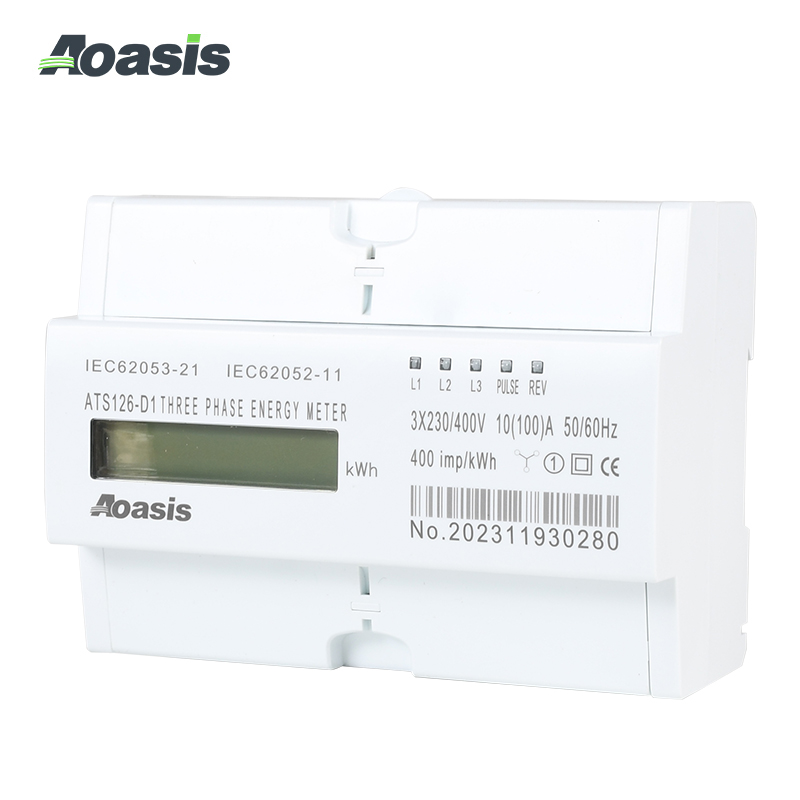

ATS126-D1 Three Phase Energy Meter

ATS126-D

Characteristics

The meter is suitable for three-phase four-wire system/three-phase three-wire system/two-phase three-wire system. The meter is designed to measure AC active energy. lt is a long-life instrument with high stability, high overload capacity, low power consumption, small size and other advantages.

Inquiry

Product Details

Basic Function

· Mechanical step register or LCD display
· Bi-directional total active energy measurement, reverse active energy measure in the total active energy
· Pulse LED indicates working of meter, Passive pulse output with optical coupling isolation
· Loss phase LED indication, Reverse connection LED indication
· For LCD display type meter, Energy data can store in memory chip more than 15 years after power off
· 35mm din rail installation



Technical Data:

Rate Voltage AC
ATS126-D1 three phase four wire 3x120/208V, 3x220/380V,3 x230/400V 3x240/415V
Working Voltage AC
0.8~1.2Un
Rate Current
5A/CT, 1.5(6)A, 5(60)A, 10(100)A, or other as required
Frequency
50Hz or 60Hz
Connection Mode
CT Type or Direct Type
Display
Mechanical step register or LCD
Accuracy Class
1.0
Power Consumption
<0.5W/5VA/each phase
Start Current
0.004lb
AC Voltage Withstand
4000V/25mA for 60s
lmpulse Voltage
6kV 1.2 μs waveform
IP Grade
IP20
Constant
400~6400 imp/kWh
Pulse Output
Passive pulse, pulse width is 80 ± 5 ms
Executive Standard
DIN 43880, IEC62053-21, IEC62052-11
Work Temperature
-30°C ~70°C
Outline Dimension
126*93*65mm


Environment:

Operating temperature
 -25℃-55℃
Storage temperature
 -40℃~80℃
Referenoe temperature
 23℃±2℃
Relative humidity
 0 to 95%, non-condensing
Altitude
 Up to2500m
Warm up time
 10S
Mechanical Environment
 M1
Electromagnetic Environment
 E2
Degree of pollution
 2



Wire connection:




Outline dimension:
