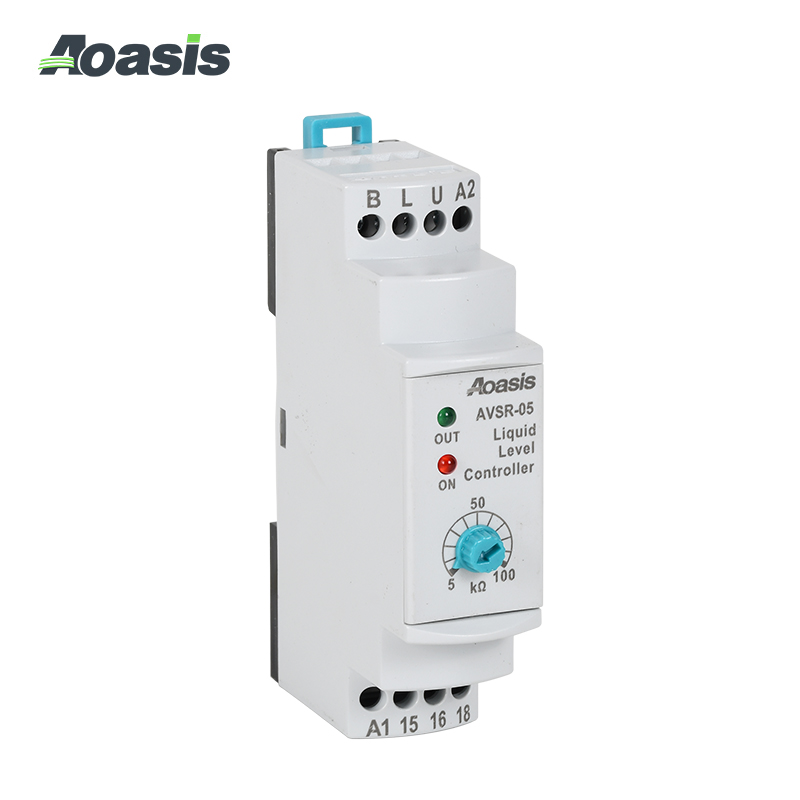

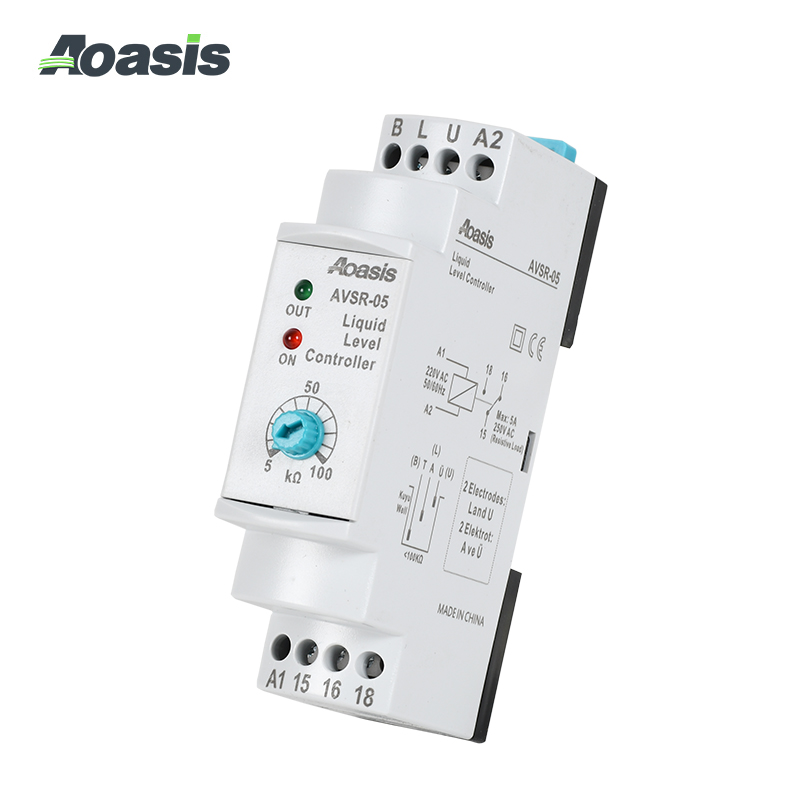

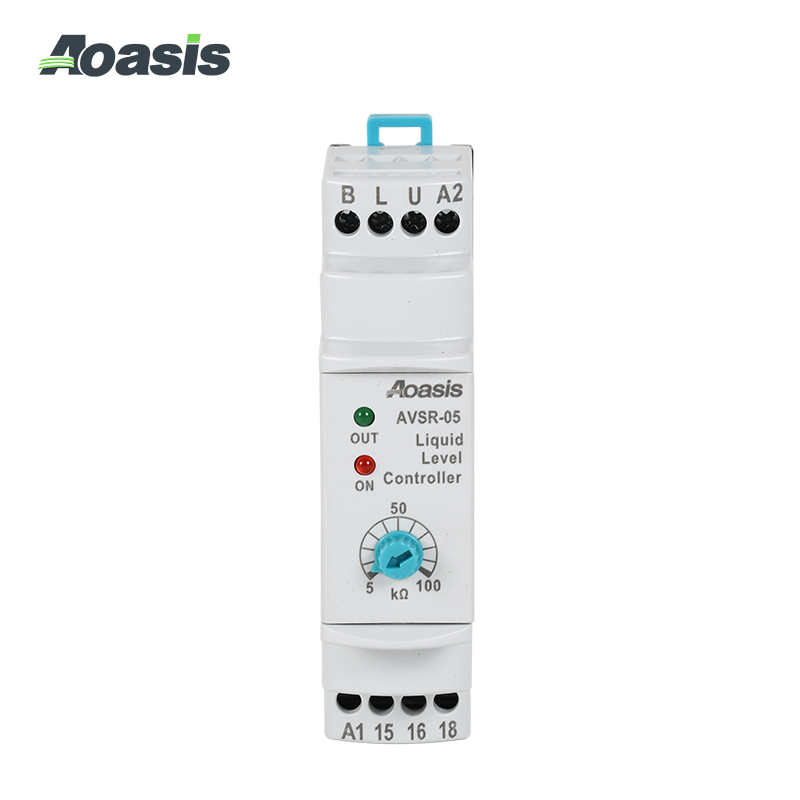

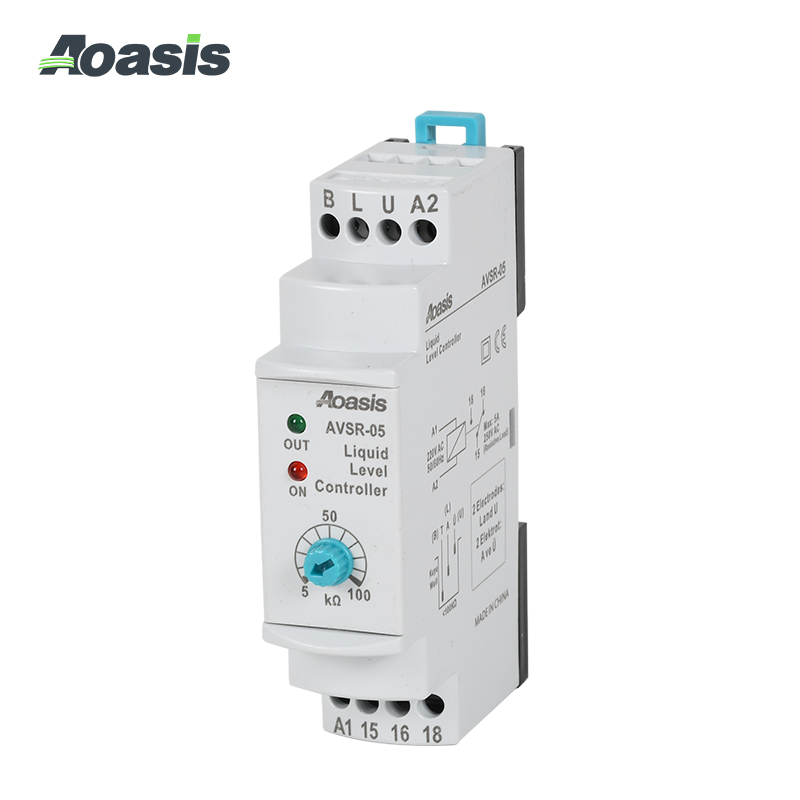

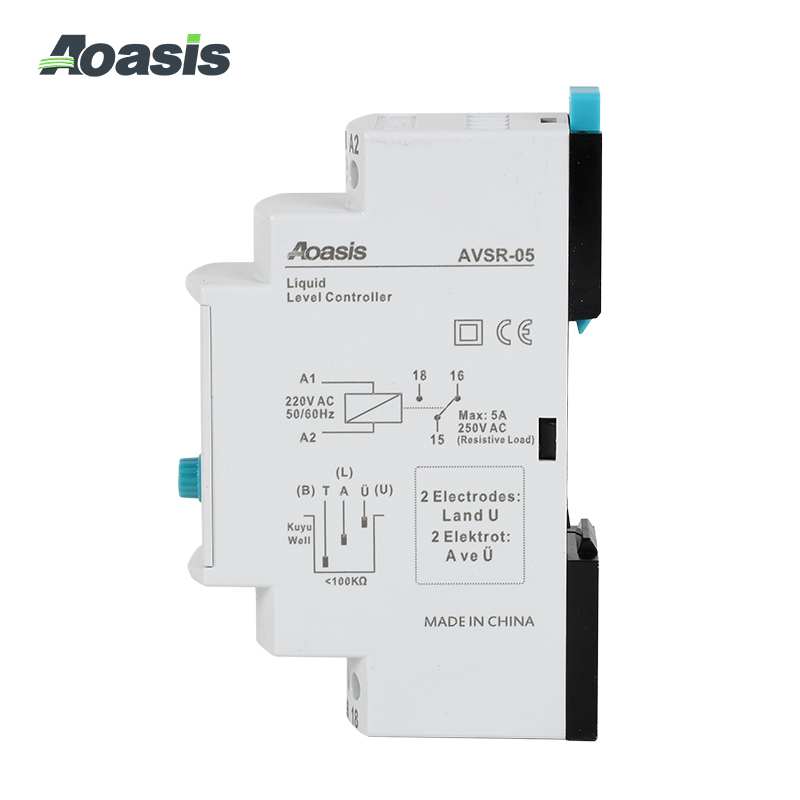

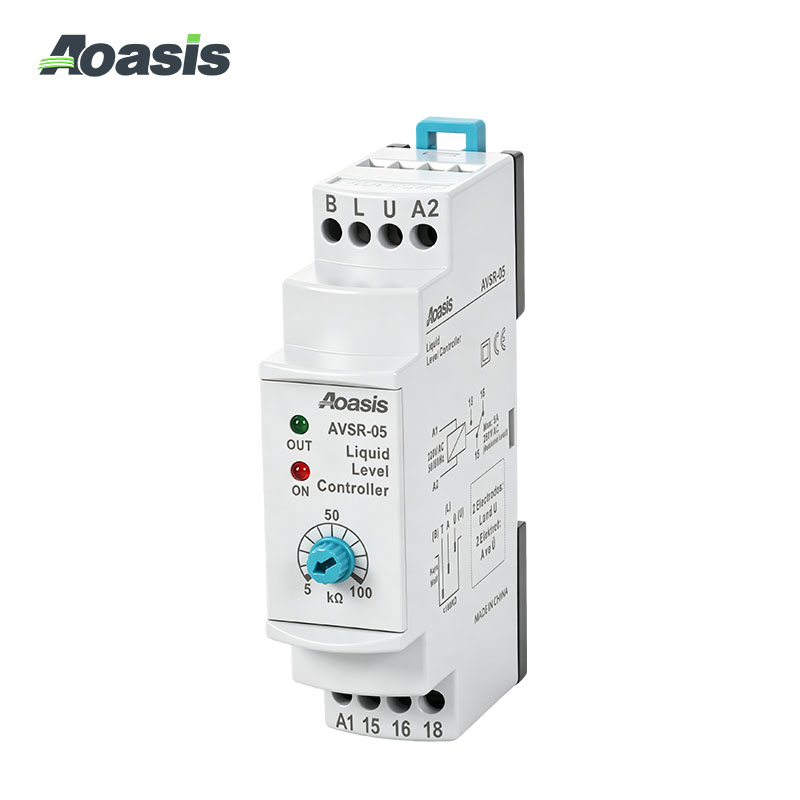

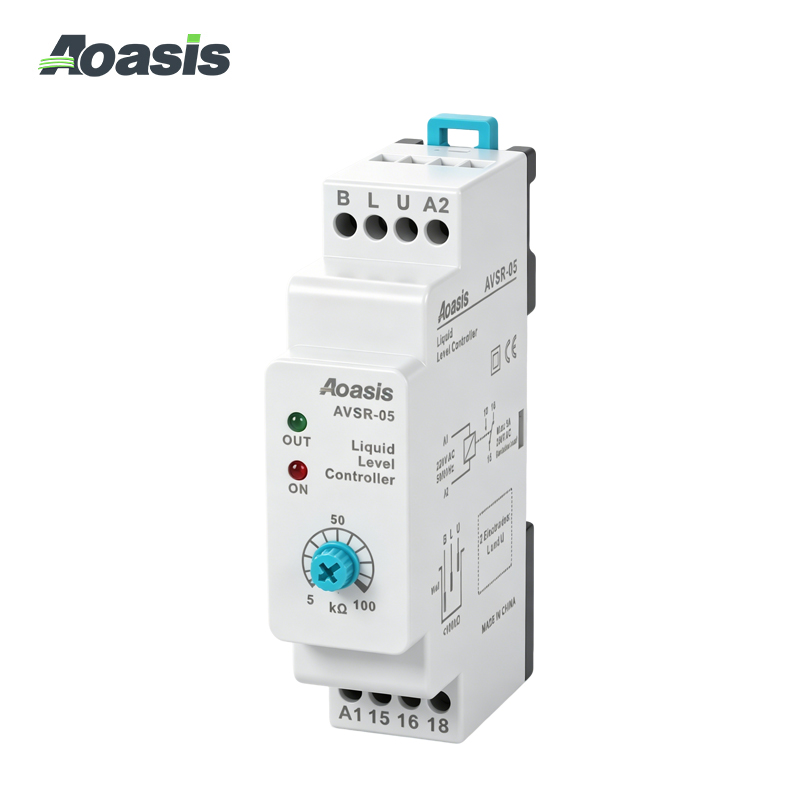

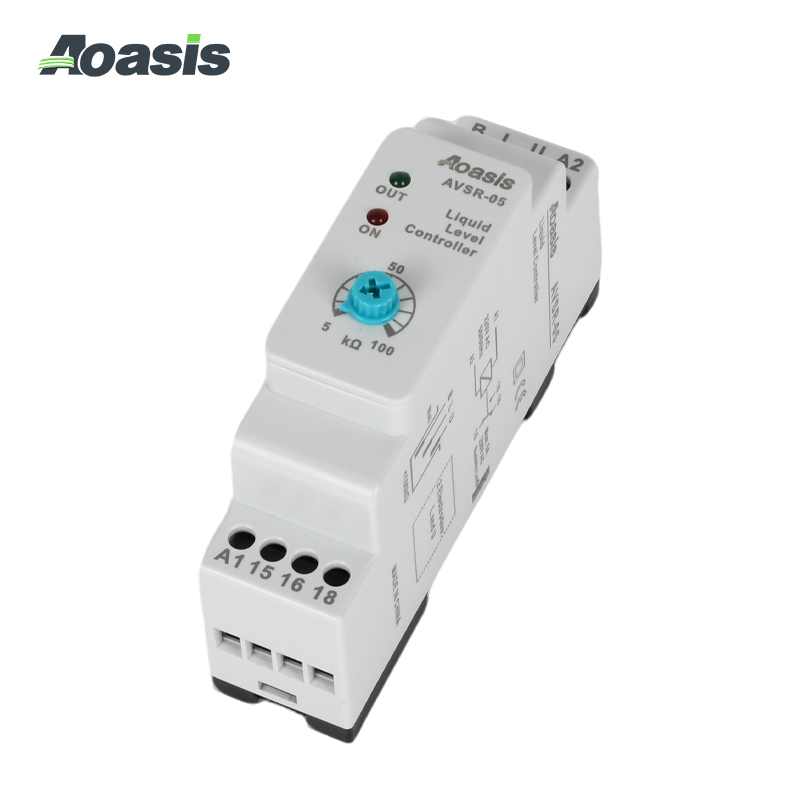

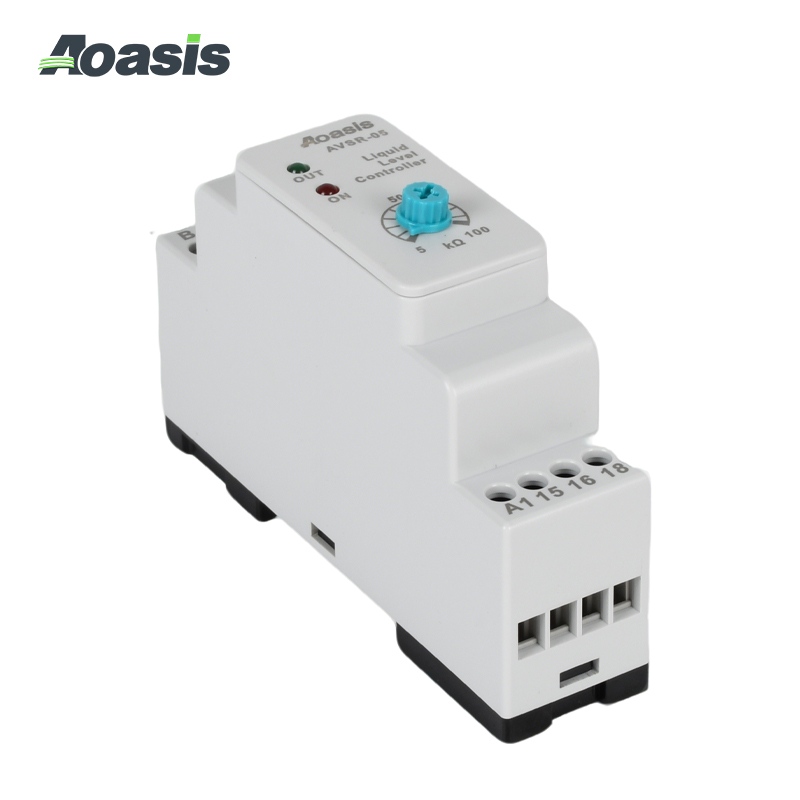

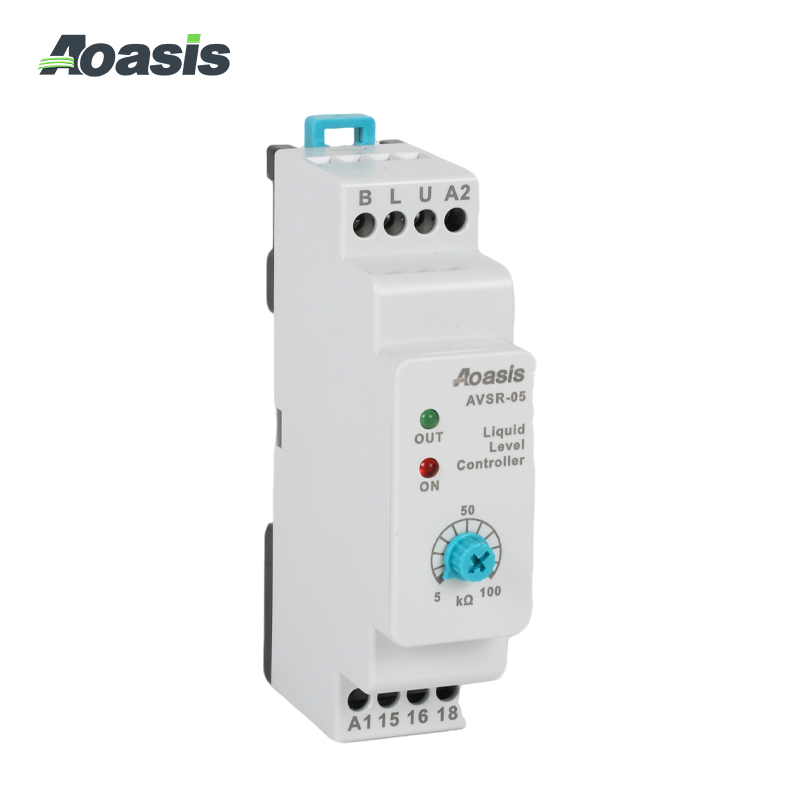

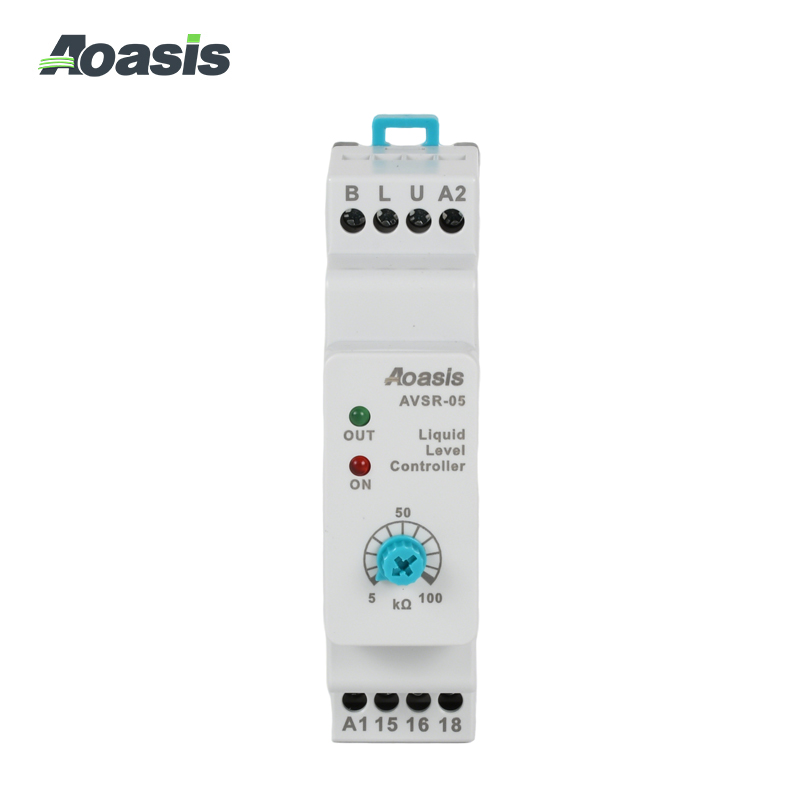

ASR-05 level control relay has been designed for controlling the discharge of tanks and wells containing conductive liquids
Technical Parameters：
|
Type |
AVSR-05 |
|
| Operating Voltage(Un) | 150V~260V AC | |
| Operating Frequency | 50/60Hz | |
| Operating Power | <6AV | |
| Operating Temperature | -20℃~+55℃ | |
| Contact | 5A/250V AC(Resistive Load) | |
| Sensitivity | 5k~100KΩ | |
| Cable Diameter | 1.5m㎡ | |
|
Mounting |
din rail |
|
|
Operating Altitude |
<2000米 meter |
|

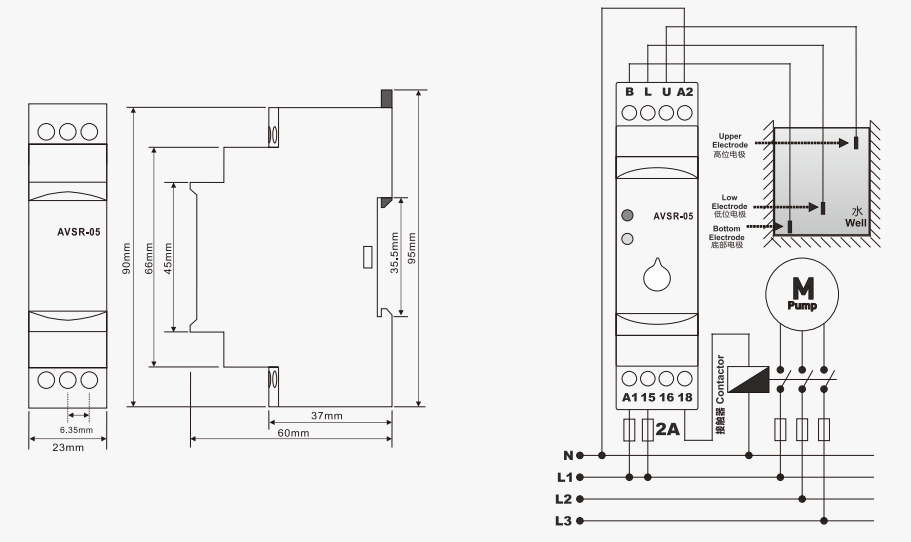

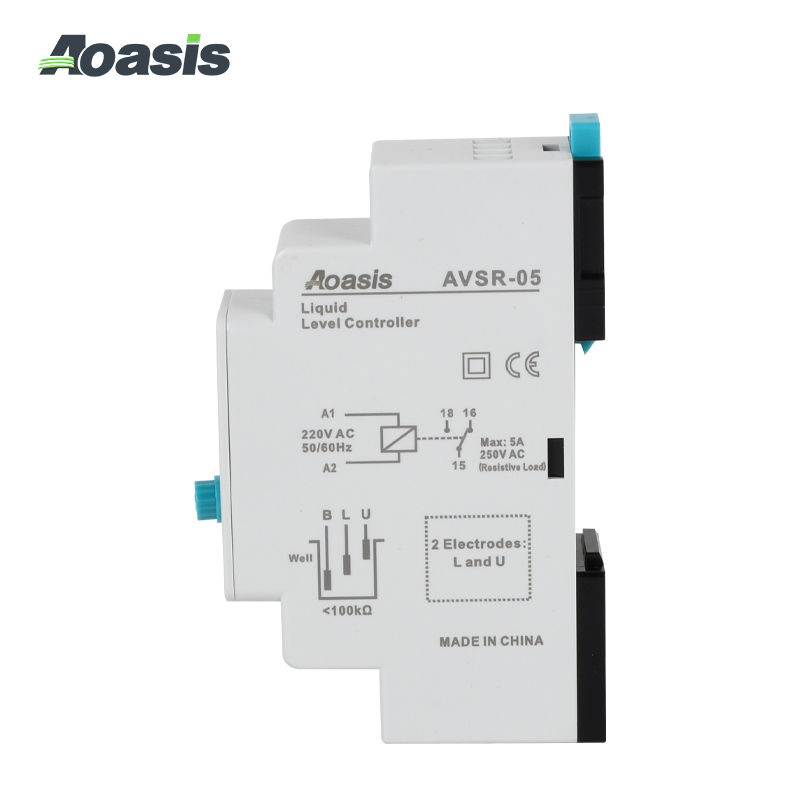

Outline Dimension & Connection Diagrams：
