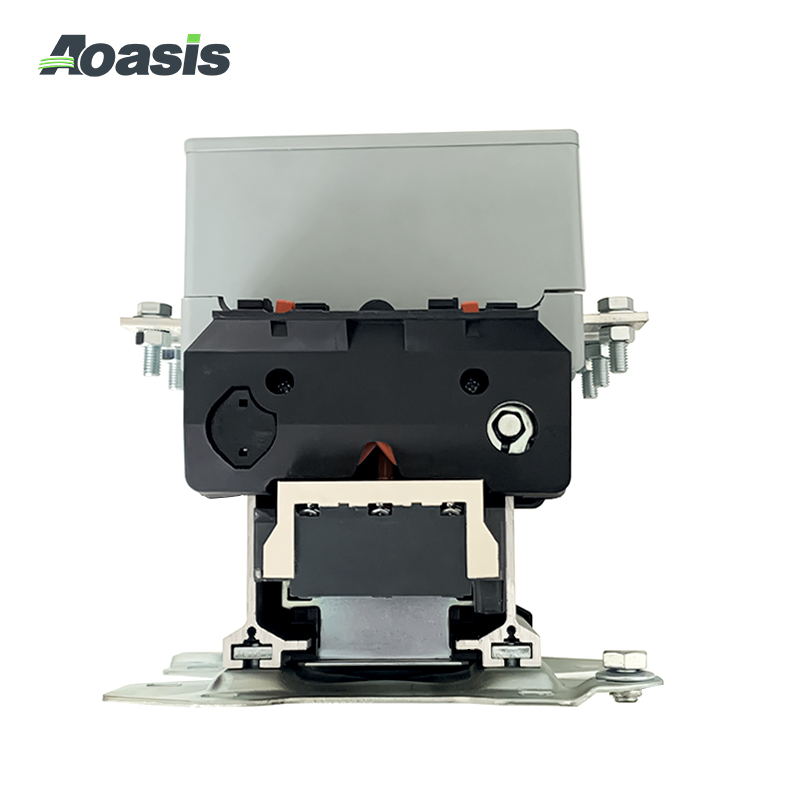

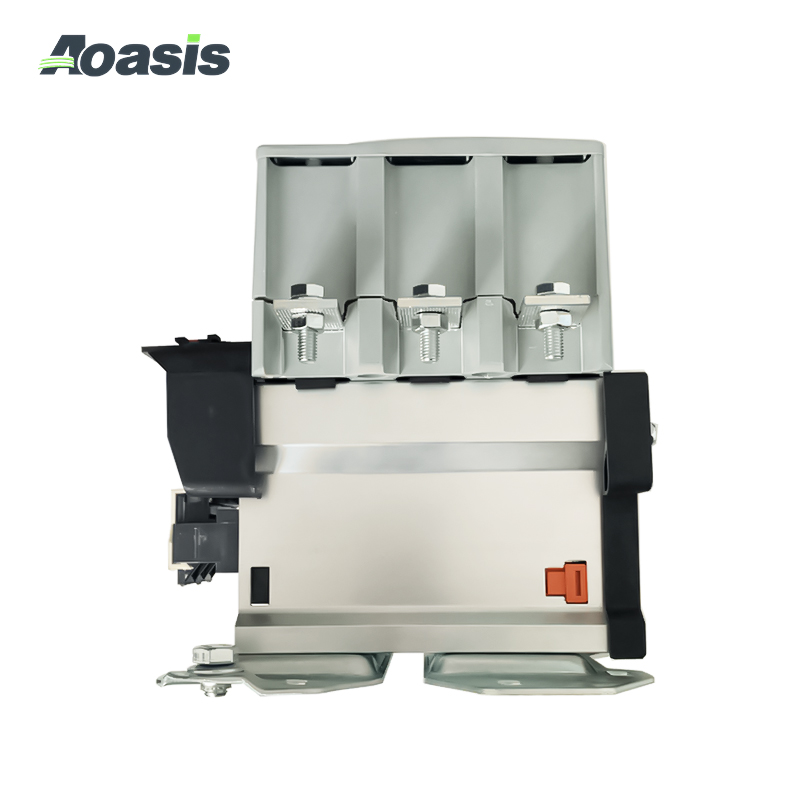

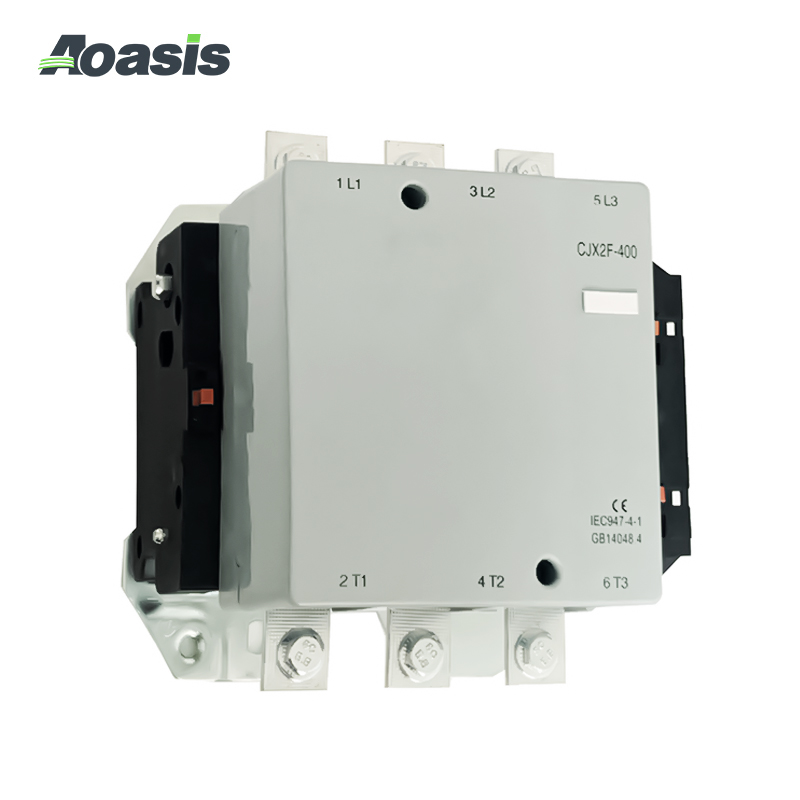

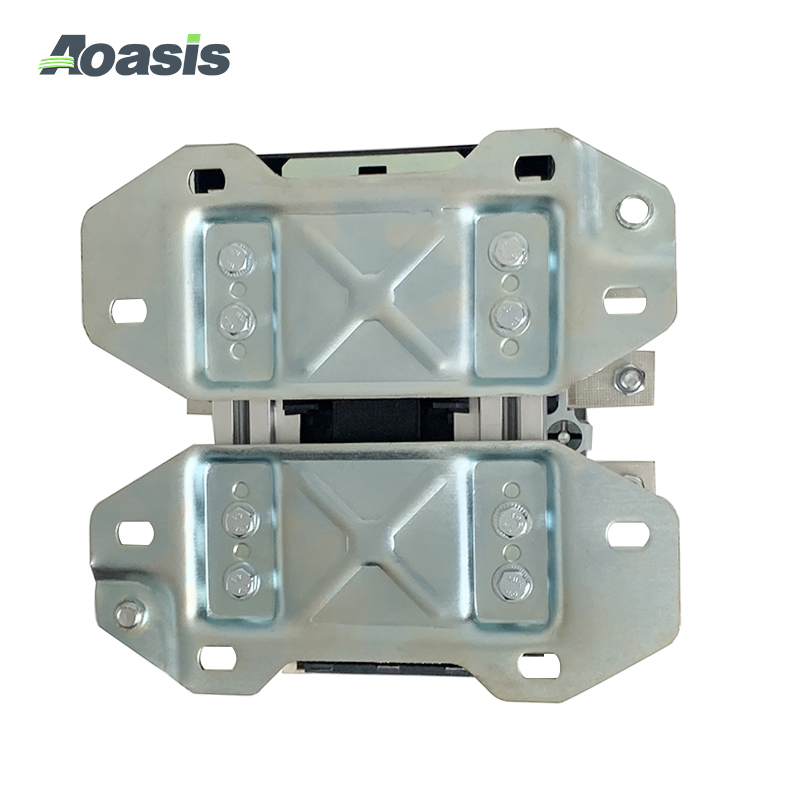

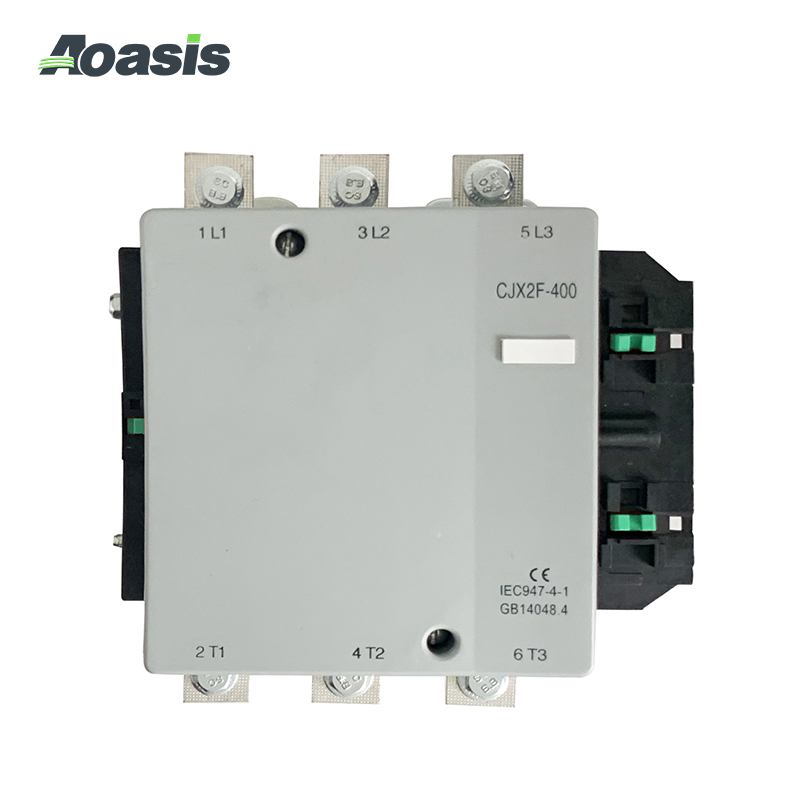

CJX2-F400/500 3P Large Capacitty Contactor

CJX2

Characteristics

CJX2-F series Large CapacityAC contactor is mainly used for AC 50Hz or 60Hz, with working voltage up to660V and working current up to 800A. It is used for long distance connection and breaking current. It is also suitable for frequent start and control of electric motor. It can be combined with auxiliary contact group, air delay head, mechanical interlock, and then form mechanical interlock contactor, star-delta starter, and suitable thermal overload relay. An electromagnetic starter is designed to protect from possibility of operating an overload circuit.

Inquiry

Product Details

Technical parameters:

Type

CJX2-F400

CJX2-F500

CJX2-F630

CJX2-F780

CJX2-F800

Rated Current

Ie max AC-3(Ue≤440V)

400A

500A

630A

780A

800A

Ie max AC-1(θ≤40℃)

500A

700A

1000A

1600A

1000A

Main Contacts(NO)

2、3、4

2、3、4

2、3、4

2、3、4

3

Rated Insulated Voltage(Ui)

1000V

1000V

1000V

1000V

1000V

Rated Impulse Withstand Voltage

8kV

8kV

8kV

8kV

8kV

Rated Operational Voltage (Ue)max

1000V

1000V

1000V

1000V

1000V

Standards-compliant

IEC60947-4-1, GB14048.4, EN60947-4-1

Conventional Thermal Current Ith(θ≤40℃)

500A

700A

1000A

1600A

1000A

Operation Frequency(times/h)

AC-1，AC-2，AC-3

600

600

600

600

600

AC-4

300

300

300

300

300

Rated Power(AC-3)

220/240V

110kW

147kW

200kW

220kW

220kW

380/400V

200kW

250kW

335kW

400kW

400kW

415V

220kW

280kW

375kW

425kW

425kW

440V

250kW

295kW

400kW

425kW

425kW

500V

257kW

355kW

400kW

450kW

450kW

660/690V

280kW

335kW

450kW

475kW

475kW

1000V

185kW

335kW

450kW

450kW

450kW

Connection/Wiring



Operation Voltage

(θ≤55℃)

Number of Lines

Line Size(mm2)

2

30×5

2

40×5

2

60×5

2

100×5

2

60×5

Cable with Splicing(mm2)

2×150

2×240

-

-

-

Cable with Connector(mm2)

-

-

-

-

-

Screw Diameter

Φ10

Φ10

Φ12

Φ12

Φ12

Tightening Torque(N.m)

35

35

58

58

58

Equipped With Fuse Protector (SCPD)

Type

RT16-3

800A

RT16-3

1000A

RT16-3

1250A

RT16-3

1600A

RT16-3

2500A


Dimensions(mm) :

CJX2-F400/4004/500/5004


CJX2-F
 a
 P
 Q
 Q1 S
 φ
 f
 b
 b1 M N C L G G1 H φ1
 Y X1
500V≤
 >500V
400 213 48 43 74 25 M10 151 206 209 181 158 219 145 80(66-102) 170(156-192) 180 8.5 19.5 15 20
4004 261 48 43 74 25 M10 151 206 209 181 158 219 145 80(66-102)
 170(156-192)
 180
 8.5
 67.5 15
 20
500 233 50 46 77 30 M10 169 238 209 208 172 232 146 80(66-102)
 170(156-192)
 180
 8.5
 39.5 15
 20
5004 288 50 46 77 30 M10 169 238 209 208 172 232 146 80(66-102)
 170(156-192)
 180
 8.5
 39.5 15
 20
