Type and Signification:
Technical parameters:
|
Type |
AC Contactor |

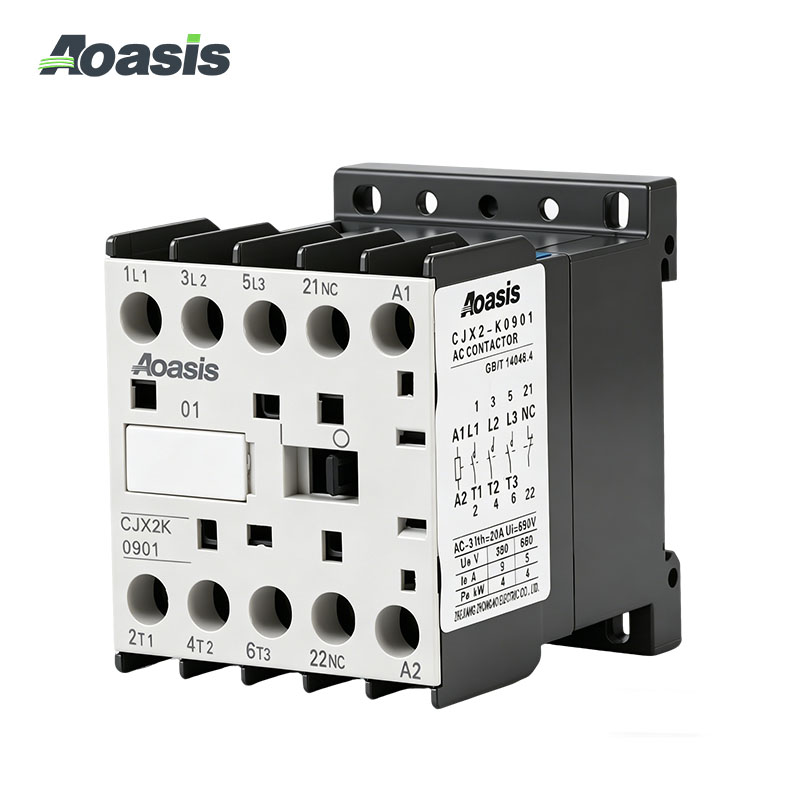

CJX2-K06 |
CJX2-K09 |
CJX2-K12 |
||
|
DC Contactor |
CJX2-K06Z |
CJX2-K09Z |
CJX2-K12Z |
|||
|
Reversing Contactor |
AC |
CJX2-K06N |
CJX2-K09N |
CJX2-K12N |
||
| DC |
CJX2-K06ZN |
CJX2-K09ZN |
CJX2-K12ZN |
|||
|
Rated Power kW/HP(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
1.5/2 |
2.2/3 |
3/4 |
||
|
380-440V |
2.2/3 |
4/5.5 |
5.5/7.5 |
|||
|
500-550V |
3/4 |
4/5.5 |
4/5.5 |
|||
|
660-690V |
3/4 |
4/5.5 |
4/5.5 |
|||
|
Rated Current A(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
7 |
9 |
12 |
||
|
380-440V |
6 |
9 |
12 |
|||
|
500-550V |
5 |
6 |
7 |
|||
|
660-690V |
4 |
5 |
5 |
|||
|
Conventional Thermal Current Ith:(A) |
20 |
20 |
20 |
|||
|
Rated Insulated Voltage Ui:(V) |
690 |
|||||
|
Auxiliary Contact AC-15 |
Contact Arrangement |
Standard |
1NO |
|||
|
Special |
--- |
|||||
|
Rated Current A(AC-15) IEC60947-5-1 GB14048.5 |
200-240V |
1.6 |
||||
|
380-440V |
0.95 |
|||||
|
Conventional Thermal Current Ith:(A) |
16 |
|||||
|
Electric Life(Million Times) |
1 |
|||||
|
Mechanical Life(Million Times) |
8 | |||||
Main parameter and technical characteristic:
Main specifications of contactor:
•Current class: 6A, 9A.
•Coil rated voltage frequency:AC 50HZ , 60 HZ ,50HZ/60 HZ .
•Coil rated voltage :AC 24V, 48V, 110V, 127V, 220V, 380V etc.
•Pole:3P,4P.
•Main technical performance indexes of contactor(referto the following table).
•Performance characteristic: Pull-in voltage (85% to 110%) US, release voltage: (20% to 75%) US.
•A tripole contactor has a set of normally open or normally close auxiliary contacts.
Outline and installation Dimensions:
CJX2-K,CJX2-KZ
CJX2-KN,CJX2-KZN
