CJX2N-D09/D12/D18 AC Contactor

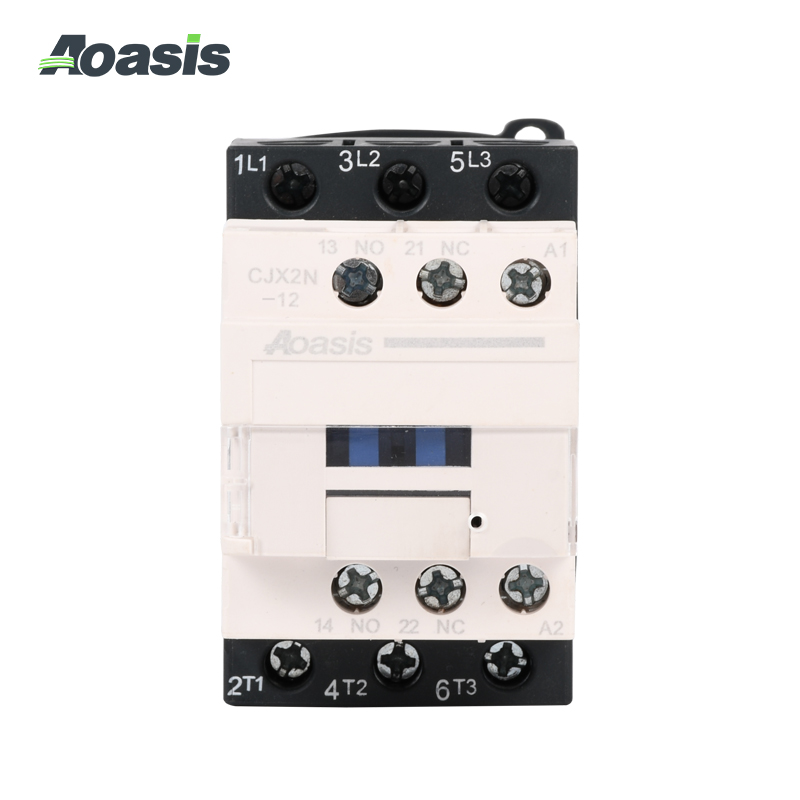

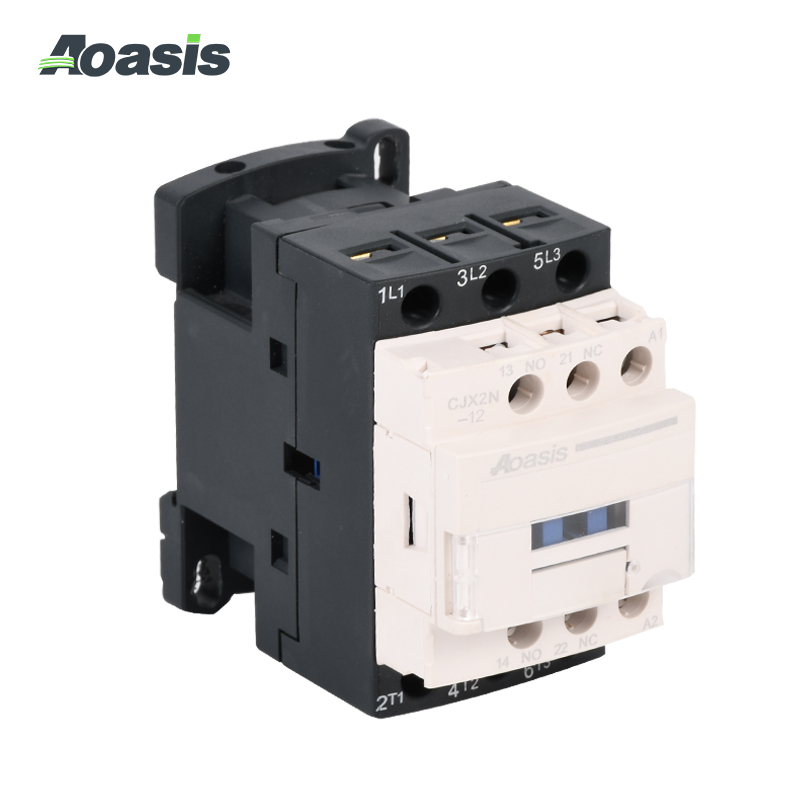

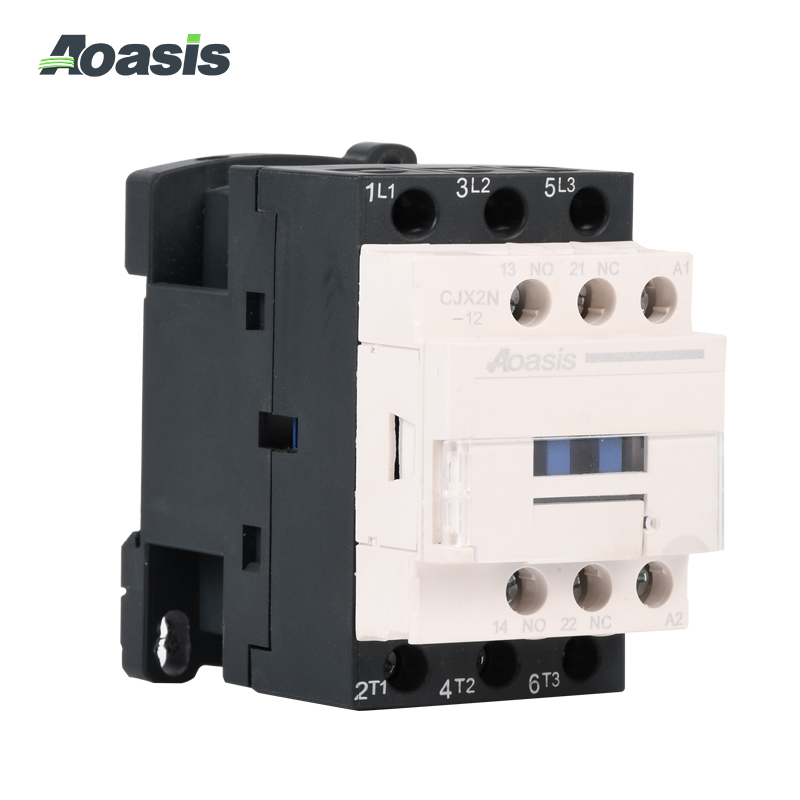

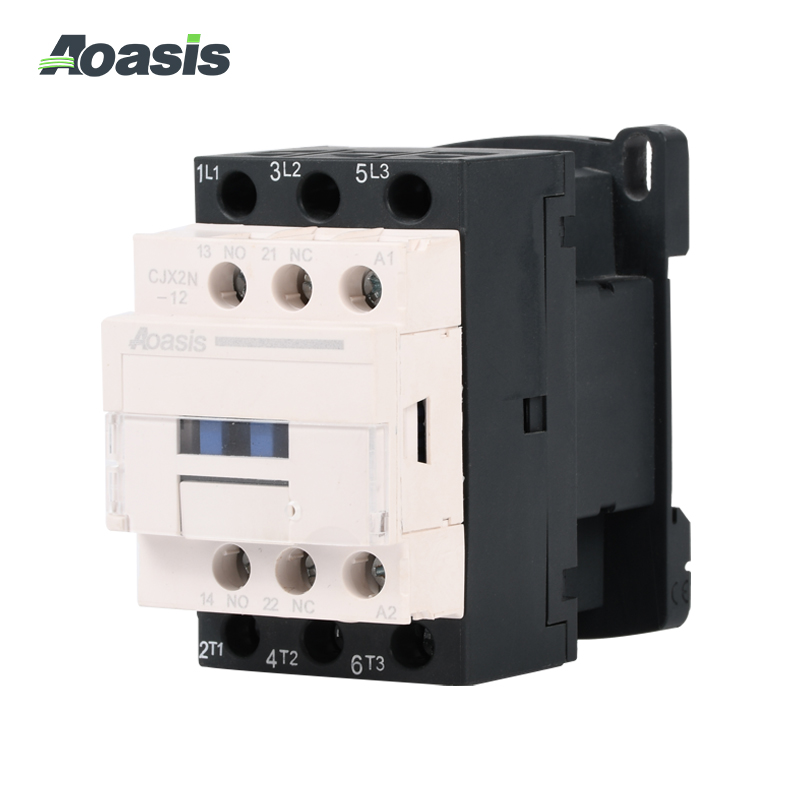

CJX2N-D AC Contactor

Characteristics

CJX2N series AC contactor is suitable for working voltage AC 50Hz or 60Hz, working voltage up to 660V, current up to 95A circuit, for remote connecting and breaking circuit and frequent start. The AC motor is controlled and can be plugged into the LRD thermal overload relay to form a motor starter.

Inquiry

Product Details

Video

Technical Parameters:

Type
 CJX2N-09
 CJX2N-12
 CJX2N-18
 CJX2N-25
 CJX2N-32
 CJX2N-38

Rated Power

kW/HP(AC-3)

IEC60947-4-1

GB14048.4


200-240V
 2.2/3
 3/4
 4/5.5
 5.5/7.5
 7.5/10
 18.5/25
380-440V
 4/5.5
 5.5/7.5
 7.5/10
 11/15
 15/20
 18.5/25
500-550V
 5/7
 7.5/10
 10/12
 15/20
 18.5/25
 18.5/25

Rated Current A(AC-3)

IEC60947-4-1

GB14048.4


200-240V
 11
 15
 22 30 40 45
380-440V
 9 12 18 25 32 38
380-440V
 7 9 12 18 21 21
Conventional Thermal Current lth:(A)
 20 25 32 40 50 50
Rated Insulated Voltage Ui:(V)
 690

Auxiliary

Contact

AC-15

Contact

Arrangement

Standard
 1NO+1NC
Special
 ----

Rated Current A(AC-15)

IEC60947-5-1

GB14048.5

200-240V
 1.6
380-440V
 0.95
Conventional Thermal Current lth:(A)
 16
Electric Life(Million Times)(AC-3)
 1
Mechanical Life(Million Times)
 5


Circuits Characteristic and Terminal Connection:

Connection Circuits
 CJX2N-09
 CJX2N-12
 CJX2N-18
 CJX2N-25
 CJX2N-32
 CJX2N-38
Coil Voltage(V)

AC

50Hz/60Hz

24，48，110，220/230，380/400，420/440
Acting Range
 Attraction(Hot)
 （85%～110%）Us；+40℃
Release(Cold)
 AC:(20%～75%）Us,DC:(10%～75%）Us;-5℃
Installation
 35mm DIN Rail or Screw(M4)
Connection
 Main Contact

Screw(M3.5)Line-Pressed Teminal

Wire：1~4m㎡


Screw(M4)Line-Pressed Teminal

Wire：1.25～5.5m㎡


Aux.Contact/Coil
 Screw(M3.5)Line-Pressed Teminal

External Dimensions(mm) H(height):
