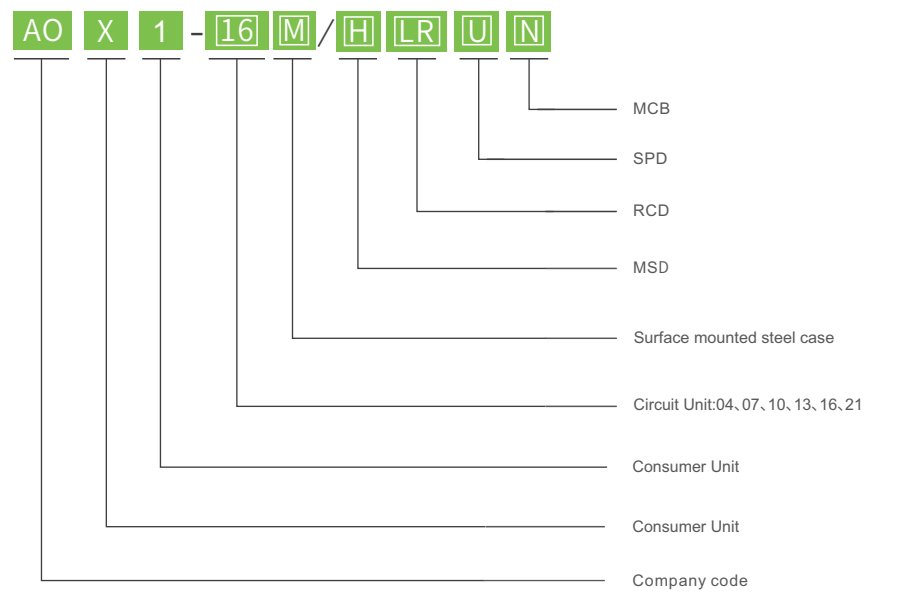

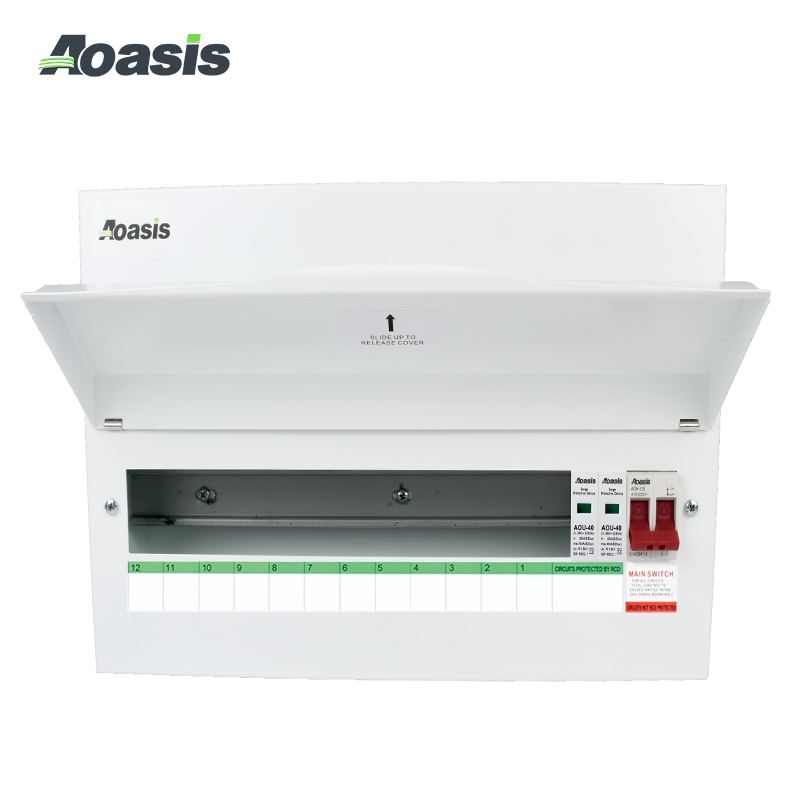

Product Selection：
Technical Parameters：
|
Product Model |
Main Switch Configuration |
Available Loop Element |
|||
|
Miniature Switch Disconnecter |
Quantity |
Residual Current Divice |
Quantity |
||
|
AOX1-07M/HU |
AOH-125 100A |
1 |
AOUE2 20R 2P 275V |
1 |
3 |
|
AOX1-10M/HU |
AOH-125 100A |
1 |
AOUE2 20R 2P 275V |
1 |
6 |
|
AOX1-13M/HU |
AOH-125 100A |
1 |
AOUE2 20R 2P 275V |
1 |
9 |
|
AOX1-16M/HU |
AOH-125 100A |
1 |
AOUE2 20R 2P 275V |
1 |
12 |
|
AOX1-21M/HU |
AOH-125 100A |
1 |
AOUE2 20R 2P 275V |
1 |
17 |
Optional matching line protection products:
|
Product Name |
Product Model |
Current Specifications |
|
Miniature Switch Disconnecter(MSD) |
AOH-125 |
80A、100A、125A |
|
Residual Current Device (RCD) |
AOLR-100 |
32A、40A、63A、80A、100 |
|
Miniature Circuit Breaker (MCB) |
AON1-63(6kA) |
2A、4A、6A、10A、16A、20A、25A、32A、40A、50A、63A |
|
Surge Protection Device (SPD) |
AOUE2 20R 2P 275V |
Max. Discharge Current:40KA Max. Permissible Strength of Backup Fuse:125A gL/gG |
Outline Overall and Installation Dimensions (mm)：
AOX1-04M
AOX1-07~21M
|
Product Model |
Circuit Unit |
Width（B） |
Mounting Dimension（E） |
|
AOX1-07M |
7 |
188 |
138 |
|
AOX1-10M |
10 |
241 |
160 |
|
AOX1-13M |
13 |
292 |
210 |
|
AOX1-16M |
16 |
343 |
260.4 |
|
AOX-21M |
21 |
438 |
356 |
