Technical Parameters：
|
Type |

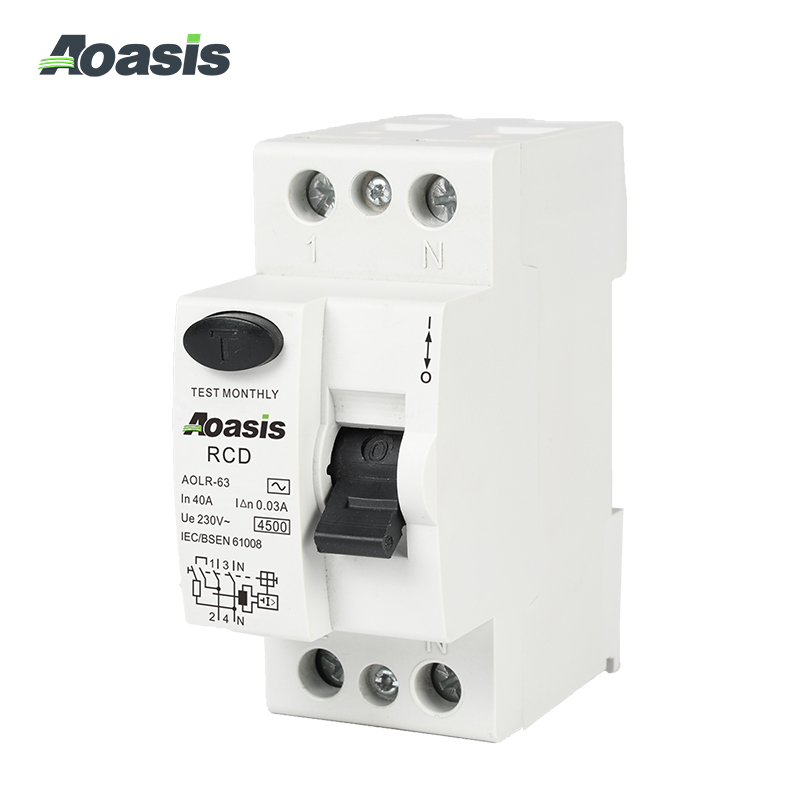

AOLR-63 |
|
Standard |
IEC61009-1,GB16917.1 IEC61008-1 GB16916.1 |
|
Functions |
Leakage Protection, Isolation function |
|
Frame current(A) |
63 |
|
Pole |
2P(1P+N)、4P(3P+N) |
|
Rated Current(A) |
16,20,25,32,40,63 |
|
Rated Voltage(V) |
AC230V(2P) AC230V/400V(4P) |
|
Residual Current Characteristics |
500V |
|
Rated impulse withstand voltage(kV) |
4 |
|
Rated residual working current(mA) |
30、100，300 |
|
Residual current characteristics |
A型、AC型 |
|
Rated short-circuilt breaking capacity |
4.5kA、6kA |
|
Rated ultimate short-circuit breaking capacity |
4.5kA、6kA |
|
Rated operating shart-circuilt breaking capacity |
4.5kA、6kA |
|
Max.breaking capacity at rated residual current |
0.1S |
|
Trip curve |
—— |
|
Release Form |
Thermomagnetic release |
|
Electrical life |
10000 |
|
Mechanical lfe |
20000 |
|
Pollution grade |
2 |
|
Protection level |
IP20 |
|
Temperature |
-35℃-+70℃ |
|
Aititude |
Do not exceed 2000m |
|
Wiring terminal |
Screw crimping |
|
Max.connection capacity (mm') |
25 |
| Max. ulbmate torque (Nm) | 2.5 |
|
Installation category |
II、III |
|
Instailation method |
TH37-7.5 type DIN rall |
|
Incoming wiring method |
install the wire at the top |
