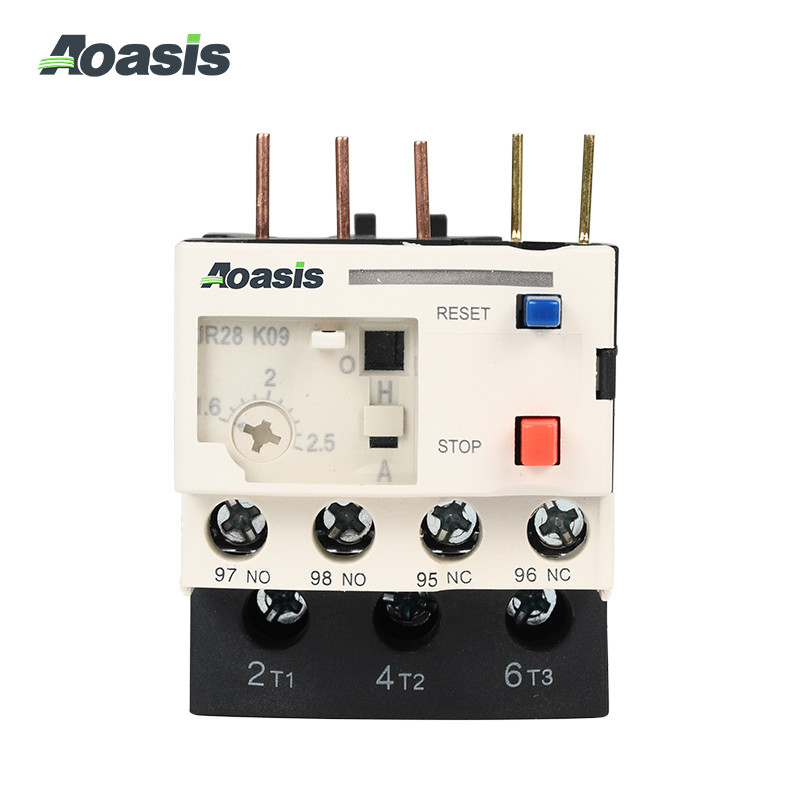

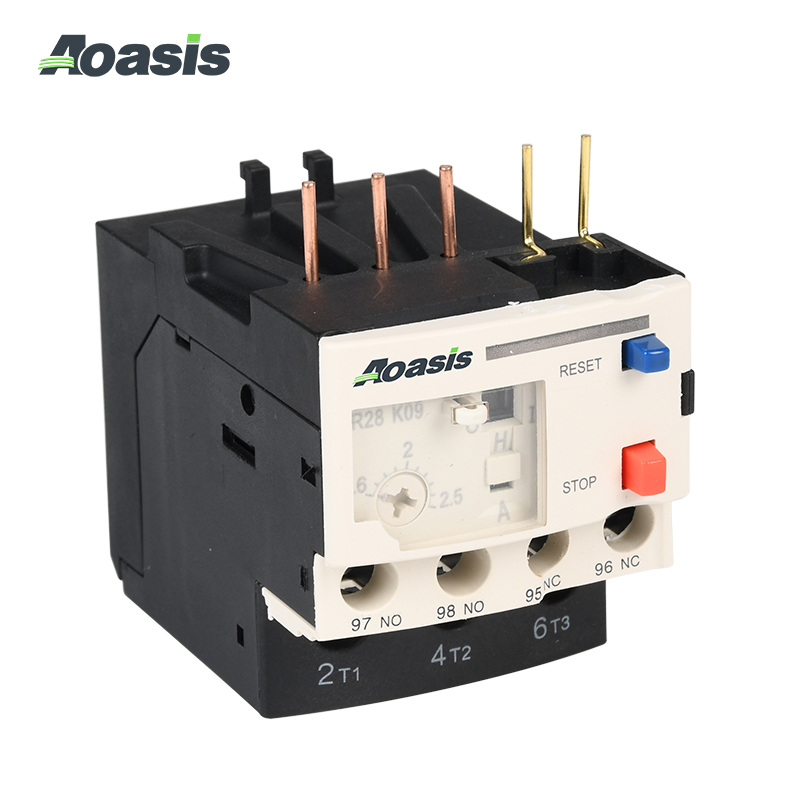

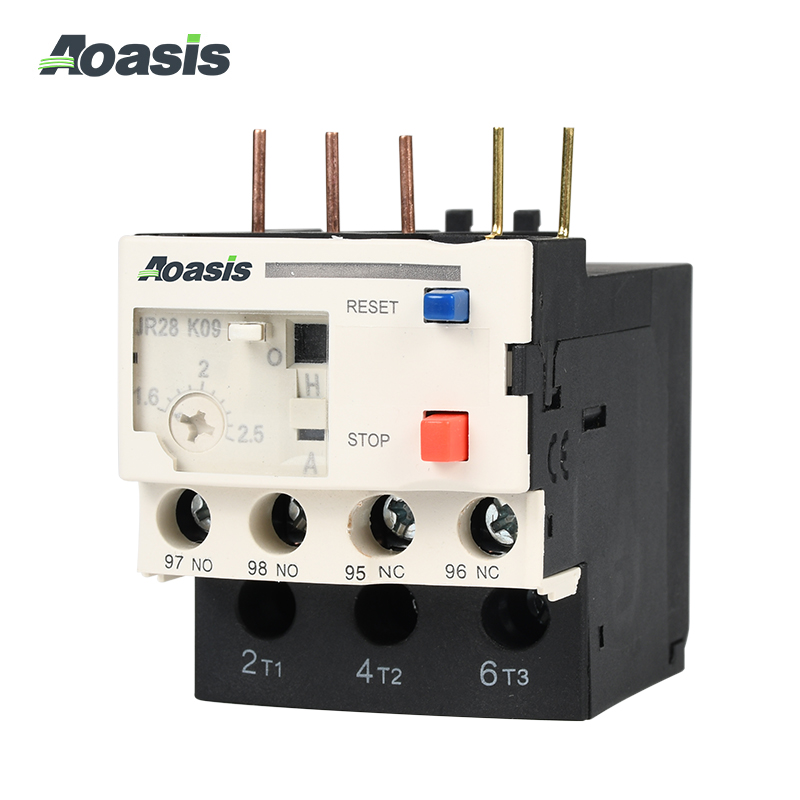

AOR2-K Thermal Overload Relay

AOR2

Characteristics

LRD- series thermal overload relay is used in the power network of AC 50Hz or 60Hzvoltage up to 660V,current of 93A and below, it protectsthe circuit and electromotor from overload, phase loss, long starting duration, and long blocking duration, With the diferental mechanism, temperaturecompensation ,adjustable seting curent,and optional auto or manual resetting, t can be working individually or assembled with CJX2 AC contactor.

Inquiry

Product Details

Technical Parameters:

Type


AOR2-D


AOR2-K12


复位方式Return Mode

手动或自动复位Manual or Auto Return





Current Setting Range

TYPE

Setting Range(A)

TYPE

Setting  Range(A)

Setting Range(A

AOR2-D06 AOR2-D07 AOR2-D08 AOR2-D10 AOR2-D12 AOR2-D14

1-1.6 1.6-2.5

2.5-4

4-6

5.5-8

7-10

AOR2-D16

AOR2-D21

AOR2-D22 AOR2-D32 AOR2-D35

9-13

12-18

16-24

23-32

30-38

0.1-0.16 0.16-0.25 0.25-0.4 0.4-0.63 0.63-1

1-1.6

1.6-2.5

2.5-4

4-6

5.5-8

7-10

9-13

ContactArrangement

1NO+1NC



Model of Matching Contactors

CJX2N-09、12、18、25、32、38

CJX2-K06、K09、K12


Dimensions(mm)：
