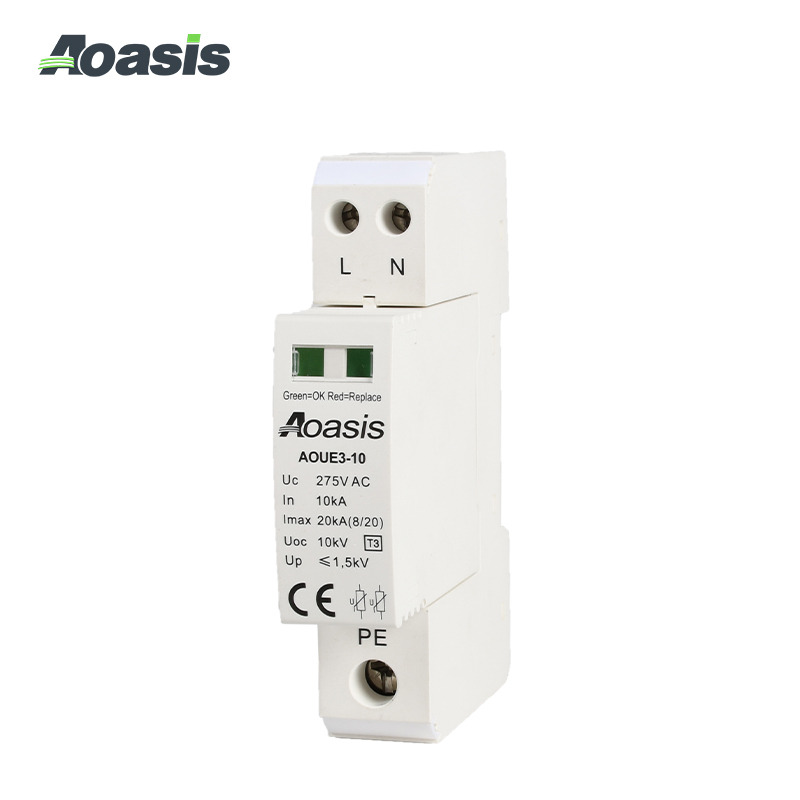

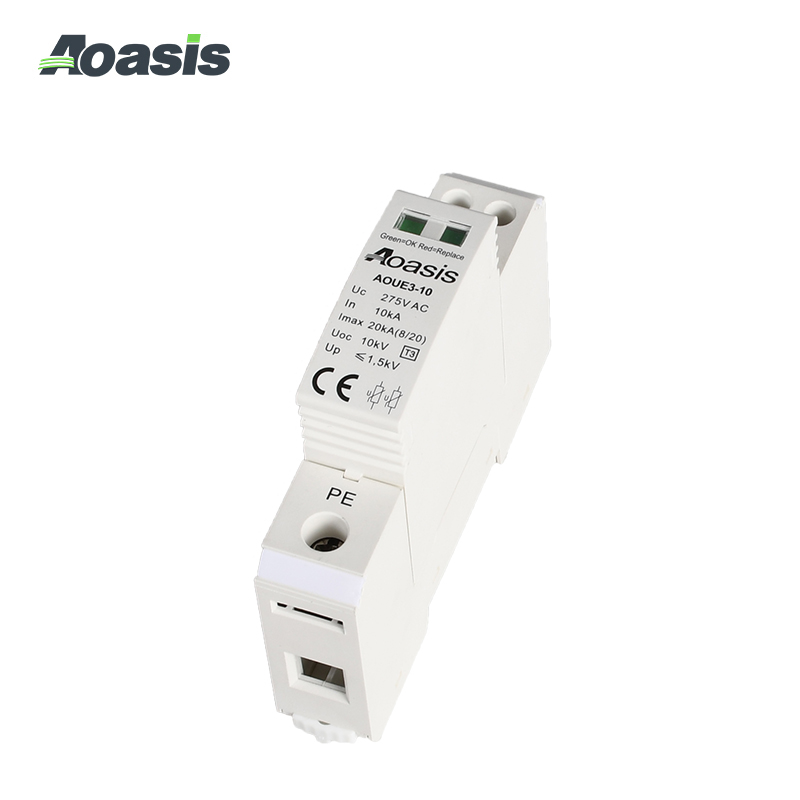

Electrical parameters：
|
Standards |
EN 61643-11 |
|
Category IEC/VDE |
Type3 (ClassIII,D,T3) |
|
Technology |
MOV(Varistor)+GDT(Spark-gap) |
|
Protection function |
Overcurrent |
|
Protection mode |
L→N |
|
L→PE |
|
|
N→PE |
|
|
Connection configuration |
Y |
|
Rated operational voltage Un |
230/400 VAC |
|
Max.continuous operating voltage Uc |
275 VAC |
|
Nominal frequency f |
50/60Hz |
|
Nominal discharge current（8/20）In kA |
5 kA per pole |
|
Max. discharge current（8/20） Imax |
10 kA per pole |
|
Nominalload current IL |
25A |
|
Open circuit voltage Uoc |
10kV |
|
Protection voltage Up at Uoc |
- |
|
L→N |
1.25kV |
|
N→PE |
1.5kV |
|
N-PE follow current interrupting rating lfi |
- |
|
Residual current IPE |
<1mA |
|
Temporary overvoltage Ut (withstand) |
- |
|
L一N,5s |
335V |
|
N→PE,200ms |
440V |
|
MOV voltage of 1mApoint |
387-473V |
|
Max,back-up fuse |
AON-63 C10 MCB |
|
Type of LV system |
TN or TT |
|
SPD overload behaviour mode |
OCM |
|

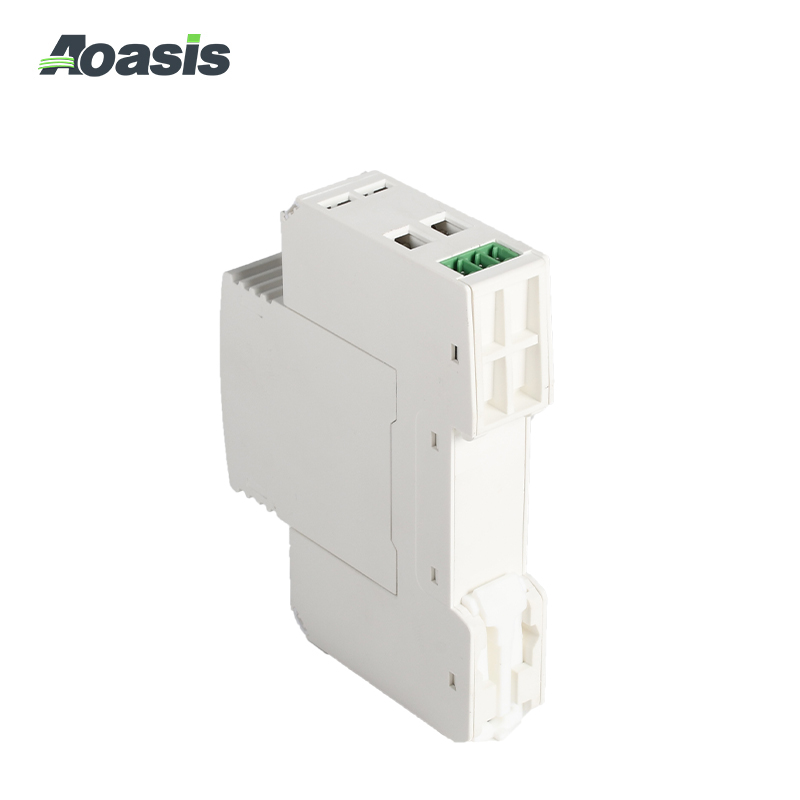

Remote contact(optional) |
1 change over(CO) |
|
Number of ports |
1 |
|
Remote contact op.voltage/current
AC Umax/Imax
DC Umax/Imax
|
250VAC/1A |
|
30V DC/1A |
Mechanical parameters：
|
Operating temperature range |
-40℃~+80℃ |
|
Cross-section of connection wire |
1-4mm² |
|
Torque applied by the screws |
0.3-0.5 Nm |
|
Installation |
35mm Installation DIN-rail, in accordance with:EN 50022/DIN46277-3 |
|
Enclosure material |
thermoplastic (UL94 V-0) |
|
Housing protection level |
IP20 |
|
Installation width |
4 modules ,DIN 43880 |
|
Thermal disconnector |
Yes |
|
Remote alarm contact |
Yes |
|
Additional data for Remote Alarm Contacts |
1.5mm²/0.5Nm, max |
|
Remote alarm contact type |
IS olated form C |
|
Switching capability Un/In |
AC:250V/0.5A DC:250V/0.1A;125V/0.2A;75V/0.5A |
|
Max. Size of connecting wire |
Max.1.5mm²(or# 16 AWG) |
